Removal [12/2021 - ]: Procedure

Refer to REMOVAL [12/2021 - ]

1. Put protective tape around the roof side rail garnish sub-assembly LH.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Protective Tape

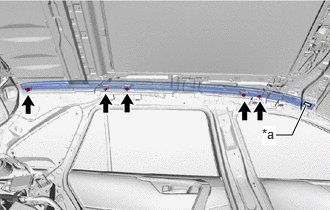

2. except Panoramic Moon Roof:
   1. Remove the 5 nuts.

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      *a	Double-sided Tape

   2. Detach the double-sided tape and remove the roof side rail garnish sub-assembly LH.

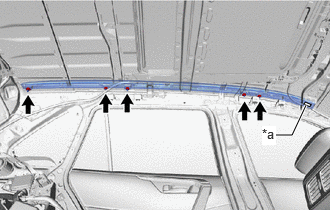

3. for Panoramic Moon Roof:
   1. Remove the 5 nuts.

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      *a	Double-sided Tape

   2. Detach the double-sided tape and remove the roof side rail garnish sub-assembly LH.

HINT:

When removing the No. 1 roof carrier seal, if the double-sided tape is difficult to remove, heat the adhesive of the No. 1 roof carrier seal using a heat light.

Standard

WARNING:

• Do not touch the heat light and heated parts.
• Touching the heat light may result in burns.
• Touching heated parts for a long time may result in burns.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Heated Part
*b	Heat Light

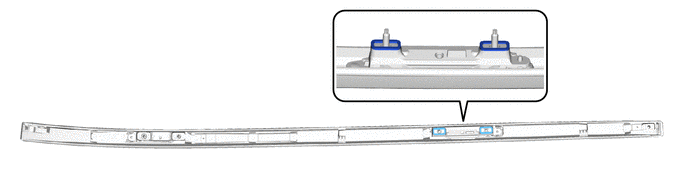

1. Remove the 2 No. 1 roof carrier seals.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

When removing the No. 2 roof carrier seal, if the double-sided tape is difficult to remove, heat the adhesive of the No. 2 roof carrier seal using a heat light.

Standard

WARNING:

• Do not touch the heat light and heated parts.
• Touching the heat light may result in burns.
• Touching heated parts for a long time may result in burns.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Heated Part
*b	Heat Light

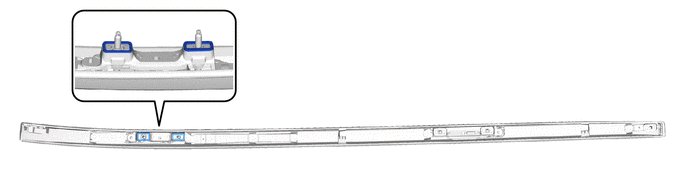

1. Remove the 2 No. 2 roof carrier seals.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

When removing the No. 3 roof carrier seal LH, if the double-sided tape is difficult to remove, heat the adhesive of the No. 3 roof carrier seal LH using a heat light.

Standard

WARNING:

• Do not touch the heat light and heated parts.
• Touching the heat light may result in burns.
• Touching heated parts for a long time may result in burns.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Heated Part
*b	Heat Light

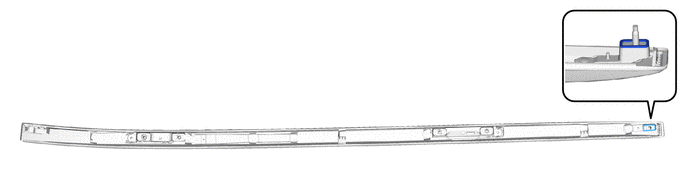

1. Remove the No. 3 roof carrier seal LH.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

When removing the front roof side rail pad LH, if the double-sided tape is difficult to remove, heat the adhesive of the front roof side rail pad LH using a heat light.

Standard

WARNING:

• Do not touch the heat light and heated parts.
• Touching the heat light may result in burns.
• Touching heated parts for a long time may result in burns.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Heated Part
*b	Heat Light

1. Remove the front roof side rail pad LH as shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   	Remove in this Direction (1)
   	Remove in this Direction (2)
