Disassembly [06/2020 - 12/2021]: Procedure

  1. REMOVE ROOF HEADLINING ASSEMBLY

    HINT:

    Perform this procedure only if the roof rack leg is left on the vehicle.

    Refer to REMOVAL [06/2020 - 12/2021]

  2. REMOVE FRONT ROOF RACK LEG LH

    HINT:

    Perform this procedure only if the roof rack leg is left on the vehicle.

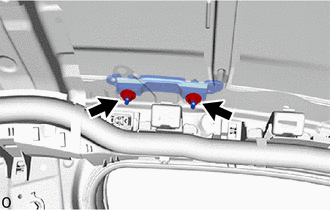

    1. Remove the 2 nuts and front roof rack leg LH.
      GTY1114329Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE REAR ROOF RACK LEG LH

    HINT:

    Perform this procedure only if the roof rack leg is left on the vehicle.

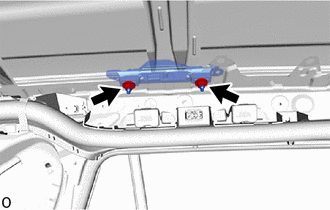

    1. Remove the 2 nuts and rear roof rack leg LH.
      GTY1118721Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE NO. 2 ROOF CARRIER SEAL

    HINT:

    • Perform this procedure only if the roof rack leg is left on the vehicle.
    • When removing the No. 2 roof carrier seal, if the double-sided tape is difficult to remove, heat the adhesive of the No. 2 roof carrier seal using a heat light.

    Standard

    Item Temperature
    No. 2 Roof Carrier Seal 20 to 30°C (68 to 86°F)
    WARNING:
    • Do not touch the heat light and heated parts.
    • Touching the heat light may result in burns.
    • Touching heated parts for a long time may result in burns.
    GTY749838Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    *a Heated Part
    *b Heat Light
    NOTE:

    Do not heat the No. 2 roof carrier seal excessively.

    1. for Front Roof Rack Leg LH:
      1. Remove the 2 No. 2 roof carrier seals.
        GTY1008222Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. for Rear Roof Rack Leg LH:
      1. Remove the 2 No. 2 roof carrier seals.
        GTY1009544Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE NO. 1 ROOF SIDE GARNISH LID LH

    HINT:

    Perform this procedure only if removing together with the roof rack leg.

    1. Detach the claw and guide and remove the No. 1 roof side garnish lid LH.
      GTY1117268Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE NO. 2 ROOF SIDE GARNISH LID LH

    HINT:

    Perform this procedure only if removing together with the roof rack leg.

    1. Detach the claw and guide and remove the No. 2 roof side garnish lid LH.
      GTY1119328Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE FRONT ROOF RACK LEG LH

    HINT:

    Perform this procedure only if removing together with the roof rack leg.

    1. Remove the bolt.
      GTY1008920Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Detach the clip and guide to remove the front roof rack leg LH.
  8. REMOVE REAR ROOF RACK LEG LH

    HINT:

    Perform this procedure only if removing together with the roof rack leg.

    1. Remove the bolt.
      GTY1010010Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Detach the clip and guide to remove the rear roof rack leg LH.
  9. REMOVE FRONT ROOF SIDE GARNISH PROTECTOR LH (for Panoramic Moon Roof)

    HINT:

    When removing the front roof side garnish protector LH, if the double-sided tape is difficult to remove, heat the adhesive of the front roof side garnish protector LH using a heat light.

    Standard Value

    Part Temperature
    Front Roof Side Garnish Protector LH 20 to 30°C (68 to 86°F)
    WARNING:
    • Do not touch the heat light and heated parts.
    • Touching the heat light may result in burns.
    • Touching heated parts for a long time may result in burns.
    GTY749838Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    *a Heated Part
    *b Heat Light
    NOTE:

    Do not heat the front roof side garnish protector LH excessively.

    1. Remove the front roof side garnish protector LH.
      GTY1114347Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. REMOVE NO. 3 ROOF CARRIER SEAL LH
    1. for Front Roof Rack Leg LH:
      1. Remove the 2 nuts.
        GTY1010020Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Remove the 2 No. 3 roof carrier seals LH.
        GTY1010005Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. for Rear Roof Rack Leg LH:
      1. Remove the 2 nuts.
        GTY1010000Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Remove the 2 No. 3 roof carrier seals LH.
        GTY1010007Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
