Removal [06/2020 - ]: Procedure

  1. REMOVE REAR WHEEL FRONT HOUSE PLATE LH
    1. Remove the screw.

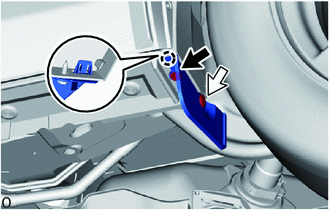

      GTY851164Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Screw
      Clip
    2. Remove the clip.
    3. Detach the claw and remove the rear wheel front house plate LH.
