Removal [06/2020 - ]: Procedure

REMOVE FRONT PILLAR UPPER COVER SUB-ASSEMBLY LH

HINT:

When removing the front pillar upper cover sub-assembly LH, if the double-sided tape is difficult to remove, heat the vehicle body and front pillar upper cover sub-assembly LH using a heat light.

Standard

Item	Temperature
Vehicle Body	40 to 60°C (104 to 140°F)
Front Pillar Upper Cover Sub-assembly LH	20 to 30°C (68 to 86°F)

WARNING:

Do not touch the heat light and heated parts.
Touching the heat light may result in burns.
Touching heated parts for a long time may result in burns.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Heated Part
*b	Heat Light

NOTE:

Do not heat the vehicle body and front pillar upper cover sub-assembly LH excessively.

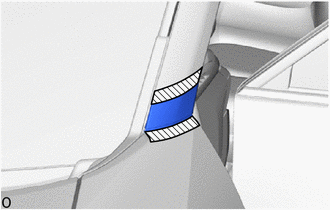

Put protective tape around the front pillar upper cover sub-assembly LH.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Protective Tape

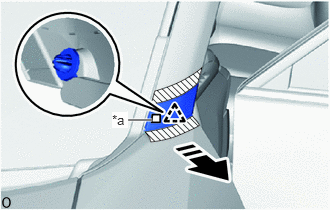

Detach the clip and double-sided tape to remove the front pillar upper cover sub-assembly LH as shown in the illustration.

*a	Double-sided Tape
	Remove in this Direction

NOTE:

The front pillar upper cover sub-assembly LH must not be reused.
