Components [06/2020 - ]

Fig 1: Black Out Tape (For Front Door) Replacement Components With Torque Specifications (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*A	for Driver Side	*B	for Front Passenger Side
*1	FRONT DOOR ASSIST GRIP COVER LH	*2	FRONT DOOR FRONT BELT SEAL LH
*3	FRONT DOOR INNER GLASS WEATHERSTRIP LH	*4	FRONT DOOR INSIDE HANDLE BEZEL LH
*5	FRONT DOOR TRIM BOARD SUB-ASSEMBLY LH	*6	MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY WITH FRONT DOOR ARMREST BASE PANEL
*7	POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH FRONT DOOR ARMREST BASE PANEL	-	-

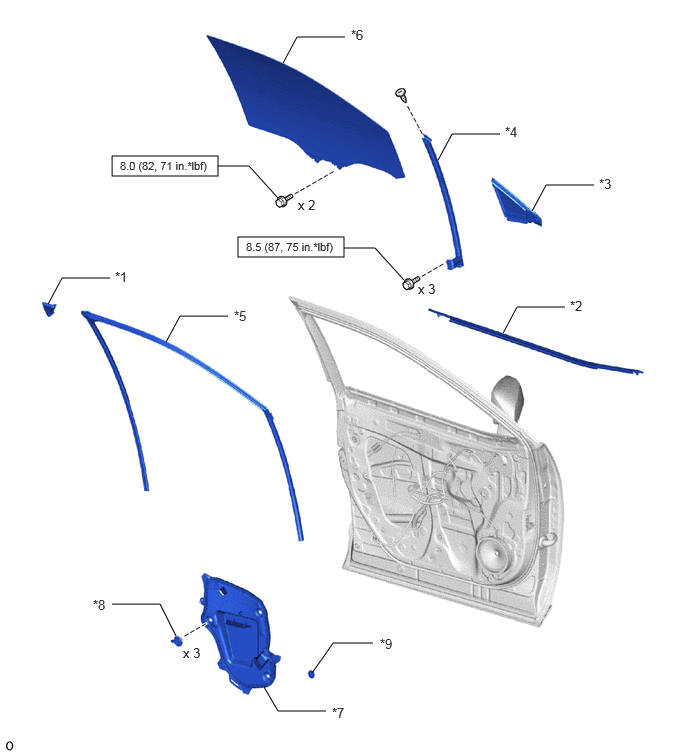

Fig 2: Black Out Tape (For Front Door) Replacement Components With Torque Specifications (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	DOOR FRAME GARNISH LH	*2	FRONT DOOR BELT MOULDING ASSEMBLY LH
*3	FRONT DOOR FIX WINDOW GLASS LH	*4	FRONT DOOR FRONT LOWER FRAME SUB-ASSEMBLY LH
*5	FRONT DOOR GLASS RUN LH	*6	FRONT DOOR GLASS SUB-ASSEMBLY LH
*7	FRONT DOOR SERVICE HOLE COVER LH	*8	SERVICE HOLE COVER CLIP
*9	HOLE PLUG	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	-	-

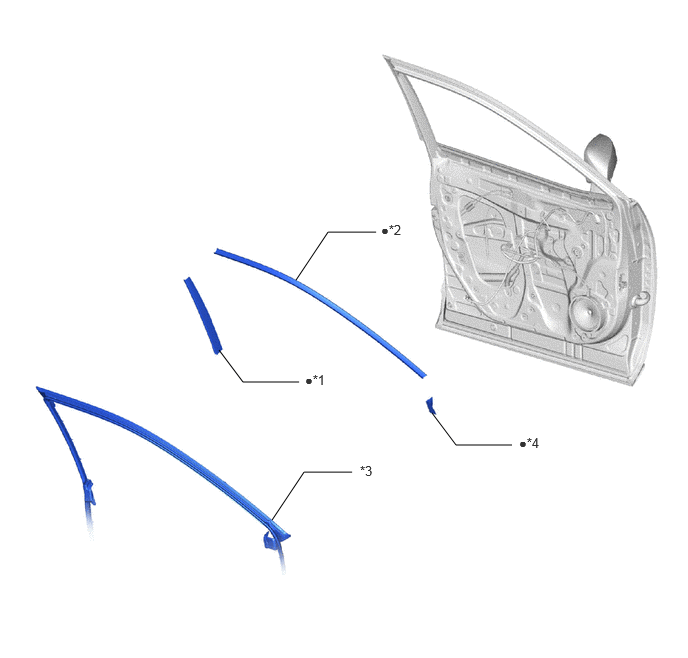

Fig 3: Black Out Tape (For Front Door) Replacement Components (3 Of 3)
