Removal [06/2020 - ]: Procedure

REMOVE BACK DOOR CENTER GARNISH
Refer to PROCEDURE - Step 1
REMOVE BACK DOOR SIDE GARNISH LH
Refer to PROCEDURE - Step 2
REMOVE BACK DOOR SIDE GARNISH RH
HINT:

Use the same procedure as for the LH side.
REMOVE BACK DOOR HANDLE COVER
Refer to PROCEDURE - Step 4
REMOVE BACK DOOR TRIM BOARD ASSEMBLY
Refer to PROCEDURE - Step 5

REMOVE BACK DOOR LOWER OUTSIDE GARNISH SUB-ASSEMBLY

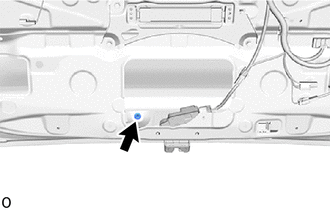

Remove the bolt.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

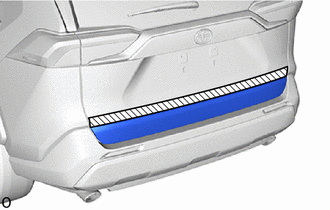

Put protective tape around the back door lower outside garnish sub-assembly.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Protective Tape

Using moulding remover A, detach the clip A.

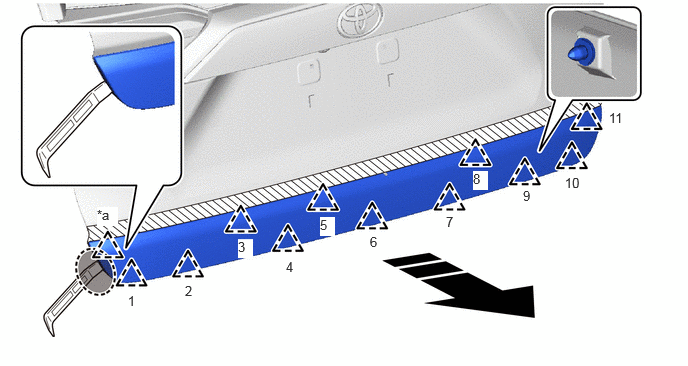

Fig 1: Identifying Back Door Lower Outside Garnish Sub-Assembly With Clip Detaching Sequence

*a	Clip A	-	-
	Place Hands Here		Remove in this Direction

Placing your hand in the gap, pull the back door lower outside garnish sub-assembly to detach clip starting from the left in the order shown in the illustration.
