Disassembly [06/2020 - ]: Procedure

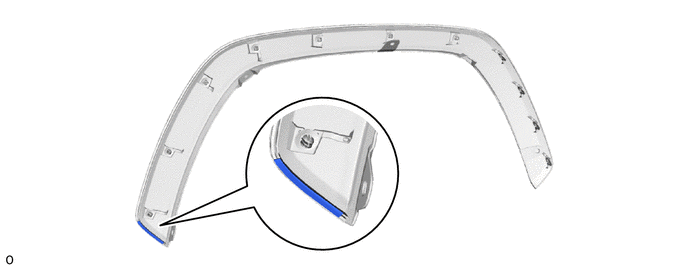

- REMOVE FRONT NO. 1 WHEEL OPENING EXTENSION PAD
HINT:
When removing the front No. 1 wheel opening extension pad, if it is difficult to remove, heat the adhesive of the front fender moulding LH and front No. 1 wheel opening extension pad using a heat light.
Standard
Item Temperature Front Fender Moulding LH 20 to 30°C (68 to 86°F) Front No. 1 Wheel Opening Extension Pad WARNING:- Do not touch the heat light and heated parts.
- Touching the heat light may result in burns.
- Touching heated parts for a long time may result in burns.
*a Heated Part *b Heat Light NOTE:Do not heat front fender moulding LH and front No. 1 wheel opening extension pad excessively.

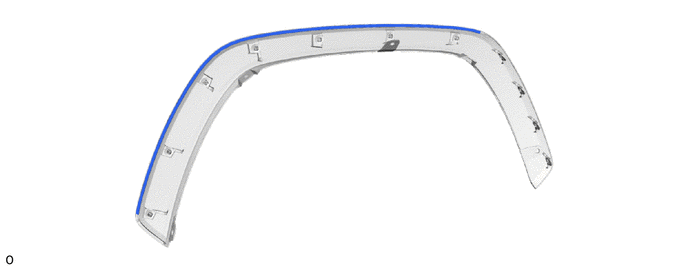

- REMOVE FRONT FENDER OUTSIDE MOULDING PAD LH
HINT:
When removing the front fender outside moulding pad LH, if it is difficult to remove, heat the adhesive of the front fender moulding LH and front fender outside moulding pad LH using a heat light.
Standard
Item Temperature Front Fender Moulding LH 20 to 30°C (68 to 86°F) Front Fender Outside Moulding Pad LH WARNING:- Do not touch the heat light and heated parts.
- Touching the heat light may result in burns.
- Touching heated parts for a long time may result in burns.
*a Heated Part *b Heat Light NOTE:Do not heat front fender moulding LH and front fender outside moulding pad LH excessively.
