Removal [06/2020 - ]: Procedure

REMOVE SIDE MUDGUARD SUB-ASSEMBLY LH

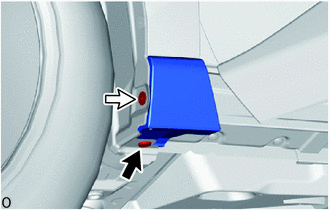

Remove the clip.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

	Clip
	Grommet

Remove the grommet.
NOTE:
If removed, side mudguard sub-assembly LH replace the grommet with a new part.

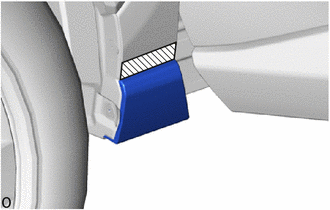

Put protective tape around the side mudguard sub-assembly LH.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Protective Tape

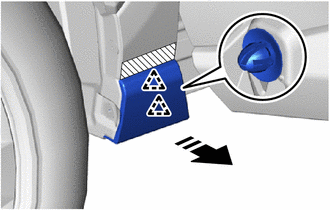

Detach the clip and remove the side mudguard sub-assembly LH.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Remove in this Direction

Remove the 2 clips.

NOTE:

If removed, side mudguard sub-assembly LH replace the clip with a new part.
