Reassembly [06/2020 - ]: Procedure

  1. INSTALL NO. 3 MOULDING TAPE

    HINT:

    When installing the No. 3 moulding tape, heat the side mudguard LH and No. 3 moulding tape using a heat light.

    Standard

    Item Temperature
    Side Mudguard LH 20 to 30°C (68 to 86°F)
    No. 3 Moulding Tape
    WARNING:
    • Do not touch the heat light and heated parts.
    • Touching the heat light may result in burns.
    • Touching heated parts for a long time may result in burns.
    GTY583249Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    *a Heated Part
    *b Heat Light
    NOTE:

    Do not heat the side mudguard LH and No. 3 moulding tape excessively.

    1. When reusing the side mudguard LH:
      1. Using a heat light, heat the side mudguard LH surface.
      2. Remove any remaining double-sided tape from the side mudguard LH.
      3. Wipe off any tape adhesive residue with cleaner.
        NOTE:
        • Installing the No. 3 moulding tape with some double-sided tape remaining may cause poor adhesion. Perform this procedure until sufficiently removed it.
        • Make sure to use a cloth when removing. Using a screwdriver, etc., may cause damage and poor adhesion.
    2. Apply primer to side mudguard LH on the installation area of the No. 3 moulding tape using a brush or felt.
      GTY871256Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Mark-off Line
      Primer
      NOTE:
      • Replace the brush or felt if it is dirty or has become hardened.
      • Keep any painted surface free from primer.
      • If the primer contacts a painted surface, it may leave light primer marks. Therefore, use protective tape when using liquid primer.
      • Do not touch surfaces to which primer has been applied until the No. 3 moulding tape has been attached.
    3. Let the primer dry sufficiently.
      NOTE:

      Do not touch applied surfaces until the primer is dry.

      Recommended drying time

      10 minutes or more (at 23°C (73°F))

    4. Using a heat light, heat the side mudguard LH and a new No. 3 moulding tape.
      NOTE:

      Do not heat the side mudguard LH and No. 3 moulding tape excessively.

    5. Remove the release paper from the No. 3 moulding tape.
      NOTE:

      After removing the peeling paper, do not touch the surface of the tape with your fingers or cotton work gloves.

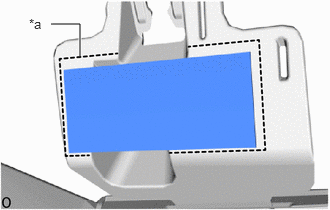

    6. Install the No. 3 moulding tape in the position shown in the illustration.
      GTY866391Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Mark-off Line
      NOTE:

      The application strength of the No. 3 moulding tape will weaken if reapplied. If reapplication is necessary, be sure to replace it with a new one.

      HINT:

      Apply pressure so that it does not lift up from the side mudguard LH.

    7. Remove the release paper from the No. 3 moulding tape.
      NOTE:

      After removing the peeling paper, do not touch the surface of the tape with your fingers or cotton work gloves.

    8. Attach the double-sided tape.
      GTY873217Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
      NOTE:

      The application strength of the No. 3 moulding tape will weaken if reapplied. If reapplication is necessary, be sure to replace it with a new one.

      HINT:

      Apply pressure so that it does not lift up from the side mudguard LH.

  2. INSTALL FRONT WHEEL OPENING EXTENSION PAD LH

    HINT:

    When installing the front wheel opening extension pad LH, heat the side mudguard LH and front wheel opening extension pad LH using a heat light.

    Standard

    Item Temperature
    Side Mudguard LH 20 to 30°C (68 to 86°F)
    Front Wheel Opening Extension Pad LH
    WARNING:
    • Do not touch the heat light and heated parts.
    • Touching the heat light may result in burns.
    • Touching heated parts for a long time may result in burns.
    GTY583249Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    *a Heated Part
    *b Heat Light
    NOTE:

    Do not heat the side mudguard LH and front wheel opening extension pad LH excessively.

    1. When reusing the side mudguard LH:
      1. Using a heat light, heat the side mudguard LH surface.
      2. Remove any remaining double-sided tape from the side mudguard LH.
      3. Wipe off any tape adhesive residue with cleaner.
        NOTE:
        • Installing the side mudguard LH with some double-sided tape remaining may cause poor adhesion. Perform this procedure until sufficiently removed it.
        • Make sure to use a cloth when removing. Using a screwdriver, etc., may cause damage and poor adhesion.
    2. Apply primer to side mudguard LH on the installation area of the front wheel opening extension pad LH using a brush or felt.
      GTY898580Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Mark-off Line
      Primer
      NOTE:
      • Replace the brush or felt if it is dirty or has become hardened.
      • Keep any painted surface free from primer.
      • If the primer contacts a painted surface, it may leave light primer marks. Therefore, use protective tape when using liquid primer.
      • Do not touch surfaces to which primer has been applied until the front wheel opening extension pad LH has been attached.
    3. Let the primer dry sufficiently.
      NOTE:

      Do not touch applied surfaces until the primer is dry.

      Recommended drying time

      10 minutes or more (at 23°C (73°F))

    4. Using a heat light, heat the side mudguard LH and a new front wheel opening extension pad LH.
      NOTE:

      Do not heat the side mudguard LH and front wheel opening extension pad LH excessively.

    5. Remove the release paper from the front wheel opening extension pad LH.
      NOTE:

      After removing the peeling paper, do not touch the surface of the tape with your fingers or cotton work gloves.

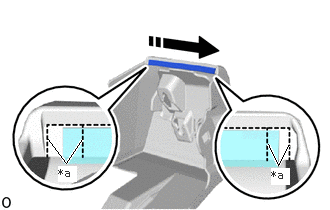

    6. Install the front wheel opening extension pad LH with the mark-off line of the side mudguard LH.
      GTY908391Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Mark-off Line
      Install in this Direction
      NOTE:

      The application strength of the front wheel opening extension pad LH will weaken if reapplied. If reapplication is necessary, be sure to replace it with a new one.

      HINT:

      • Make sure that the end of the front wheel opening extension pad LH is between the mark-off lines.
      • Apply pressure so that it does not lift up from the side mudguard LH.
