Removal [06/2020 - ]: Procedure

REMOVE ROOF SIDE RAIL GARNISH SUB-ASSEMBLY LH
Refer to REMOVAL [06/2020 - 12/2021] , or refer to REMOVAL [12/2021 - ]

REMOVE REAR ROOF DRIP SIDE FINISH MOULDING LH

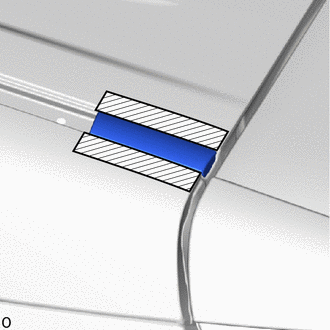

Put protective tape around the rear roof drip side finish moulding LH.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Protective Tape

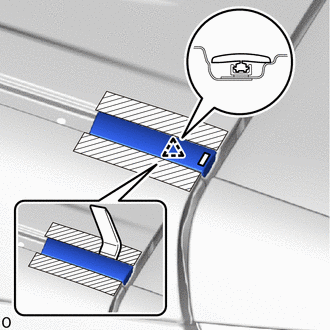

Using moulding remover D, detach the clip and remove the rear roof drip side finish moulding LH.

NOTE:

Do not remove the roof drip side finish moulding clip.
If a roof drip side finish moulding clip is damaged or falls off, replace it with a new one.
