Removal [06/2020 - ]: Procedure

Refer to REMOVAL [06/2020 - ]

Refer to REMOVAL [06/2020 - ]

Refer to REMOVAL [06/2020 - ]

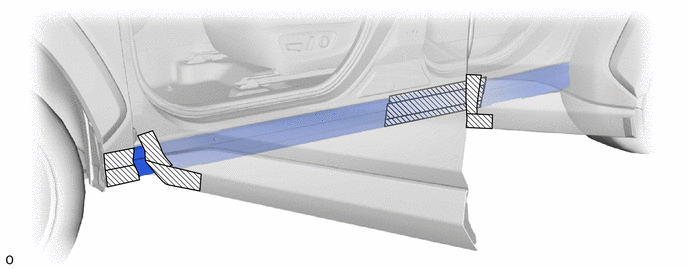

1. Put protective tape around the body rocker panel moulding assembly LH.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Protective Tape

   -

   -

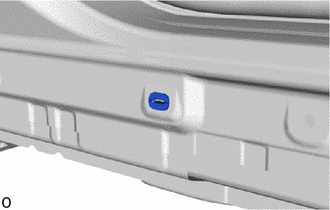

2. Remove the 2 screws.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

3. Remove the 2 clips labeled A.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Clip A	*b	Clip B
   	Insert Screwdriver Here		Insert Direction
   	Rotation Direction		Remove in this Direction
   	Protective Tape	-	-

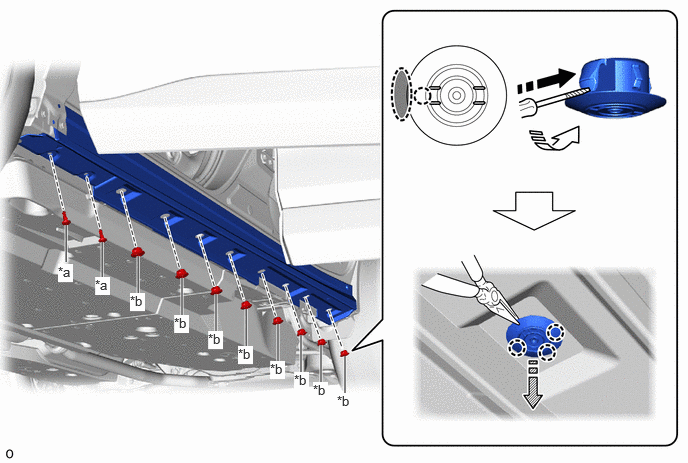

4. Remove the 8 clips labeled B.
   1. Using a screwdriver with its tip wrapped with protective tape, detach the claw as shown in the illustration.
   2. Using needle-nose pliers, detach the claw to remove the clip B as shown in the illustration

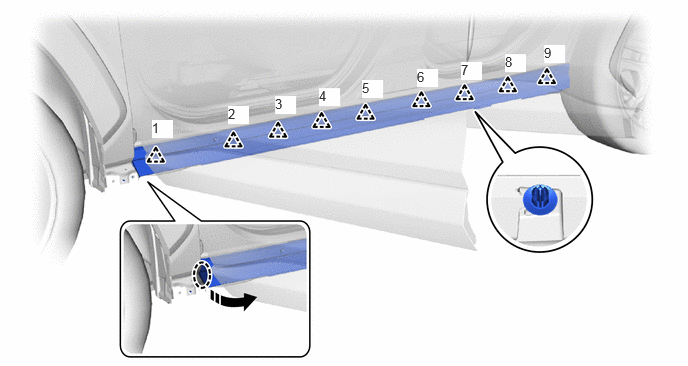

5. Detach the clip and remove the body rocker panel moulding assembly LH in the order shown in the illustration.
   Fig 1: Rocker Panel Moulding Clip Removal Sequence

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Place Hand Here

   Remove in this Direction

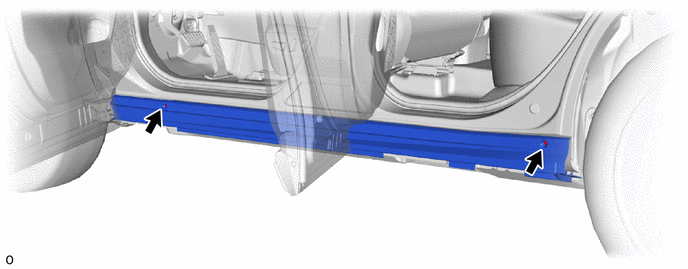

6. Using a clip remover, remove the grommet.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   HINT:

   Use the same procedure for both grommets.
