Components [06/2020 - ]

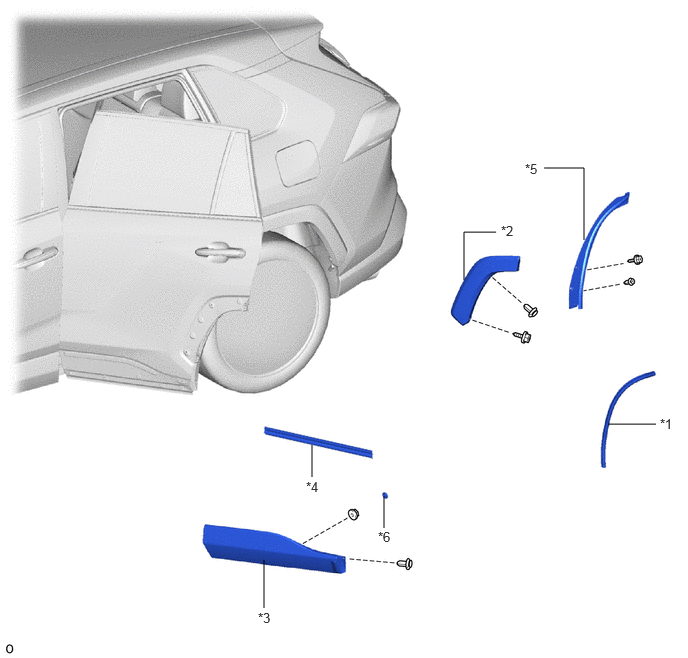

Fig 1: Rear Door Outside Moulding Replacement Components (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	NO. 2 ACCESS PANEL WEATHERSTRIP LH	*2	OUTSIDE MOULDING SET LH
*3	REAR DOOR LOWER OUTSIDE MOULDING SUB-ASSEMBLY LH	*4	REAR DOOR NO. 5 WEATHERSTRIP LH
*5	REAR DOOR PANEL PROTECTOR LH	*6	HOLE PLUG

Fig 2: Rear Door Outside Moulding Replacement Components (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	NO. 1 OUTSIDE MOULDING RETAINER	*2	REAR DOOR UPPER OUTSIDE MOULDING PAD
*3	REAR DOOR LOWER OUTSIDE MOULDING LH	-	-
•	Non-reusable part	-	-

Fig 3: Rear Door Outside Moulding Replacement Components (3 Of 3)

*1	REAR DOOR MOULDING PAD LH	*2	REAR DOOR REAR OUTSIDE MOULDING PAD
*3	REAR DOOR REAR UPPER OUTSIDE MOULDING LH	-	-
•	Non-reusable part	-	-
