Removal [06/2020 - 12/2021]: Procedure

PRECAUTION
NOTE:
After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal.

Refer to BEFORE DISCONNECTING BATTERY [06/2020 - 10/2022]
DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL
Refer to REMOVAL [06/2020 - 12/2021]
REMOVE REAR DOOR INSIDE HANDLE BEZEL LH
Refer to PROCEDURE - Step 3
REMOVE DOOR ASSIST GRIP COVER LH
Refer to PROCEDURE - Step 4
REMOVE REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH REAR DOOR ARMREST BASE PANEL
Refer to PROCEDURE - Step 5
REMOVE REAR DOOR TRIM BOARD SUB-ASSEMBLY LH
Refer to PROCEDURE - Step 8
REMOVE REAR DOOR INNER GLASS WEATHERSTRIP LH
Refer to PROCEDURE - Step 10
REMOVE REAR DOOR REAR BELT SEAL LH
Refer to PROCEDURE - Step 12
REMOVE REAR DOOR SERVICE HOLE COVER LH
Refer to PROCEDURE - Step 14
REMOVE REAR DOOR FRAME GARNISH LH
Refer to PROCEDURE - Step 15
DISCONNECT REAR DOOR GLASS RUN LH
Refer to PROCEDURE - Step 16
REMOVE REAR DOOR WINDOW DIVISION BAR SUB-ASSEMBLY LH
Refer to PROCEDURE - Step 17
REMOVE REAR DOOR QUARTER WINDOW GLASS LH
Refer to PROCEDURE - Step 19
REMOVE REAR DOOR GLASS SUB-ASSEMBLY LH
Refer to PROCEDURE - Step 21

REMOVE REAR DOOR BELT MOULDING ASSEMBLY LH

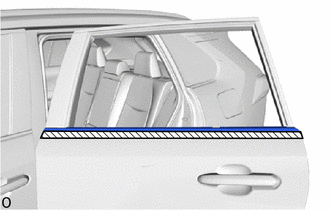

Put protective tape around the rear door belt moulding assembly LH.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Protective Tape

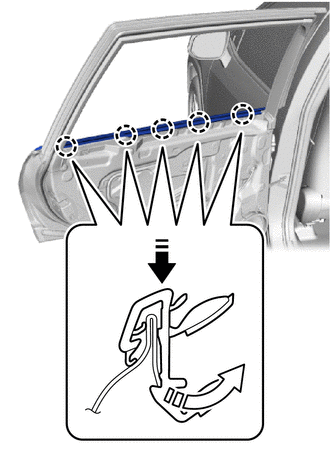

While pressing the rear door belt moulding assembly LH, pull the edge and detach the claw as shown in the illustration.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

	Remove in this Direction (1)
	Remove in this Direction (2)

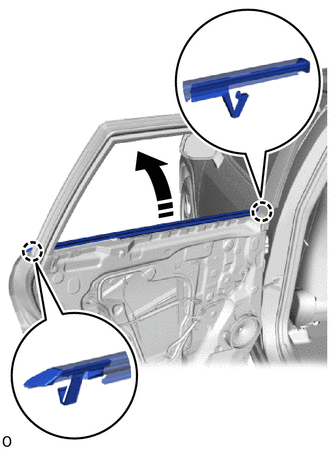

Detach the claw to remove the rear door belt moulding assembly LH.

Remove in this Direction
