Removal [06/2020 - 12/2021]: Procedure

  1. PRECAUTION
    WARNING:
    GTY868875Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    Be sure to read precaution thoroughly before servicing.

    Refer to PRECAUTION [06/2020 - 10/2022]

    NOTE:

    After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal.

    Refer to BEFORE DISCONNECTING BATTERY [06/2020 - 10/2022]

  2. DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL

    Refer to REMOVAL [06/2020 - 12/2021]

    WARNING:
    GTY581108Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    • Wait at least 60 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.
    • If the airbag deploys for any reason, it may cause a serious accident.
  3. REMOVE FRONT DOOR INSIDE HANDLE BEZEL LH

    Refer to PROCEDURE - Step 3

  4. REMOVE FRONT DOOR ASSIST GRIP COVER LH

    Refer to PROCEDURE - Step 4

  5. REMOVE MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY WITH FRONT DOOR ARMREST BASE PANEL (for Driver Side)

    Refer to PROCEDURE - Step 5

  6. REMOVE POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH FRONT DOOR ARMREST BASE PANEL (for Front Passenger Side)

    Refer to PROCEDURE - Step 8

  7. REMOVE FRONT DOOR TRIM BOARD SUB-ASSEMBLY LH

    Refer to PROCEDURE - Step 11

  8. REMOVE FRONT DOOR INNER GLASS WEATHERSTRIP LH

    Refer to PROCEDURE - Step 14

  9. REMOVE FRONT DOOR FRONT BELT SEAL LH

    Refer to PROCEDURE - Step 16

  10. REMOVE FRONT DOOR SERVICE HOLE COVER LH

    Refer to PROCEDURE - Step 20

  11. REMOVE FRONT DOOR GLASS SUB-ASSEMBLY LH

    Refer to PROCEDURE - Step 22

  12. REMOVE DOOR FRAME GARNISH LH

    Refer to PROCEDURE - Step 23

  13. REMOVE FRONT DOOR GLASS RUN LH

    Refer to PROCEDURE - Step 24

  14. REMOVE FRONT DOOR FRONT LOWER FRAME SUB-ASSEMBLY LH

    Refer to PROCEDURE - Step 28

  15. REMOVE FRONT DOOR FIX WINDOW GLASS LH

    Refer to PROCEDURE - Step 29

  16. REMOVE FRONT DOOR BELT MOULDING ASSEMBLY LH

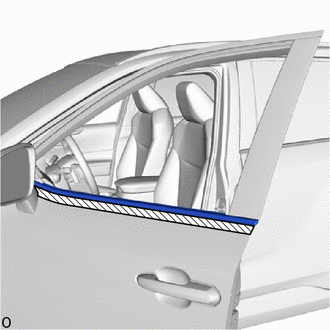

    1. Put protective tape around the front door belt moulding assembly LH.
      GTY913787Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Protective Tape

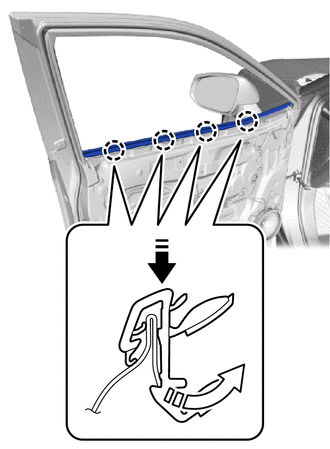

    2. While pressing the front door belt moulding assembly LH, pull the edge and detach the claw as shown in the illustration.
      GTY928635Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction (1)
      Remove in this Direction (2)

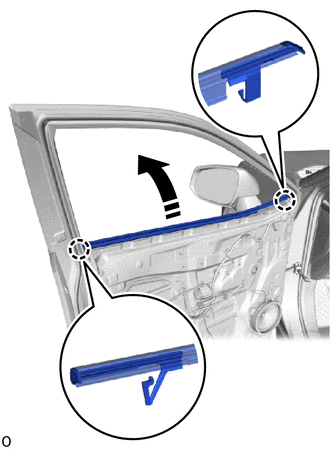

    3. GTY854071Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction

      Detach the claw as shown in the illustration to remove the front door belt moulding assembly LH.
