Removal [06/2020 - ]: Procedure

  1. REMOVE BACK DOOR CENTER GARNISH

    Refer to PROCEDURE - Step 1

  2. REMOVE BACK DOOR SIDE GARNISH LH

    Refer to PROCEDURE - Step 2

  3. REMOVE BACK DOOR SIDE GARNISH RH

    HINT:

    Use the same procedure described for the LH side.

  4. REMOVE REAR SPOILER SUB-ASSEMBLY
    1. Remove the 4 hole plugs.
      GTY900080Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the connector.
      GTY938983Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Grommet
    3. Detach the Grommet.
    4. Remove the 6 nuts.
      GTY900409Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Remove the bolt.
      GTY939721Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Use the same procedure for the other side.

    6. Put protective tape around the rear spoiler sub-assembly.
      GTY906666Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Protective Tape
    7. Detach the clip as shown in the illustration to remove the rear spoiler sub-assembly as shown in the illustration.
      GTY853783Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
    8. When reusing the rear spoiler sub-assembly:
      1. Remove the 3 clips.
        NOTE:

        Replace the clip with a new one.

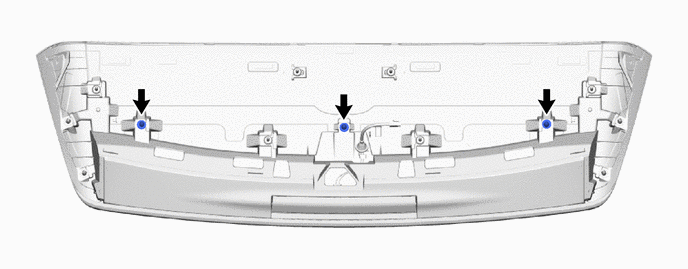

        GTY1010758Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE REAR SIDE SPOILER SUB-ASSEMBLY LH
    1. Detach the clip and rear side spoiler sub-assembly LH as shown in the illustration.
      GTY857006Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  6. REMOVE REAR SIDE SPOILER SUB-ASSEMBLY RH

    HINT:

    Use the same procedure described for the LH side.
