Removal [11/2024 - ]: Procedure

  1. REMOVE SYMBOL EMBLEM

    HINT:

    When removing the symbol emblem, if the double-sided tape is difficult to remove, heat the adhesive of the back door outside garnish sub-assembly and symbol emblem using a heat light.

    Standard

    Item Temperature
    Back Door Outside Garnish Sub-assembly 20 to 30°C (68 to 86°F)
    Symbol Emblem
    WARNING:
    • Do not touch the heat light and heated parts.
    • Touching the heat light may result in burns.
    • Touching heated parts for a long time may result in burns.
    GTY749838Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    *a Heated Part
    *b Heat Light
    NOTE:

    Do not heat the back door outside garnish sub-assembly and symbol emblem excessively.

    1. Put protective tape around the symbol emblem.
      GTY1005991Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Protective Tape
    2. Insert piano wire between the back door outside garnish sub-assembly and symbol emblem.

      HINT:

      Be careful of the boss positions.

      GTY1006923Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Wooden Block
      *b Piano Wire
      *c Boss Position
    3. Tie objects that can serve as handles (for example, wooden blocks) to the piano wire ends.
    4. Pull the piano wire and scrape off the double-sided tape that holds the symbol emblem to the back door outside garnish sub-assembly.
      NOTE:

      Be careful not to damage the back door outside garnish sub-assembly.

    5. Remove the symbol emblem.
    6. Remove the protective tape.
  2. REMOVE BACK DOOR NAME PLATE

    HINT:

    When removing the back door name plate, if the double-sided tape is difficult to remove, heat the adhesive of the back door panel and back door name plate using a heat light.

    Standard

    Item Temperature
    Back Door Panel 40 to 60°C (104 to 140°F)
    Back Door Name Plate 20 to 30°C (68 to 86°F)
    WARNING:
    • Do not touch the heat light and heated parts.
    • Touching the heat light may result in burns.
    • Touching heated parts for a long time may result in burns.
    GTY749838Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    *a Heated Part
    *b Heat Light
    NOTE:

    Do not heat the back door panel and back door name plate excessively.

    1. Put protective tape around the back door name plate.
      GTY1005964Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Protective Tape
    2. Insert piano wire between the back door panel and back door name plate.
      GTY1006593Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Wooden Block
      *b Piano Wire
    3. Tie objects that can serve as handles (for example, wooden blocks) to the piano wire ends.
    4. Pull the piano wire and scrape off the double-sided tape that holds the back door name plate to the back door panel.
      NOTE:

      Be careful not to damage the back door panel.

    5. Remove the back door name plate.
    6. Remove the protective tape.
  3. REMOVE BACK DOOR NO. 3 NAME PLATE

    HINT:

    When removing the back door No. 3 name plate, if the double-sided tape is difficult to remove, heat the adhesive of the back door panel and back door No. 3 name plate using a heat light.

    Standard

    Item Temperature
    Back Door Panel 40 to 60°C (104 to 140°F)
    Back Door No. 3 Name Plate 20 to 30°C (68 to 86°F)
    WARNING:
    • Do not touch the heat light and heated parts.
    • Touching the heat light may result in burns.
    • Touching heated parts for a long time may result in burns.
    GTY749838Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    *a Heated Part
    *b Heat Light
    NOTE:

    Do not heat the back door panel and back door No. 3 name plate excessively.

    1. Put protective tape around the back door No. 3 name plate.
      GTY1005943Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Protective Tape
    2. Insert piano wire between the back door panel and back door No. 3 name plate.
      GTY1005956Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Wooden Block
      *b Piano Wire
    3. Tie objects that can serve as handles (for example, wooden blocks) to the piano wire ends.
    4. Pull the piano wire and scrape off the double-sided tape that holds the back door No. 3 name plate to the back door panel.
      NOTE:

      Be careful not to damage the back door panel.

    5. Remove the back door No. 3 name plate.
    6. Remove the protective tape.
  4. REMOVE BACK DOOR NO. 3 NAME PLATE

    HINT:

    When removing the back door No. 3 name plate, if the double-sided tape is difficult to remove, heat the adhesive of the back door No. 3 name plate and back door panel using a heat light.

    Standard

    Item Temperature
    Back Door Panel 40 to 60°C (104 to 140°F)
    Back Door No. 3 Name Plate 20 to 30°C (68 to 86°F)
    WARNING:
    • Do not touch the heat light and heated parts.
    • Touching the heat light may result in burns.
    • Touching heated parts for a long time may result in burns.
    GTY749838Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    *a Heated Part
    *b Heat Light
    NOTE:

    Do not heat the back door panel and back door No. 3 name plate excessively.

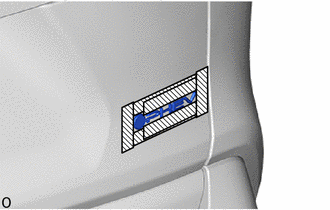

    1. Apply protective tape around the back door No. 3 name plate.
      GTY1255238Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Protective Tape

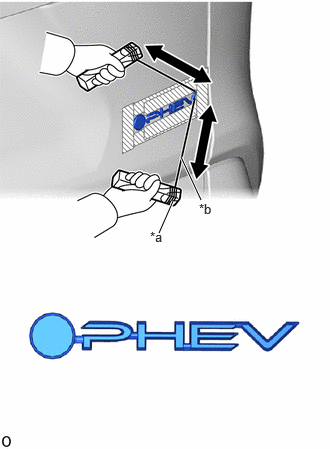

    2. Insert piano wire between the back door panel and back door No. 3 name plate.
      GTY1255467Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Wooden Block
      *b Piano Wire
      Protective Tape
    3. Tie objects that can serve as handles (for example, wooden blocks) to the piano wire ends.
    4. Pull the piano wire and scrape off the double-sided tape that holds the back door No. 3 name plate to the back door panel.
      NOTE:

      Be careful not to damage the back door panel.

    5. Remove the back door No. 3 name plate.
    6. Remove the protective tape.
