Reassembly [06/2020 - 10/2022]: Procedure

  1. INSTALL REAR INNER BLACK OUT TAPE LH (w/ Black Out Tape)

    Refer to PROCEDURE - Step 2

  2. INSTALL REAR DOOR OUTSIDE STRIPE LH (w/ Black Out Tape)

    Refer to PROCEDURE - Step 3

  3. INSTALL REAR DOOR LOWER OUTSIDE STRIPE LH (w/ Black Out Tape)

    Refer to PROCEDURE - Step 4

  4. INSTALL HOLE PLUG
    1. Install the hole plug.
      GTY883490Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Use the same procedure described for the other side.

  5. INSTALL REAR DOOR PANEL CUSHION
    1. Attach the claw and install the rear door panel cushion.
      GTY883489Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. INSTALL SCREW GROMMET
    1. Attach the claw and install the screw grommet.
      GTY883494Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Use the same procedure described for the other side.

  7. INSTALL REAR DOOR LOCK CHILD PROTECTION COVER LH
    1. Install the rear door lock child protection cover LH.
      GTY883493Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. INSTALL REAR DOOR PANEL PROTECTOR LH

    Refer to PROCEDURE - Step 1

  9. INSTALL OUTSIDE MOULDING SET LH

    Refer to PROCEDURE - Step 3

  10. INSTALL REAR DOOR LOWER OUTSIDE MOULDING SUB-ASSEMBLY LH

    Refer to PROCEDURE - Step 4

  11. INSTALL REAR DOOR NO. 5 WEATHERSTRIP LH
    1. Attach the clip and install the rear door No. 5 weatherstrip LH.
      GTY936142Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. INSTALL REAR DOOR WINDOW FRAME MOULDING LH (REAR PILLAR SIDE)

    Refer to PROCEDURE - Step 1

  13. INSTALL REAR DOOR UPPER WINDOW FRAME MOULDING LH

    Refer to PROCEDURE - Step 2

  14. INSTALL DOOR WINDOW FRAME MOULDING CLIP
    1. Attach the claw to install a new door window frame moulding clip.
      GTY938302Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  15. INSTALL REAR DOOR FRONT OUTSIDE SEAL LH

    Refer to PROCEDURE - Step 3

  16. INSTALL REAR DOOR WINDOW FRAME MOULDING LH (CENTER PILLAR SIDE)

    Refer to PROCEDURE - Step 4

  17. INSTALL REAR DOOR WEATHERSTRIP LH
    1. Attach the clip and install the rear door weatherstrip LH.

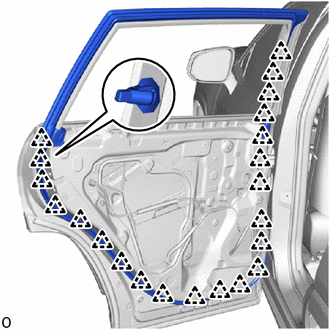

      GTY883492Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Attach the clip.

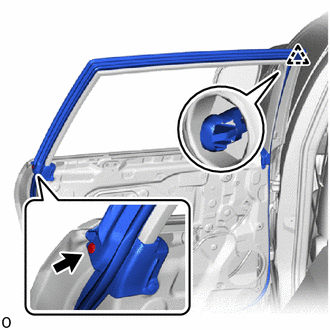

      GTY883496Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Check that the rear door weatherstrip LH is securely installed to the rail of the rear door upper window frame moulding LH as shown in the illustration.

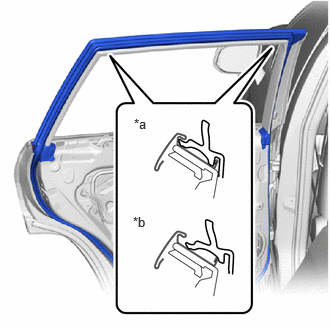

      GTY913162Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Correct
      *b Incorrect
      NOTE:

      If the rear door weatherstrip LH is not securely installed, water may leak into the vehicle.

  18. INSTALL REAR DOOR CHECK ASSEMBLY LH
    1. When reusing a bolt (B):
      1. Clean the threads of the bolt with non-residue solvent.
      2. Apply adhesive to the threads of the bolt.

        Adhesive

        Toyota Genuine Adhesive 1324, Three Bond 1324 or equivalent.

    2. Install the rear door check assembly LH to the door panel with the 2 bolts (A).

      Torque: 5.5 N*m (56 kgf*cm, 49 in.*lbf)

    3. Install the rear door check assembly LH to the body panel with the bolt (B).
      GTY918532Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Bolt (A)
      Bolt (B)

      Torque: 30 N*m (306 kgf*cm, 22 ft.*lbf)

  19. INSTALL REAR DOOR OUTSIDE HANDLE FRAME SUB-ASSEMBLY LH
    1. Apply MP grease to the sliding parts of the rear door outside handle frame sub-assembly LH.

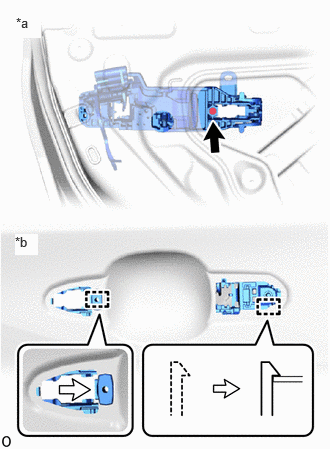

    2. Attach the guide as shown in the illustration.
      GTY842770Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Inside
      *b Outside
    3. Using a T30 "TORX" socket wrench, install the rear door outside handle frame sub-assembly LH with the "TORX" screw.

      Torque: 4.0 N*m (41 kgf*cm, 35 in.*lbf)

  20. INSTALL REAR DOOR REAR OUTSIDE HANDLE PAD
    1. Attach the guide and install the rear door rear outside handle pad.
      GTY883501Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  21. INSTALL REAR DOOR FRONT OUTSIDE HANDLE PAD
    1. Attach the claw and guide to install the rear door front outside handle pad.
      GTY883500Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

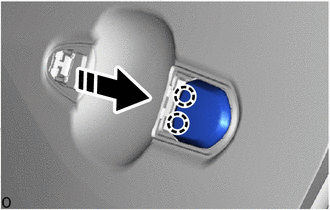

  22. INSTALL REAR DOOR OUTSIDE HANDLE COVER LH
    1. Attach the claw and install the rear door outside handle cover LH as shown in the illustration.
      GTY857534Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
    2. Using a T30 "TORX" socket wrench, install the rear door outside handle cover LH with the "TORX" screw.
      GTY883505Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 4.0 N*m (41 kgf*cm, 35 in.*lbf)

  23. INSTALL REAR DOOR OUTSIDE HANDLE ASSEMBLY LH
    1. Install the rear door outside handle assembly LH by pushing and sliding it in the direction indicated by the arrow shown in the illustration.

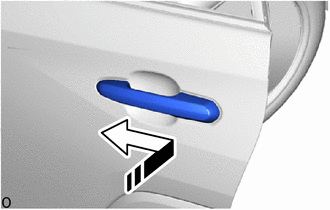

      GTY854663Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
    2. Attach the holder as shown in the illustration.

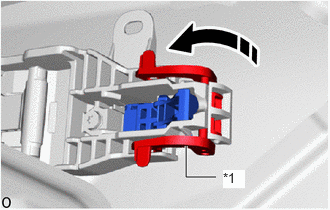

      GTY870109Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Holder
      Install in this Direction

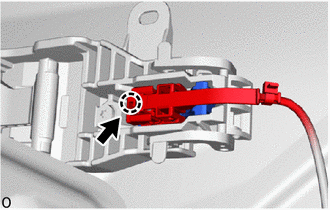

    3. w/ Smart Key System:
      GTY936159Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Attach the claw to connect the connector and connector cover.
      2. Attach the claw and close the connector cover as shown in the illustration.

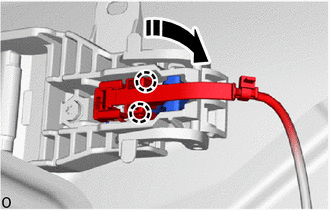

        GTY875797Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        Install in this Direction
  24. INSTALL REAR DOOR INSIDE LOCKING CABLE ASSEMBLY

    Refer to PROCEDURE - Step 1

  25. INSTALL REAR DOOR LOCK REMOTE CONTROL CABLE ASSEMBLY

    Refer to PROCEDURE - Step 2

  26. INSTALL DOOR LOCK WIRING HARNESS SEAL
    1. When reusing rear door lock with motor assembly LH:

      Refer to PROCEDURE - Step 3

  27. INSTALL REAR DOOR LOCK WITH MOTOR ASSEMBLY LH

    Refer to PROCEDURE - Step 4

  28. INSTALL POWER WINDOW REGULATOR MOTOR ASSEMBLY LH

    Refer to PROCEDURE - Step 1

  29. INSTALL REAR DOOR WINDOW REGULATOR SUB-ASSEMBLY LH
    1. Apply MP grease to the sliding parts of the rear door window regulator sub-assembly LH.
    2. Pull in the rear door window regulator sub-assembly LH through the service hole as shown in the illustration.

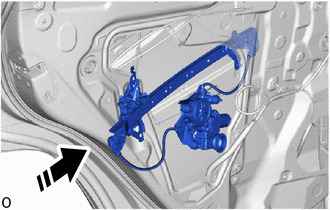

      GTY921628Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
    3. Install the rear door window regulator sub-assembly LH with the 6 nuts in the order shown in the illustration.
      Fig 1: Rear Door Window Regulator Sub-Assembly LH Tightening Sequence

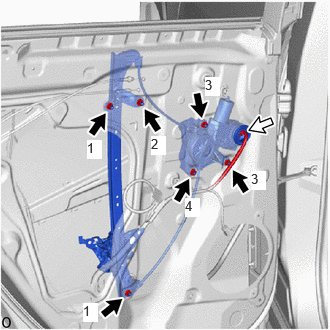

      GTY940616Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Nut
      Connector

      Torque: 8.0 N*m (82 kgf*cm, 71 in.*lbf)

      NOTE:

      Do not damage the rear door panel with the rear door window regulator sub-assembly LH.

    4. Connect the connector.
  30. INSTALL REAR DOOR GLASS SUB-ASSEMBLY LH
    1. Connect the power window regulator switch assembly connector.
    2. Connect the cable to the negative (-) auxiliary battery terminal.

      Refer to PROCEDURE - Step 2

    3. Turn the ignition switch to ON.
    4. Move the rear door window regulator sub-assembly LH until the installation bolts can be seen.
    5. Insert the rear door glass sub-assembly LH to the rear door panel in the shown in the illustration.

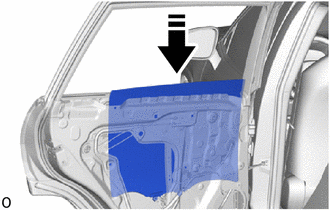

      GTY915978Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
    6. Install the rear door glass sub-assembly LH with the 2 bolts.
      GTY883488Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 8.0 N*m (82 kgf*cm, 71 in.*lbf)

      NOTE:

      Be careful not to damage the rear door glass sub-assembly LH.

    7. Move the rear door window regulator sub-assembly LH until the open position.
    8. Turn the ignition switch off.
    9. Disconnect the cable from the negative (-) auxiliary battery terminal.

      Refer to PROCEDURE - Step 4 [06/2020 - 12/2021] , or refer to PROCEDURE - Step 4 [12/2021 - 10/2022]

    10. Disconnect the power window regulator switch assembly connector.
    11. Install the hole plug.
      GTY883486Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  31. INSTALL REAR DOOR QUARTER WINDOW WEATHERSTRIP LH
    1. Install the rear door quarter window weatherstrip LH to the rear door quarter window glass LH.
      GTY883482Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  32. INSTALL REAR DOOR QUARTER WINDOW GLASS LH
    1. Install the rear door quarter window glass LH with rear door quarter window weatherstrip LH as shown in the illustration.

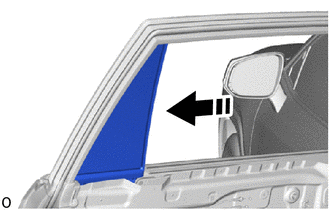

      GTY918487Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
  33. INSTALL REAR DOOR WINDOW DIVISION BAR SUB-ASSEMBLY LH
    1. Install the rear door glass run LH to the rear door window division bar sub-assembly LH.
      GTY909965Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
    2. Insert the rear door window division bar sub-assembly LH with rear door glass run LH into the rear door panel assembly in the direction indicated by the arrow shown in the illustration.

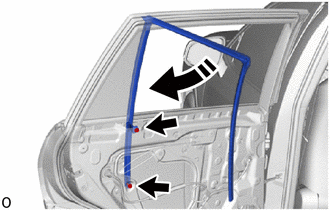

      GTY928100Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
    3. Install the rear door window division bar sub-assembly LH with the 2 bolts.

      Torque: 8.5 N*m (87 kgf*cm, 75 in.*lbf)

    4. Pull back part of the rear door weatherstrip LH and install the screw as shown in the illustration.
      GTY929100Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Pull back in this Direction
  34. INSTALL REAR DOOR GLASS RUN LH
    1. Install the rear door glass run LH as shown in the illustration.

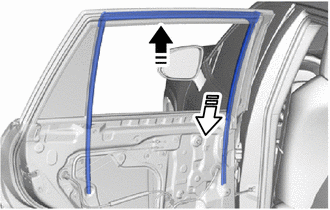

      GTY843946Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction (1)
      Install in this Direction (2)

      HINT:

      Install the rear door glass run LH so that the top of it aligns with the top of the rear door window division bar sub-assembly.

  35. INSTALL REAR DOOR BELT MOULDING ASSEMBLY LH

    Refer to PROCEDURE - Step 5

  36. INSTALL REAR DOOR FRAME GARNISH LH
    1. Attach the guide and install the rear door frame garnish LH in the direction indicated by the arrows, in the order shown in the illustration.

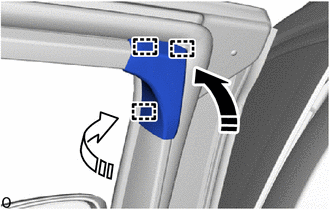

      GTY840261Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction (1)
      Install in this Direction (2)
  37. INSTALL REAR DOOR SERVICE HOLE COVER LH

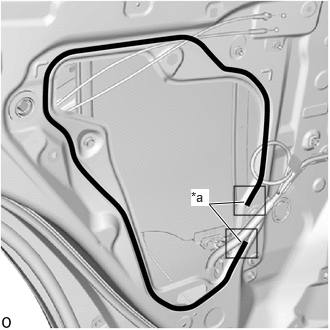

    1. Apply new butyl tape to the rear door panel.
      GTY931008Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Reference Point
      Butyl Tape

      HINT:

      • Begin applying the butyl tape from the reference point shown in the illustration.
      • The butyl tape can be applied from either reference point.
    2. Pass the rear door lock remote control cable assembly and rear door inside locking cable assembly through a new rear door service hole cover LH.

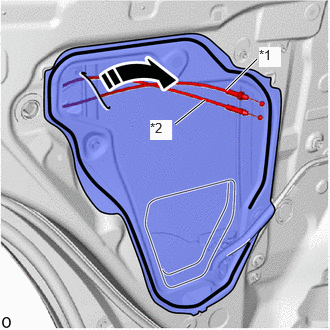

      GTY854370Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Rear Door Lock Remote Control Cable Assembly
      *2 Rear Door Inside Locking Cable Assembly
      Install in this Direction
    3. Align the top of the rear door service hole cover LH with the reference point on the rear door panel and install it.

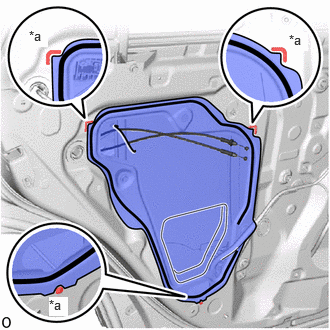

      GTY866070Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Reference Point
      Butyl Tape
    4. Align the bottom of the rear door service hole cover LH with the reference point on the rear door panel and install it.
      NOTE:
      • Securely install the rear door service hole cover LH to prevent wrinkles and air bubbles.
      • There should be no wrinkles or folds after installing the rear door service hole cover LH.
      • After installing the rear door service hole cover LH, check the seal quality.
  38. INSTALL REAR SPEAKER ASSEMBLY

    Refer to PROCEDURE - Step 1

  39. INSTALL REAR DOOR REAR BELT SEAL LH
    1. Install the rear door rear belt seal LH as shown in the illustration.

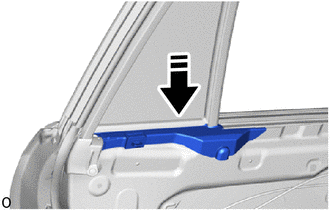

      GTY887080Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
    2. Attach the guide and install part of the rear door weatherstrip LH with the clip.

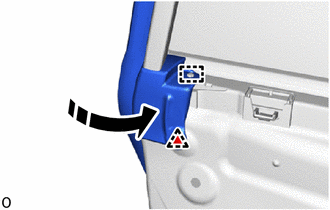

      GTY881541Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
  40. INSTALL REAR DOOR FRONT BELT SEAL LH
    1. Install the rear door front belt seal LH to the rear door inner glass weatherstrip LH as shown in the illustration.
      GTY898599Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction

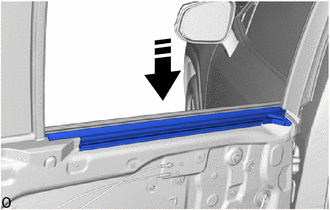

  41. INSTALL REAR DOOR INNER GLASS WEATHERSTRIP LH
    1. Install the rear door inner glass weatherstrip LH with rear door front belt seal LH as shown in the illustration.
      GTY894353Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
    2. Attach the guide and install part of the rear door weatherstrip LH with the clip.

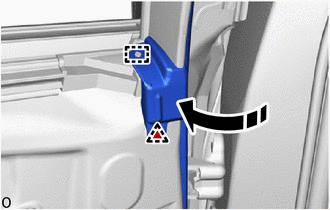

      GTY910772Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
  42. INSTALL REAR DOOR INSIDE HANDLE SUB-ASSEMBLY LH
    1. Temporarily install the rear door inside handle sub-assembly LH in the direction indicated by the arrow as shown in the illustration.

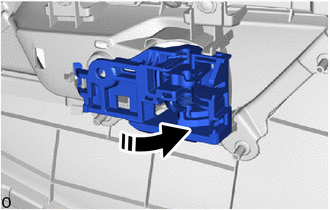

      GTY905639Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
    2. Attach the claw and clamp to install the rear door inside handle sub-assembly LH.
      GTY883522Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  43. INSTALL REAR DOOR TRIM BOARD SUB-ASSEMBLY LH

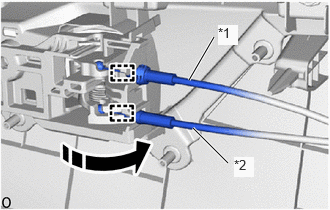

    1. Attach the clamp and connect the rear door inside locking cable assembly and rear door lock remote control cable assembly to the rear door inside handle sub-assembly LH in the direction of the arrow indicated in the illustration.
      GTY941447Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Rear Door Inside Locking Cable Assembly
      *2 Rear Door Lock Remote Control Cable Assembly
      Install in this Direction
    2. Attach the claw and clip to install the rear door trim board sub-assembly LH in the direction indicated by the arrow shown in the illustration.

      HINT:

      Attach the claw and clip as shown in the illustration.

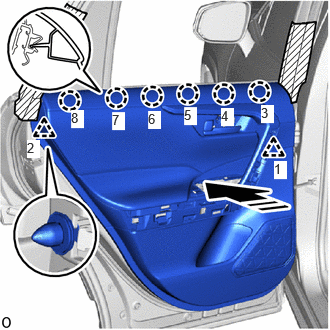

      GTY922786Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
    3. Attach the clip and install the 3 screws as shown in the illustration.

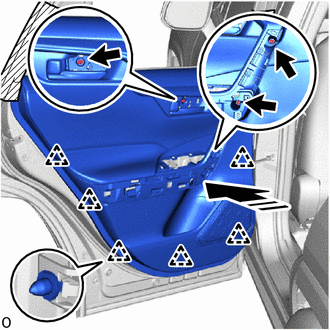

      GTY944109Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
    4. Remove the protective tape.
  44. INSTALL REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY

    Refer to PROCEDURE - Step 1

  45. INSTALL REAR SEAT HEATER SWITCH (w/ Seat Heater Switch)

    Refer to PROCEDURE - Step 1

  46. INSTALL REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH REAR DOOR ARMREST BASE PANEL
    1. w/ Seat Heater Switch:
      1. Connect the 2 connectors.
    2. w/o Seat Heater Switch:
      1. Connect the connector.
    3. Attach the guide in the direction indicated by the arrow shown in the illustration.

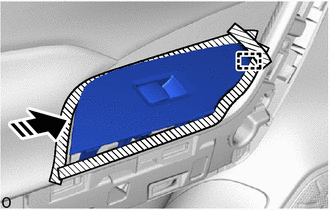

      GTY849519Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
    4. Attach the guide and claw to install the rear power window regulator switch assembly with rear door armrest base panel.

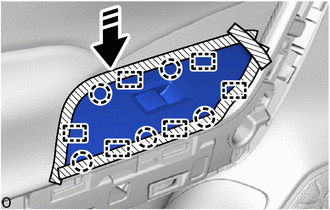

      GTY869661Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
    5. Remove the protective tape.
  47. INSTALL DOOR ASSIST GRIP COVER LH
    1. Attach the guide in the direction indicated by the arrow shown in the illustration.

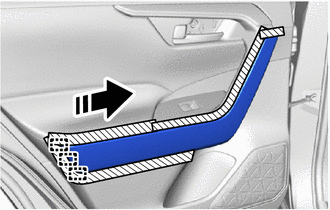

      GTY861217Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
    2. Attach the claw in the order shown in the illustration.
      Fig 2: Door Assist Grip Cover LH Claw Attaching Sequence

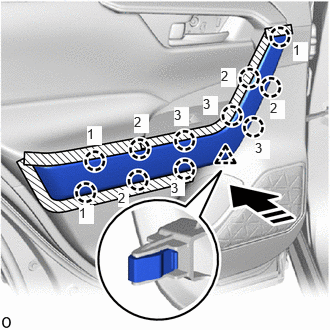

      GTY875306Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
    3. Attach the clip and install the door assist grip cover LH.
    4. Remove the protective tape.
  48. INSTALL REAR DOOR INSIDE HANDLE BEZEL LH
    1. Attach the claw and install the rear door inside handle bezel LH.
      GTY883532Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  49. CONNECT CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL

    Refer to INSTALLATION [06/2020 - 10/2022]

  50. INITIALIZATION AFTER RECONNECTING AUXILIARY BATTERY TERMINAL

    Refer to WORK PROCEDURE [06/2020 - 10/2022]

    HINT:

    When disconnecting and reconnecting the auxiliary battery, there is an automatic learning function that completes learning when the respective system is used.

    Refer to AUTOMATIC LEARNING CHART [06/2020 - 12/2021] , or refer to AUTOMATIC LEARNING CHART [12/2021 - ]

  51. INITIALIZE POWER WINDOW CONTROL SYSTEM

    Refer to INITIALIZATION [06/2020 - ]

  52. CHECK POWER WINDOW CONTROL SYSTEM

    Refer to OPERATION CHECK [06/2020 - 12/2021] , or refer to OPERATION CHECK [12/2021 - ]

  53. CHECK POWER DOOR LOCK CONTROL SYSTEM

    Refer to OPERATION CHECK [06/2020 - ]

scientia non olet · About LEMON Manuals
