Removal [06/2020 - 12/2021]: Procedure

  1. PRECAUTION (w/ Hands Free Power Back Door)
    NOTE:

    After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal.

    Refer to BEFORE DISCONNECTING BATTERY [06/2020 - 10/2022]

  2. DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL (w/ Hands Free Power Back Door)

    Refer to REMOVAL [06/2020 - 12/2021]

  3. REMOVE REAR BUMPER COVER

    Refer to REMOVAL [06/2020 - 12/2021]

  4. REMOVE POWER BACK DOOR WARNING BUZZER

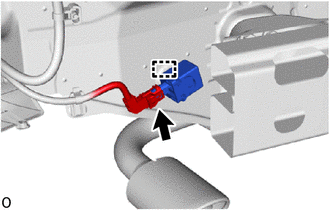

    1. Detach the clamp and remove the power back door warning buzzer.
      GTY904187Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the connector.
      NOTE:

      Do not subject the power back door warning buzzer to strong impacts or force, and do not drop it.
