Components [06/2020 - ]

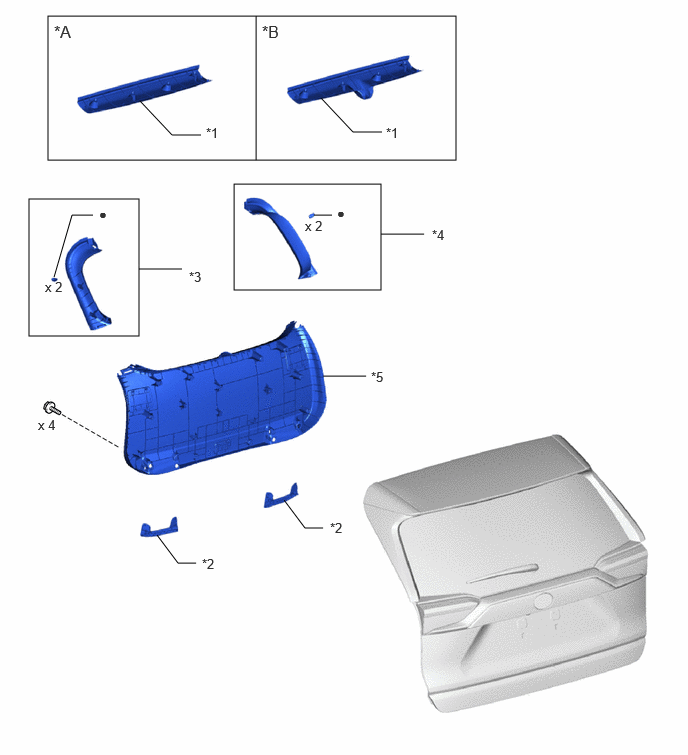

Fig 1: Power Back Door Drive Unit Replacement Components (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*A	w/o Digital Inner Mirror	*B	w/ Digital Inner Mirror
*1	BACK DOOR CENTER GARNISH	*2	BACK DOOR HANDLE COVER
*3	BACK DOOR SIDE GARNISH LH	*4	BACK DOOR SIDE GARNISH RH
*5	BACK DOOR TRIM BOARD ASSEMBLY	-	-
•	Non-reusable part	-	-

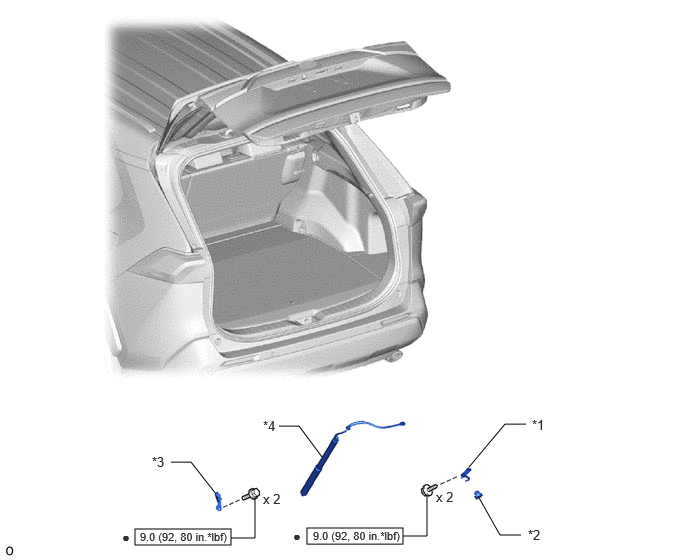

Fig 2: Power Back Door Drive Unit Replacement Components With Torque Specifications (2 Of 2)

Callout	Description	Callout	Description
*1	BACK DOOR LOWER DAMPER STAY BRACKET LH	*2	BACK DOOR STAY STOPPER
*3	BACK DOOR UPPER DAMPER STAY BRACKET LH	*4	POWER BACK DOOR UNIT ASSEMBLY LH
	Nm (kgfcm, ft.*lbf): Specified torque	•	Non-reusable part
