Components [06/2020 - ]

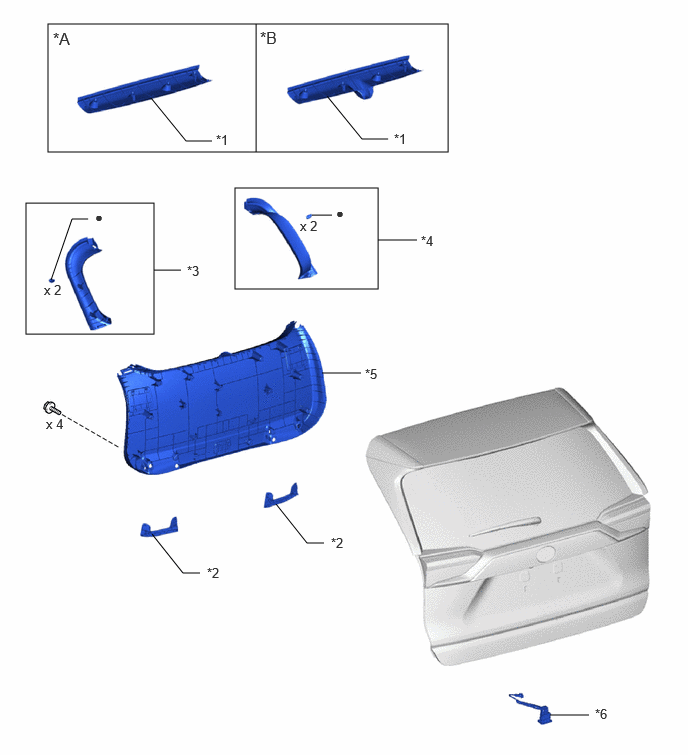

Fig 1: Power Back Door Closer Switch Replacement Components
GTY1177079Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*A w/o Digital Inner Mirror *B w/ Digital Inner Mirror
*1 BACK DOOR CENTER GARNISH *2 BACK DOOR HANDLE COVER
*3 BACK DOOR SIDE GARNISH LH *4 BACK DOOR SIDE GARNISH RH
*5 BACK DOOR TRIM BOARD ASSEMBLY *6 NO. 1 POWER BACK DOOR CONTROL SWITCH
Non-reusable part - -
