Components [06/2020 - ]

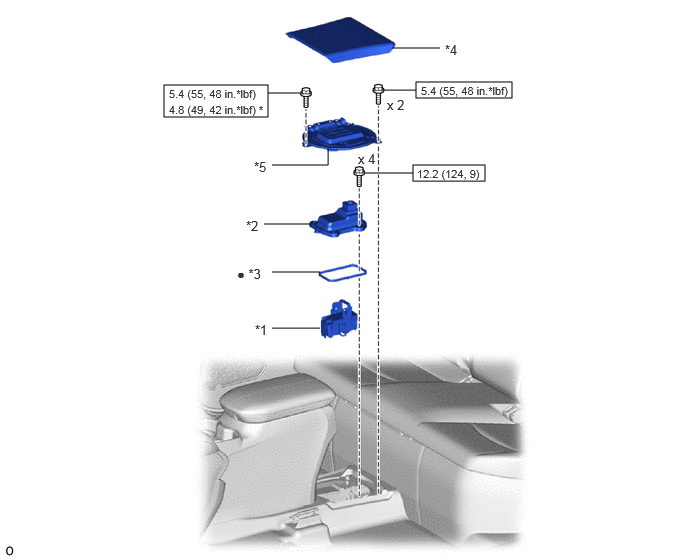

Fig 1: Charge Lid Opener Unit Replacement Components With Torque Specifications (1 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	SERVICE PLUG GRIP	*2	NO. 2 TRACTION BATTERY COVER
*3	NO. 1 HYBRID BATTERY SEAL	*4	BATTERY SERVICE HOLE COVER
*5	FRONT FLOOR SERVICE HOLE COVER	-	-
	Nm (kgfcm, ft.*lbf): Specified torque	*	For use with a union nut wrench
•	Non-reusable part	-	-

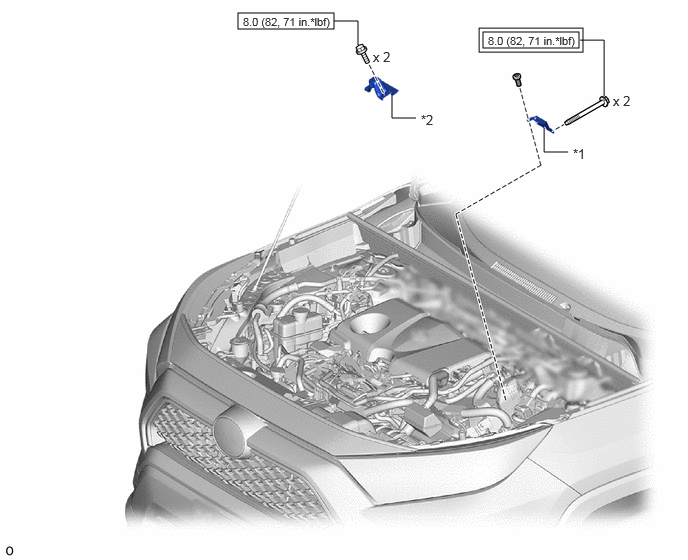

Fig 2: Charge Lid Opener Unit Replacement Components With Torque Specifications (2 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	CONNECTOR COVER ASSEMBLY	*2	NO. 2 INVERTER PROTECTOR
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": Nm (kgfcm, ft.*lbf)		Nm (kgfcm, ft.*lbf): Specified torque

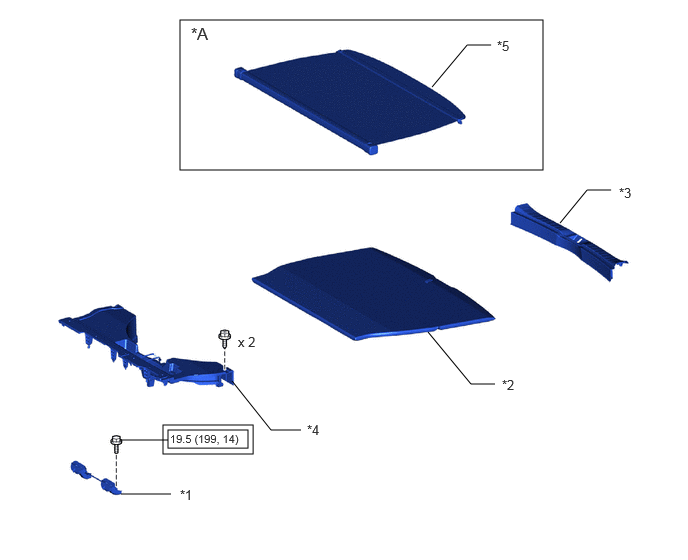

Fig 3: Charge Lid Opener Unit Replacement Components With Torque Specifications (3 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*A	w/ Tonneau Cover	-	-
*1	CHILD RESTRAINT SEAT ANCHOR BRACKET SUB-ASSEMBLY RH	*2	DECK BOARD ASSEMBLY
*3	REAR FLOOR FINISH PLATE	*4	REAR NO. 1 FLOOR MAT SUPPORT SIDE PLATE
*5	TONNEAU COVER ASSEMBLY	-	-
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : Nm (kgfcm, ft.*lbf)	-	-

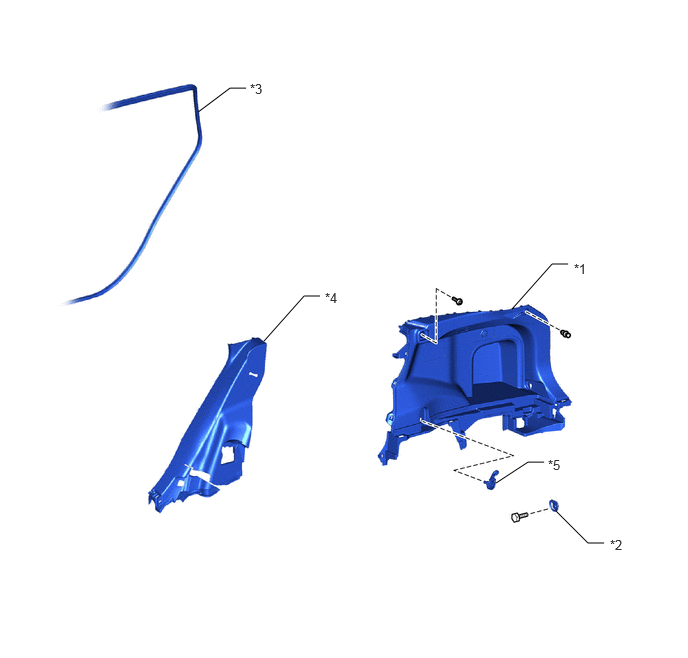

Fig 4: Charge Lid Opener Unit Replacement Components (4 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	DECK TRIM SIDE PANEL ASSEMBLY RH	*2	LUGGAGE HOLD BELT STRIKER ASSEMBLY
*3	REAR DOOR OPENING TRIM WEATHERSTRIP RH	*4	REAR SEAT SIDE GARNISH RH
*5	TETHER ANCHOR BRACKET SET	-	-

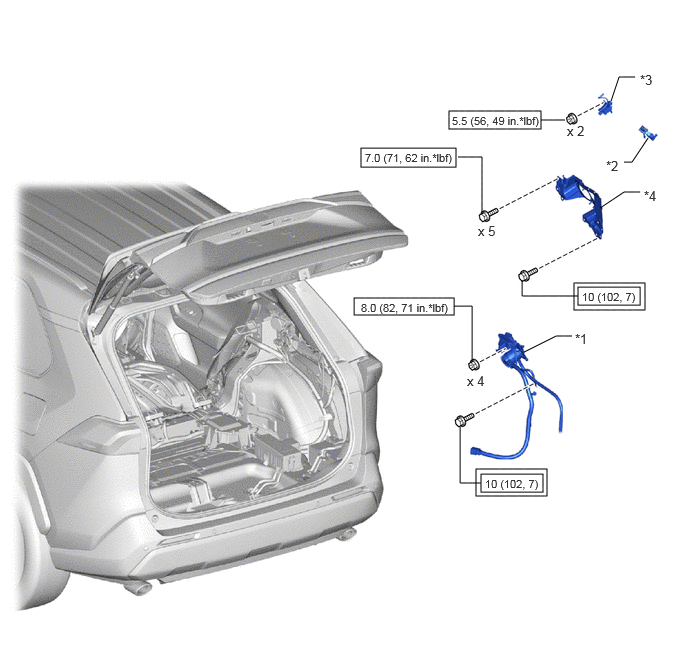

Fig 5: Charge Lid Opener Unit Replacement Components With Torque Specifications (5 Of 6)

Callout	Description	Callout	Description
*1	AC CHARGER INLET CABLE	*2	CHARGE LID LOCK WITH MOTOR ASSEMBLY
*3	EV CHARGER LID INDICATOR ASSEMBLY	*4	EV CHARGER LID SUB-ASSEMBLY
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": Nm (kgfcm, ft.*lbf)		Nm (kgfcm, ft.*lbf): Specified torque

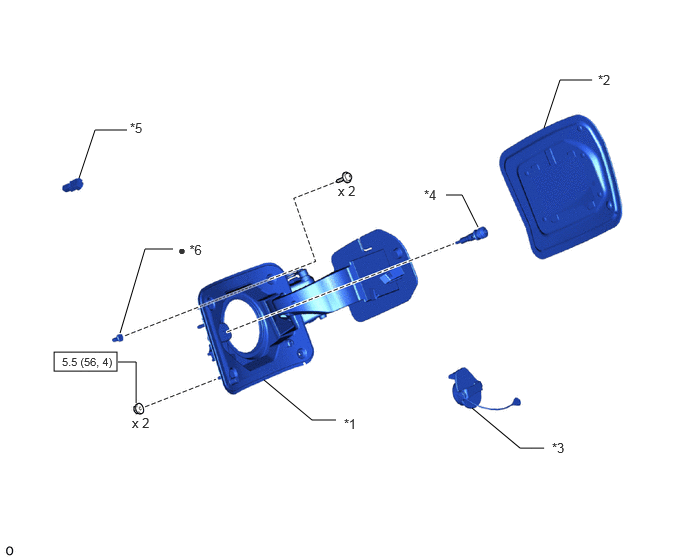

Fig 6: Charge Lid Opener Unit Replacement Components With Torque Specifications (6 Of 6)

Callout	Description	Callout	Description
*1	BATTERY CHARGER CONNECTOR OPENING LID SUB-ASSEMBLY	*2	BATTERY SERVICE OPENING LID SUB-ASSEMBLY
*3	CONNECTOR COVER	*4	PUSH START SWITCH BRACKET
*5	SPOT LIGHT ASSEMBLY	*6	GROMMET
	Nm (kgfcm, ft.*lbf): Specified torque	•	Non-reusable part
