Adjustment [06/2020 - ]: Procedure

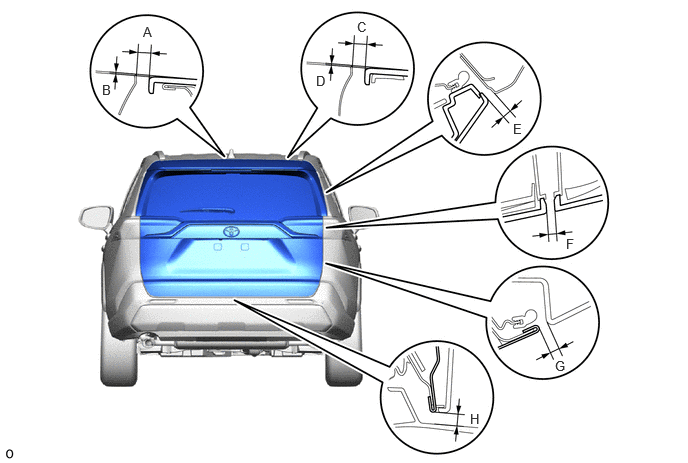

1. Check that the clearance measurements of areas A to H are within the standard ranges.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   STANDARD CLEARANCE



   Area	Measurement	Area	Measurement
   A	5.95 to 9.95 mm (0.234 to 0.392 in.)	B	-1.15 to 2.85 mm (-0.0453 to 0.1122 in.)
   C	5.95 to 9.95 mm (0.234 to 0.392 in.)	D	-1.15 to 2.85 mm (-0.0453 to 0.1122 in.)
   E	3.35 to 7.35 mm (0.132 to 0.290 in.)	F	2.5 to 7.5 mm (0.0984 to 0.2953 in.)
   G	3.35 to 7.35 mm (0.132 to 0.290 in.)	H	4.55 to 9.55 mm (0.179 to 0.376 in.)

Refer to PROCEDURE - Step 2 [06/2020 - 12/2021] , or refer to PROCEDURE - Step 2 [12/2021 - ]

Refer to PROCEDURE - Step 9 [06/2020 - 12/2021] , or refer to PROCEDURE - Step 9 [12/2021 - ]

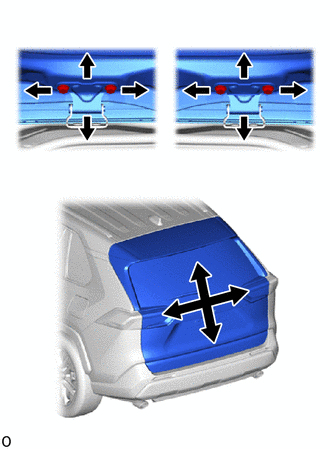

1. Before adjusting the upper end of the back door up and down or left and right, loosen the bolts.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Tighten the hinge bolts on the body after the adjustment.

   Torque: 19.5 N*m (199 kgf*cm, 14 ft.*lbf)

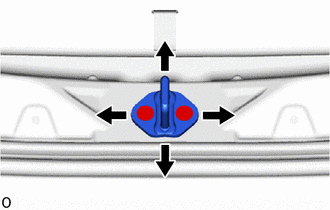

3. Using a T40 "TORX" socket wrench, adjust the striker position by slightly loosening the striker mounting screws and hitting the striker with a brass bar and a hammer.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

4. Using a T40 "TORX" socket wrench, tighten the striker mounting screws after the adjustment.

   Torque: 23 N*m (235 kgf*cm, 17 ft.*lbf)

Refer to PROCEDURE - Step 55 [06/2020 - 12/2021] , or refer to PROCEDURE - Step 55 [12/2021 - ]

Refer to PROCEDURE - Step 62 [06/2020 - 12/2021] , or refer to PROCEDURE - Step 62 [12/2021 - ]
