Door / Hatch - Service Information (2 Of 2) (PHEV)
>>
Back Door Support
>>
Components [06/2020 - ]
Components [06/2020 - ]

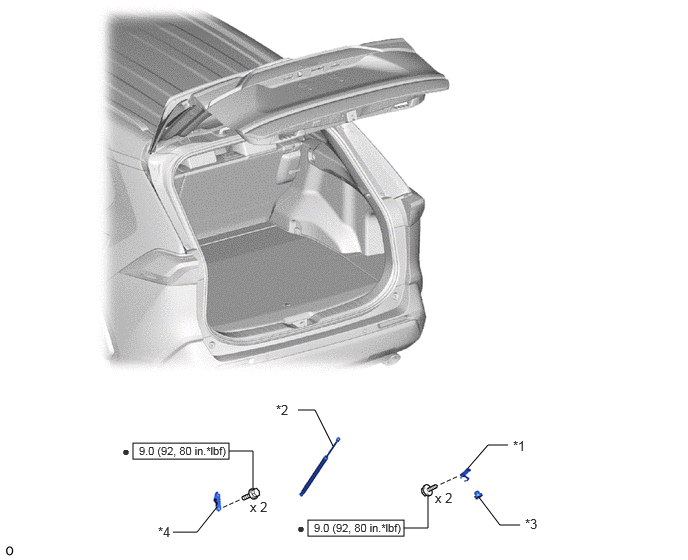

Fig 1: Back Door Support Replacement Components With Torque Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout
Description
Callout
Description
*1
BACK DOOR LOWER DAMPER STAY BRACKET LH
*2
BACK DOOR STAY ASSEMBLY LH
*3
BACK DOOR STAY STOPPER
*4
BACK DOOR UPPER DAMPER STAY BRACKET LH
N*m (kgf*cm, ft.*lbf): Specified torque
•
Non-reusable part
