Removal [06/2020 - ]: Procedure

  1. REMOVE BACK DOOR OUTSIDE GARNISH SUB-ASSEMBLY

    Refer to REMOVAL [06/2020 - ]

  2. REMOVE BACK DOOR OPENER SWITCH ASSEMBLY

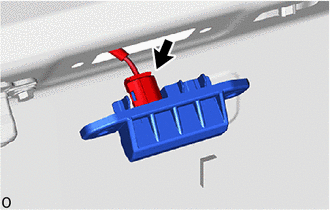

    1. Disconnect the connector and remove the back door opener switch assembly.
      GTY883678Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
