Removal [06/2020 - 10/2023]: Procedure

  1. REMOVE BACK DOOR CENTER GARNISH

    See step  1

  2. REMOVE BACK DOOR SIDE GARNISH LH

    See step  2

  3. REMOVE BACK DOOR SIDE GARNISH RH

    HINT:

    Use the same procedure described for the LH side.

  4. REMOVE BACK DOOR HANDLE COVER

    HINT:

    Use the same procedure for the RH and LH sides.

    See step  4

  5. REMOVE BACK DOOR TRIM BOARD ASSEMBLY

    See step  5

  6. REMOVE MULTIPLEX NETWORK DOOR ECU

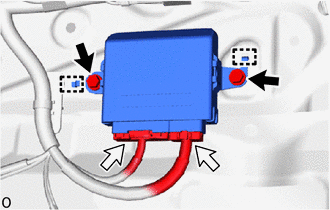

    1. Remove the 2 bolts.
      GTY929956Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Bolt
      Connector
    2. Detach the guide and remove the multiplex network door ECU.
    3. Disconnect the 2 connectors.
      NOTE:
      • Do not subject the multiplex network door ECU to strong impacts or force, and do not drop it.
      • Do not reuse the multiplex network door ECU that has been dropped.
