Installation [10/2022 - ]: Procedure

INSTALL ID CODE BOX (IMMOBILISER CODE ECU)

NOTE:

Do not reuse dropped or damaged parts.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

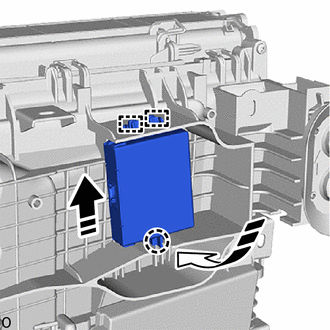

	Install in this Direction (1)
	Install in this Direction (2)

Attach in the direction indicated by the arrow (1) shown in the illustration to attach the guide.

Attach in the direction indicated by the arrow (2) shown in the illustration to attach the claw to install the ID code box (immobiliser code ECU).

INSTALL INSTRUMENT PANEL REINFORCEMENT ASSEMBLY WITH AIR CONDITIONING UNIT ASSEMBLY
Refer to INSTALLATION [10/2022 - ]
INITIALIZATION AFTER RECONNECTING AUXILIARY BATTERY TERMINAL
HINT:

When disconnecting and reconnecting the auxiliary battery, there is an automatic learning function that completes learning when the respective system is used.

Refer to AUTOMATIC LEARNING CHART [12/2021 - ]
PERFORM CODE REGISTRATION
Refer to REGISTRATION [12/2021 - ]
