Removal [06/2020 - ]: Procedure

  1. REMOVE BACK DOOR CENTER GARNISH

    Refer to PROCEDURE - Step 1

  2. REMOVE BACK DOOR SIDE GARNISH LH

    Refer to PROCEDURE - Step 2

  3. REMOVE BACK DOOR SIDE GARNISH RH

    HINT:

    Use the same procedure described for the LH side.

  4. REMOVE BACK DOOR HANDLE COVER

    HINT:

    Use the same procedure for the RH and LH sides.

    Refer to PROCEDURE - Step 4

  5. REMOVE BACK DOOR TRIM BOARD ASSEMBLY

    Refer to PROCEDURE - Step 5

  6. REMOVE BACK DOOR LOCK WITH COURTESY LIGHT SWITCH ASSEMBLY (w/ Power Back Door)

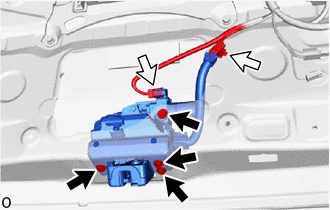

    1. Disconnect the 2 connectors.
      GTY942843Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Bolt
      Connector
    2. Remove the 4 bolts and back door lock with courtesy light switch assembly.
  7. REMOVE BACK DOOR LOCK WITH COURTESY LIGHT SWITCH ASSEMBLY (w/o Power Back Door)

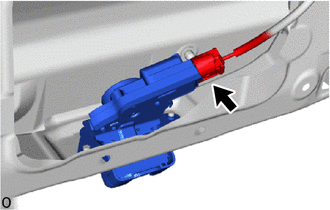

    1. Disconnect the connector.
      GTY883737Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

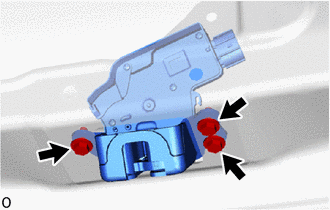

    2. Remove the 3 bolts and back door lock with courtesy light switch assembly.
      GTY936199Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
