Removal [06/2020 - ]: Procedure

REMOVE BACK DOOR CENTER GARNISH
Refer to PROCEDURE - Step 1
REMOVE BACK DOOR SIDE GARNISH LH
Refer to PROCEDURE - Step 2
REMOVE BACK DOOR SIDE GARNISH RH
HINT:

Use the same procedure described for the LH side.
REMOVE BACK DOOR HANDLE COVER
Refer to PROCEDURE - Step 4
REMOVE BACK DOOR TRIM BOARD ASSEMBLY
Refer to PROCEDURE - Step 5

REMOVE REAR WIPER ARM HEAD CAP

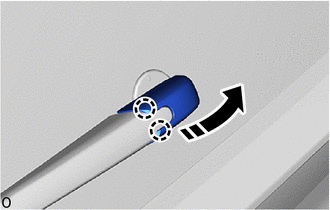

Detach the claw and open the rear wiper arm head cap as shown in the illustration.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Remove in this Direction

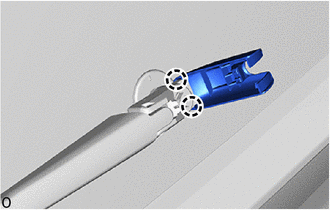

Detach the claw and remove the rear wiper arm head cap.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

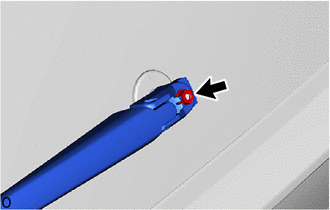

REMOVE REAR WIPER ARM AND BLADE ASSEMBLY

Remove the nut and rear wiper arm and blade assembly.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

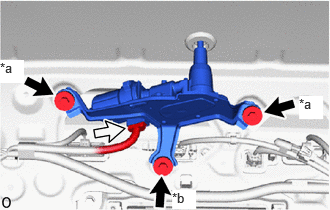

REMOVE REAR WIPER MOTOR ASSEMBLY

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

for Type A:

Disconnect the connector.
Remove the bolt (A).
Loosen the 2 bolts (B) and remove the rear wiper motor assembly.
NOTE:
Do not subject the rear wiper motor assembly to strong impacts or force, and do not drop it.

for Type B:

Disconnect the connector.
Remove the 2 bolts (A).
Loosen the bolt (B) and remove the rear wiper motor assembly.
NOTE:
Do not subject the rear wiper motor assembly to strong impacts or force, and do not drop it.

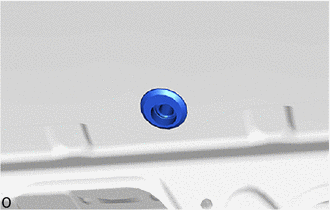

REMOVE REAR WIPER MOTOR GROMMET

Remove the rear wiper motor grommet.
