  1. REMOVE CONSOLE BOX ASSEMBLY

    Refer to REMOVAL [12/2021 - ]

  2. REMOVE AIR CONDITIONING CONTROL ASSEMBLY

    Refer to PROCEDURE - Step 1

  3. REMOVE LOWER CENTER INSTRUMENT PANEL FINISH PANEL

    Refer to PROCEDURE - Step 12

  4. REMOVE DCM (TELEMATICS TRANSCEIVER) WITH BRACKET

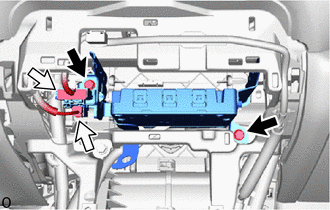

    1. Remove the 2 bolts.
      GTY936746Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Bolt
      Connector
    2. Disconnect the 2 connectors.

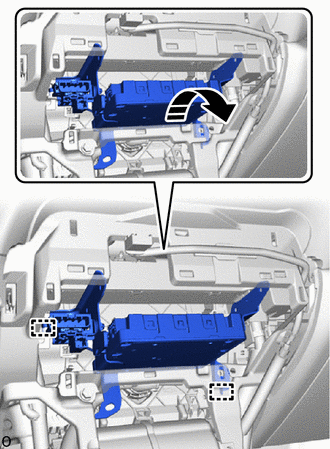

    3. Detach the guide and remove the DCM (telematics transceiver) with bracket.
      GTY891812Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
    4. Disconnect the connector.

      HINT:

      Remove the DCM (telematics transceiver) with bracket together with the No. 2 antenna cord sub-assembly and telephone ECU wire (to transceiver).

  5. REMOVE NO. 2 ANTENNA CORD SUB-ASSEMBLY
    1. Disconnect the 3 connectors.
      GTY860912Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Detach the clamp and remove the No. 2 antenna cord sub-assembly.
  6. REMOVE TELEPHONE ECU WIRE (TO TRANSCEIVER)
    1. Disconnect the connector.
      GTY860925Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Detach the clamp and remove the telephone ECU wire (to transceiver).
  7. REMOVE NO. 1 MULTI-MEDIA MODULE BRACKET
    1. Remove the screw and No. 1 multi-media module bracket.
      GTY860931Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. REMOVE NO. 2 MULTI-MEDIA MODULE BRACKET
    1. Remove the 2 screws and No. 2 multi-media module bracket.
      GTY860934Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. REMOVE DCM (TELEMATICS TRANSCEIVER)
