- INSTALL DCM (TELEMATICS TRANSCEIVER)
- INSTALL NO. 2 MULTI-MEDIA MODULE BRACKET
- w/ Navigation System:
- Install the No. 2 multi-media module bracket with the 4 screws.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
Torque: 3.0 N*m (31 kgf*cm, 27 in.*lbf)
- w/o Navigation System:
- Install the No. 2 multi-media module bracket with the 2 screws.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
Torque: 3.0 N*m (31 kgf*cm, 27 in.*lbf)
- INSTALL NO. 1 MULTI-MEDIA MODULE BRACKET
- w/ Navigation System:
- Install the No. 1 multi-media module bracket with the 3 screws.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
Torque: 3.0 N*m (31 kgf*cm, 27 in.*lbf)
- w/o Navigation System:
- Install the No. 1 multi-media module bracket with the screw.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
Torque: 3.0 N*m (31 kgf*cm, 27 in.*lbf)
- INSTALL TELEPHONE ECU WIRE (TO TRANSCEIVER) (w/ Navigation System)
- Connect the 2 connectors to install the telephone ECU wire (to transceiver).
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- INSTALL TELEPHONE ECU WIRE (w/o Navigation System)
- Attach the clamp to install the telephone ECU wire.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- Connect the connector.
- INSTALL NO. 2 NAVIGATION WIRE (w/ Navigation System)
- Attach the clamp to install the No. 2 navigation wire.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- Connect the connector.
- INSTALL NO. 2 ANTENNA CORD SUB-ASSEMBLY
- w/ Navigation System:
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- Attach the clamp to install the No. 2 antenna cord sub-assembly.
- Connect the 4 connectors.
- w/o Navigation System:
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- Attach the clamp to install the No. 2 antenna cord sub-assembly.
- Connect the 3 connectors.
- INSTALL DCM (TELEMATICS TRANSCEIVER) WITH BRACKET (w/ Navigation System)
- Connect each connector.

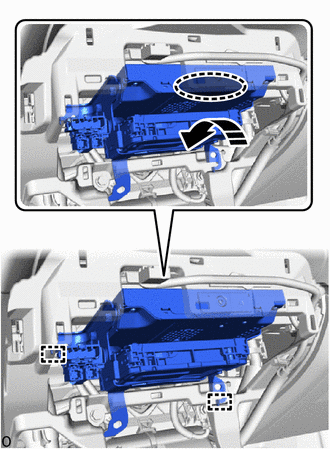

- Place your hand at the position shown in the illustration, and then while bending the instrument panel safety pad assembly, attach the guide to temporarily install the DCM (telematics transceiver) with bracket.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
 |
Place Hand Here |
 |
Install in this Direction |

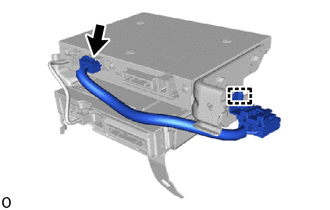

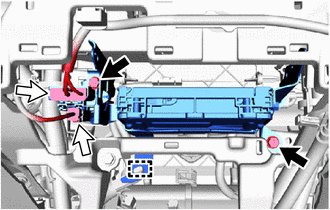

- Connect the 3 connectors.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
 |
Bolt |
 |
Connector |
- Attach the clamp.
- Install the 2 bolts.
Torque: 12 N*m (122 kgf*cm, 9 ft.*lbf)
- INSTALL DCM (TELEMATICS TRANSCEIVER) WITH BRACKET (w/o Navigation System)
- Connect each connector.
- Attach the guide to temporarily install the DCM (telematics transceiver) with bracket.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
|
Install in this Direction |

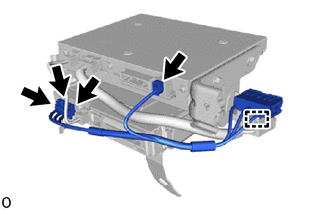

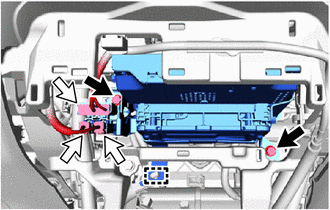

- Connect the 2 connectors.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
|
Bolt |
|
Connector |
- Attach the clamp.
- Install the 2 bolts.
Torque: 12 N*m (122 kgf*cm, 9 ft.*lbf)
- INSTALL LOWER CENTER INSTRUMENT PANEL FINISH PANEL
Refer to PROCEDURE - Step 27
- INSTALL AIR CONDITIONING CONTROL ASSEMBLY
Refer to PROCEDURE - Step 1
- INSTALL CONSOLE BOX ASSEMBLY
Refer to INSTALLATION [06/2020 - 12/2021]
, or refer to INSTALLATION [12/2021 - ]
- PERFORM DCM ACTIVATION
HINT:
After replacing the DCM (telematics transceiver), make sure to perform DCM activation.
Refer to DCM ACTIVATION [06/2020 - 10/2022]
- PERFORM REGISTRATION
- for Remote Connect Compatible Type:
HINT:
After replacing the DCM (telematics transceiver), make sure to perform code registration (Smart key System (for Start Function)).
Refer to REGISTRATION [06/2020 - 12/2021]
, or refer to REGISTRATION [12/2021 - ]
