Removal [06/2020 - ]: Procedure

  1. REMOVE BACK DOOR OUTSIDE GARNISH SUB-ASSEMBLY

    Refer to REMOVAL [06/2020 - ]

  2. REMOVE REAR LIGHT ASSEMBLY LH
    NOTE:

    If the rear light assembly LH has been removed, replace the rear light gasket with a new one.

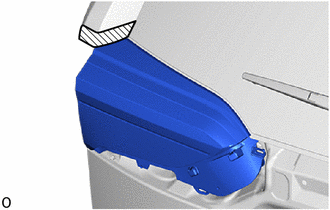

    1. Apply protective tape as shown in the illustration.
      GTY922885Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Protective Tape
    2. Disconnect the connector.
      GTY905303Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the 3 nuts.

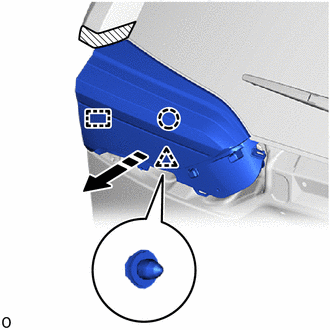

    4. Pull the rear light assembly LH toward the rear of the vehicle to detach the claw and clip and pin to remove it.
      GTY845731Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
