Removal [06/2020 - ]: Procedure

  1. REMOVE BACK DOOR OUTSIDE GARNISH SUB-ASSEMBLY

    Refer to REMOVAL [06/2020 - ]

  2. REMOVE LICENSE PLATE LIGHT ASSEMBLY

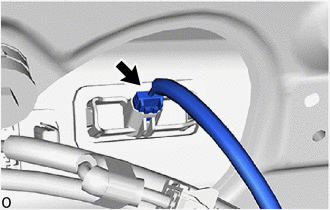

    1. Disconnect the connector.
      GTY940964Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Detach the claw to remove the license plate light assembly.
      GTY940966Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
