Installation [06/2020 - ]: Procedure

  1. INSTALL LICENSE PLATE LIGHT ASSEMBLY

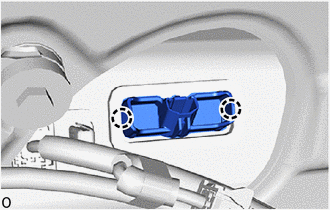

    1. Attach the claw to install the license plate light assembly.
      GTY940966Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Connect the connector.
  2. INSTALL BACK DOOR OUTSIDE GARNISH SUB-ASSEMBLY

    Refer to INSTALLATION [06/2020 - ]
