DTC B1508-19: Turn Signal/Hazard Flasher Circuit Current Above Threshold [10/2022 - ]: Wiring Diagram

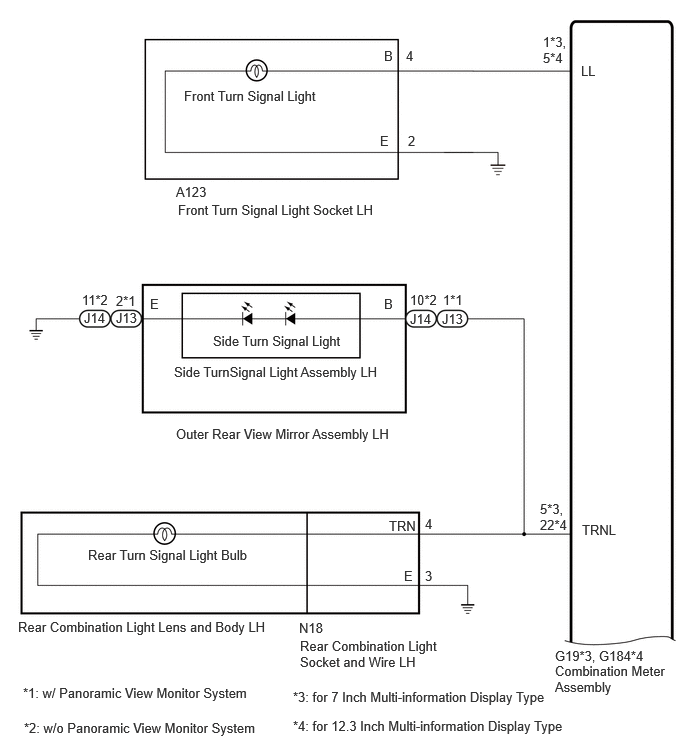

GTY1109993

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

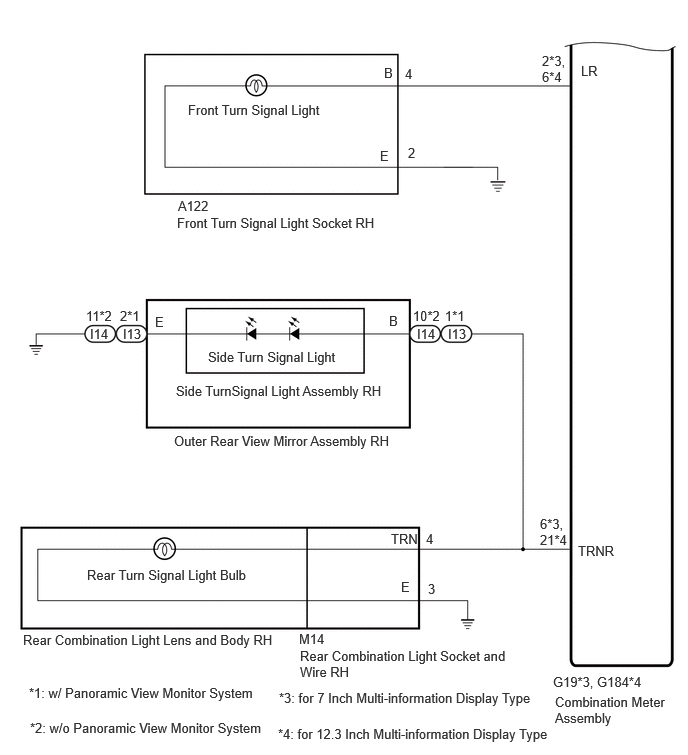

GTY1119170

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
