Meter / Gauge / Display - Service Information (PHEV)
>>
Light Control Rheostat
>>
Components [06/2020 - ]
Components [06/2020 - ]

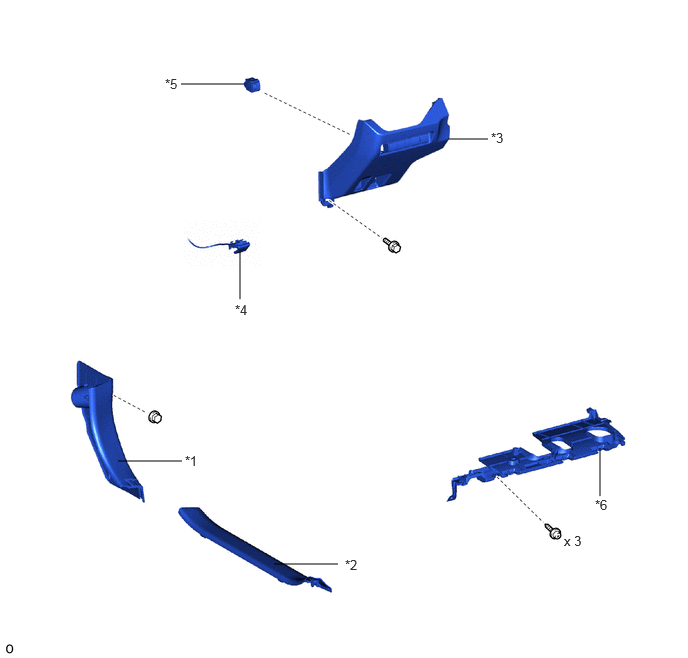

Fig 1: Light Control Rheostat Replacement Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1
COWL SIDE TRIM BOARD LH
*2
FRONT DOOR SCUFF PLATE LH
*3
FUSE BOX OPENING COVER
*4
HOOD LOCK CONTROL LEVER SUB-ASSEMBLY
*5
LIGHT CONTROL RHEOSTAT
*6
NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
