Reassembly [06/2020 - ]: Procedure

  1. INSTALL COMBINATION METER MIRROR PLATE

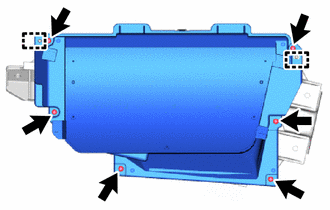

    1. Attach the guide to install the combination meter mirror plate with the 6 screws.
      GTY1177614Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL NO. 3 METER BRACKET SUB-ASSEMBLY

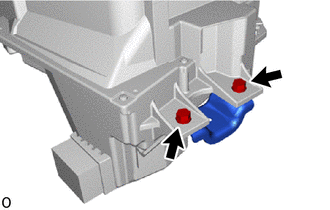

    1. Install the No. 3 meter bracket sub-assembly with the 2 bolts.
      GTY984083Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL NO. 2 METER BRACKET SUB-ASSEMBLY

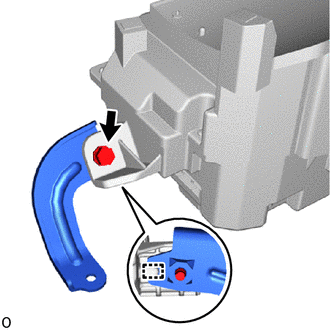

    1. Attach the guide.
      GTY984010Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the No. 2 meter bracket sub-assembly with the bolt.
