Installation [10/2022 - ]: Procedure

INSTALL COMBINATION METER ASSEMBLY

for 7 Inch display:

Connect the 2 connectors and attach the clamp.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

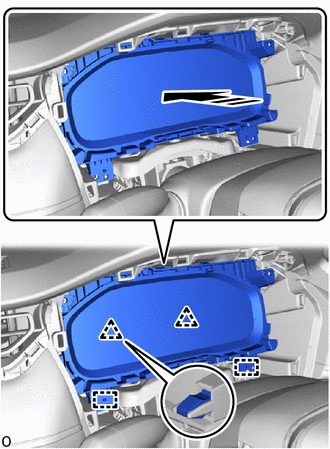

Attach the guide and clip to install the combination meter assembly.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Install in this Direction

Install the 4 screws in the order shown in the illustration.

Fig 1: Combination Meter Assembly Screws Tightening Sequence - For 7 Inch display
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

for 12.3 Inch display:

Connect the 2 connectors and attach the clamp.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Attach the guide and clip to install the combination meter assembly.

Install in this Direction

Install the 4 screws in the order shown in the illustration.

Fig 2: Combination Meter Assembly Screws Tightening Sequence - For 12.3 Inch Display
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

INSTALL INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY
Refer to PROCEDURE - Step 30
INSTALL INSTRUMENT CLUSTER FINISH PANEL GARNISH
Refer to PROCEDURE - Step 31
UPDATE ECU SECURITY KEY
NOTE:
When the combination meter assembly assembly is replaced, update the ECU security key.

Refer to UPDATE ECU SECURITY KEY [06/2020 - ]
