DTC C1622-87: Rear Camera Image Signal Missing Message [12/2022 - ]: Wiring Diagram

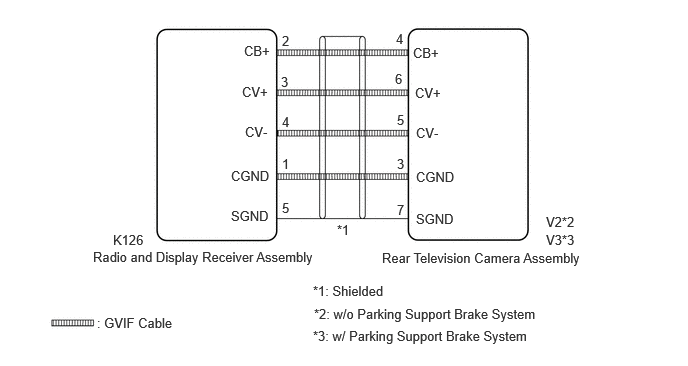

w/ Back Guide Monitor System

GTY1145133Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

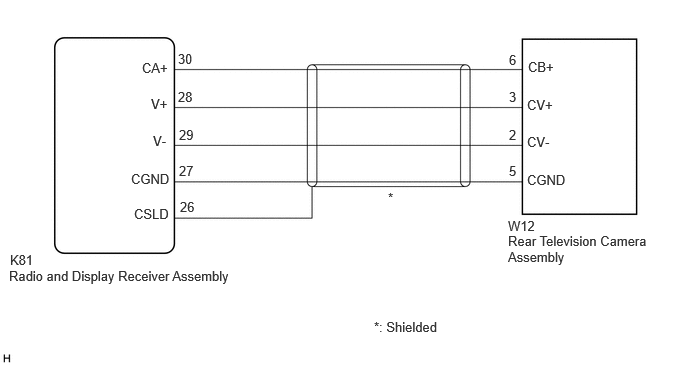

w/ Rear View Monitor System

GTY1159235Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
