Caution / Notice / Hint
The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed and installed, or replaced during rear trailing arm assembly removal/installation are shown below.
NECESSARY PROCEDURES AFTER PARTS REMOVED/INSTALLED/REPLACED
| Replaced Part or Performed Procedure |
Necessary Procedure |
Effect/Inoperative Function when Necessary Procedure not Performed |
Link |
| Rear wheel alignment adjustment |
Perform "Calibration" |
- DTCs are stored
- ABS warning light illuminates
- Brake system warning light (yellow indicator) illuminates
- Slip indicator light illuminates
- Electronically controlled brake system disabled or malfunctions
|
Refer to RESET MEMORY / CALIBRATION [12/2022 - ] |
| Tires |
- Initialization*1*2
- Tire Position Identification*1*2
|
Tire Pressure Warning System |
Refer to Procedures Necessary When Replacing Parts (for Tire Pressure Warning System)
Refer to WORK PROCEDURE [03/2023 - ] |
| Rear television camera assembly optical axis (Back camera position setting)*3 |
Parking Assist Monitor System |
Refer to CALIBRATION [12/2022 - ] |
| Parking assist ECU initialization*3 |
Panoramic View Monitor System |
Refer to CALIBRATION [12/2022 - ] |
| Advanced Park |
Refer to CALIBRATION [12/2022 - ] |
| Suspension parts |
Rear television camera assembly optical axis (Back camera position setting) |
Parking Assist Monitor System |
Refer to CALIBRATION [12/2022 - ] |
| Parking assist ECU initialization |
Panoramic View Monitor System |
Refer to CALIBRATION [12/2022 - ] |
| Advanced Park |
Refer to CALIBRATION [12/2022 - ] |
*1: Also necessary after performing a tire rotation.*2: It is not necessary to perform this procedure if the tire pressure warning valve and transmitters are installed to the same location.*3: The vehicle height changes because of suspension or tire replacement.

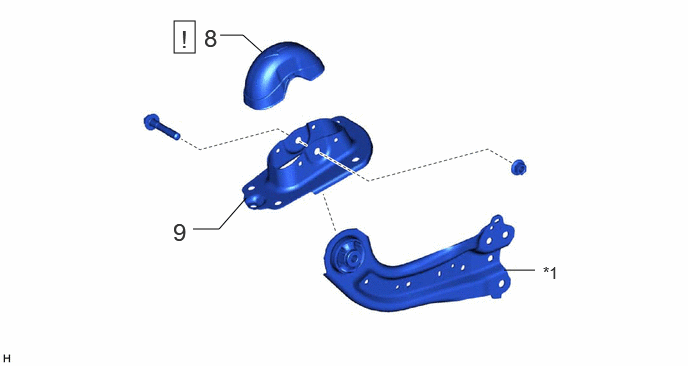

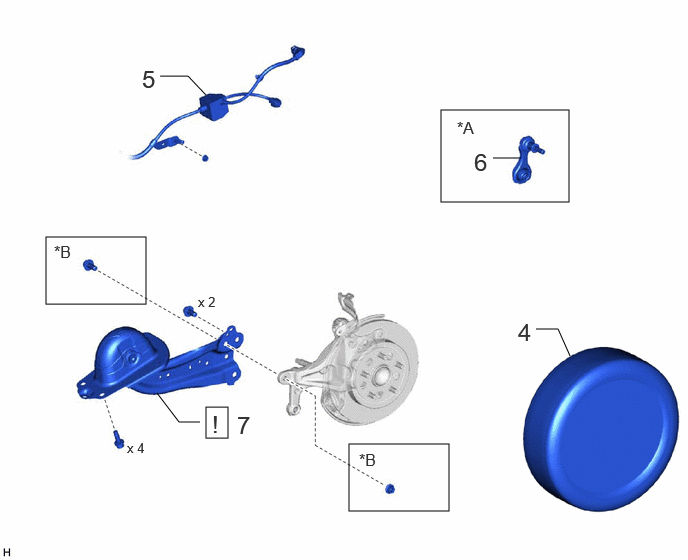

HINT:
- Use the same procedure for the RH and LH sides.
- The following procedure is for the LH side.
