COMPONENTS (INSTALLATION)

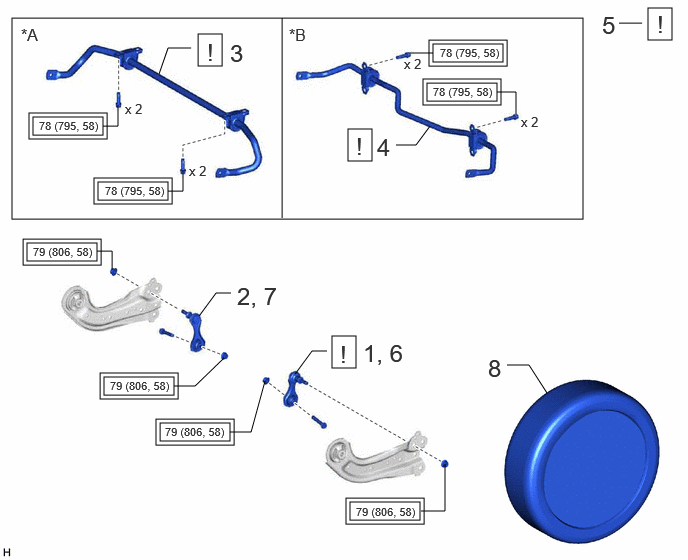

Fig 1: Rear Stabilizer Bar Installation Components With Torque Specifications [03/2023 - ] (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout - Procedure		Part Name Code
1	REAR STABILIZER LINK ASSEMBLY LH	48840A	See step 1	-	-
2	REAR STABILIZER LINK ASSEMBLY RH	48830D	-	-	-
3	REAR STABILIZER BAR (for HEV Model 2WD)	48812	See step 3	-	-
4	REAR STABILIZER BAR (for HEV Model AWD, PHEV Model)	48812	See step 4	-	-
5	STABILIZE SUSPENSION	-	See step 5	-	-
6	REAR STABILIZER LINK ASSEMBLY LH	48840A	See step 6	-	-
7	REAR STABILIZER LINK ASSEMBLY RH	48830D	-	-	-
8	REAR WHEEL	-	-	-	-

*A	for HEV Model 2WD	*B	for HEV Model AWD, PHEV Model
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": Nm (kgfcm, ft.*lbf)	-	-

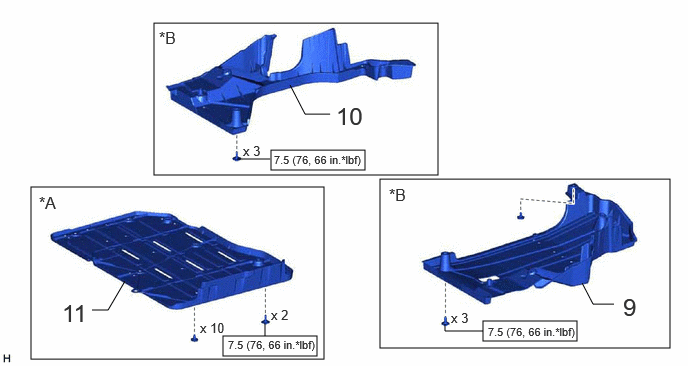

Fig 2: Rear Stabilizer Bar Installation Components With Torque Specifications [03/2023 - ] (2 Of 2)

Callout - Procedure		Part Name Code
9	REAR FLOOR SIDE MEMBER COVER LH	57628E	-	-	-
10	REAR FLOOR SIDE MEMBER COVER RH	57627G	-	-	-
11	BATTERY BOX COVER	58219K	-	-	-

*A	for PHEV Model	*B	for HEV Model
	Nm (kgfcm, ft.*lbf): Specified torque	-	-
