Caution / Notice / Hint

COMPONENTS (INSTALLATION)

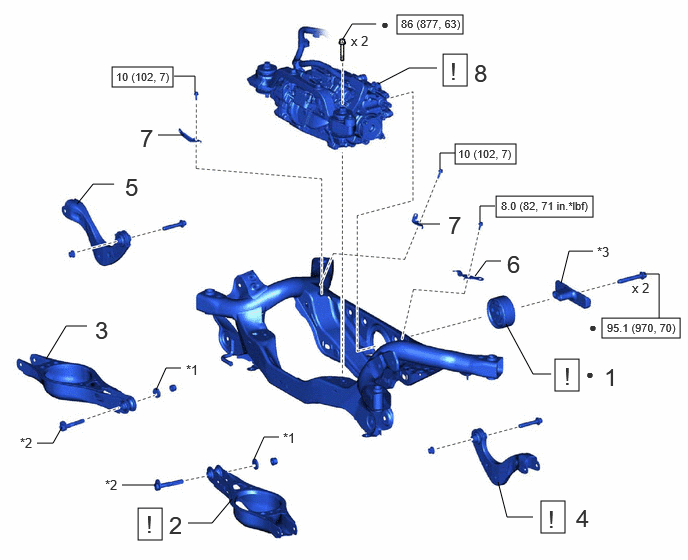

Fig 1: Rear Suspension Member (For AWD) Installation Components With Torque Specifications (1 Of 11)
GTY1149794Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout - Procedure Part Name Code
1 DIFFERENTIAL MOUNT CUSHION 41651G See step  1 - -
2 REAR NO. 2 SUSPENSION ARM ASSEMBLY LH 48740F See step  2 - -
3 REAR NO. 2 SUSPENSION ARM ASSEMBLY RH 48730F - - -
4 REAR UPPER CONTROL ARM ASSEMBLY LH 48790 See step  4 - -
5 REAR UPPER CONTROL ARM ASSEMBLY RH 48770A - - -
6 WIRE HARNESS CLAMP BRACKET - - - -
7 MOTOR CABLE BRACKET - - - -
8 REAR TRACTION MOTOR WITH TRANSAXLE ASSEMBLY G1050 See step  8 - -
*1 NO. 2 CAMBER ADJUST CAM *2 REAR SUSPENSION TOE ADJUST CAM SUB-ASSEMBLY
*3 DIFFERENTIAL MASS DAMPER - -
N*m (kgf*cm, ft.*lbf): Specified torque • Non-reusable part

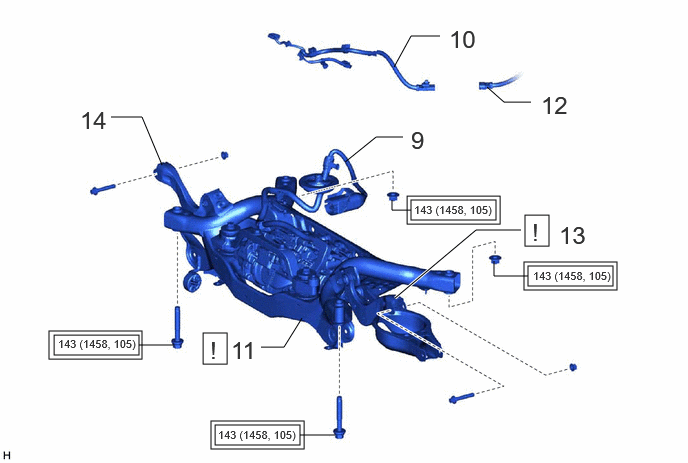

Fig 2: Rear Suspension Member (For AWD) Installation Components With Torque Specifications (2 Of 11)
GTY1206456Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout - Procedure Part Name Code
9 REAR TRACTION MOTOR CABLE G1149 - - -
10 NO. 6 FLOOR WIRE 82169A - - -
11 REAR SUSPENSION MEMBER SUB-ASSEMBLY 51206A See step  11 - -
12 FRAME WIRE - - - -
13 REAR UPPER CONTROL ARM ASSEMBLY LH 48790 See step  13 - -
14 REAR UPPER CONTROL ARM ASSEMBLY RH 48770A - - -
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) - -

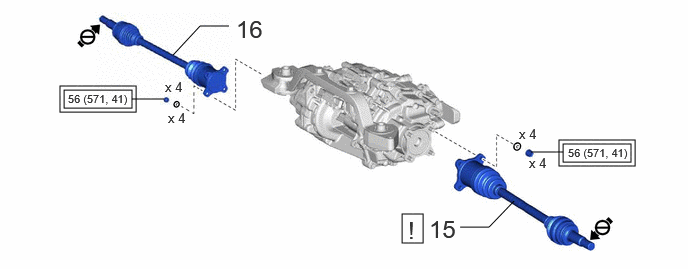

Fig 3: Rear Suspension Member (For AWD) Installation Components With Torque Specifications (3 Of 11)
GTY1153954Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout - Procedure Part Name Code
15 REAR DRIVE SHAFT ASSEMBLY LH 42340B See step  15 - -
16 REAR DRIVE SHAFT ASSEMBLY RH 42330 - - -
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) Do not apply lubricants to the threaded parts

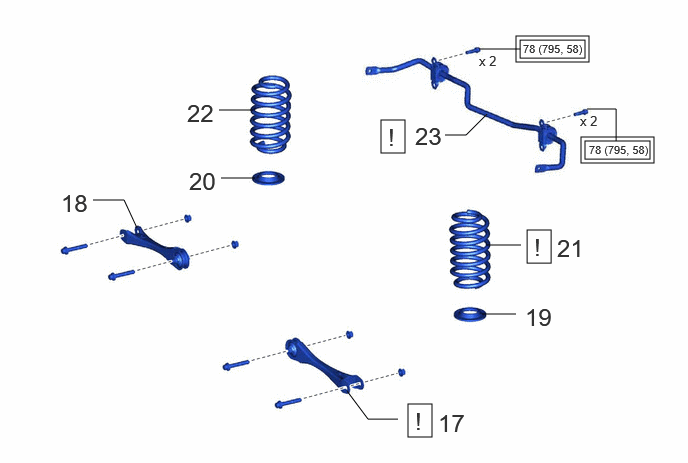

Fig 4: Rear Suspension Member (For AWD) Installation Components With Torque Specifications (4 Of 11)
GTY1207524Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout - Procedure Part Name Code
17 REAR NO. 1 SUSPENSION ARM ASSEMBLY LH 48720A See step  17 - -
18 REAR NO. 1 SUSPENSION ARM ASSEMBLY RH 48710A - - -
19 REAR LOWER COIL SPRING INSULATOR LH 48258C - - -
20 REAR LOWER COIL SPRING INSULATOR RH 48258B - - -
21 REAR COIL SPRING LH 48231B See step  21 - -
22 REAR COIL SPRING RH 48231A - - -
23 REAR STABILIZER BAR 48812 See step  23 - -
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) - -

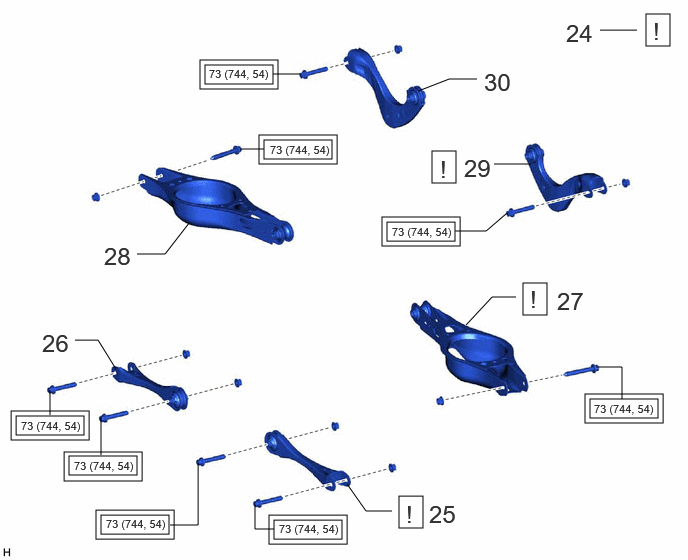

Fig 5: Rear Suspension Member (For AWD) Installation Components With Torque Specifications (5 Of 11)
GTY1160195Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout - Procedure Part Name Code
24 STABILIZE SUSPENSION - See step  24 - -
25 REAR NO. 1 SUSPENSION ARM ASSEMBLY LH 48720A See step  25 - -
26 REAR NO. 1 SUSPENSION ARM ASSEMBLY RH 48710A - - -
27 REAR NO. 2 SUSPENSION ARM ASSEMBLY LH 48740F See step  27 - -
28 REAR NO. 2 SUSPENSION ARM ASSEMBLY RH 48730F - - -
29 REAR UPPER CONTROL ARM ASSEMBLY LH 48790 See step  29 - -
30 REAR UPPER CONTROL ARM ASSEMBLY RH 48770A - - -
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) - -

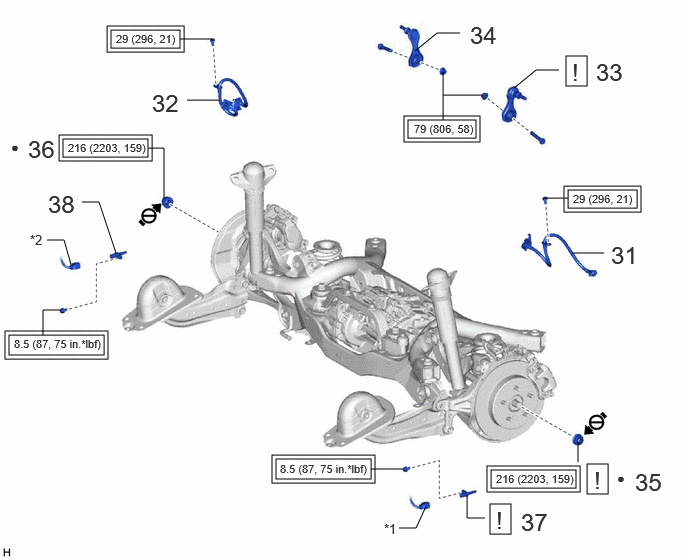

Fig 6: Rear Suspension Member (For AWD) Installation Components With Torque Specifications (6 Of 11)
GTY1158514Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout - Procedure Part Name Code
31 REAR FLEXIBLE HOSE LH 47319F - - -
32 REAR FLEXIBLE HOSE RH 47318F - - -
33 REAR STABILIZER LINK ASSEMBLY LH 48840A See step  33 - -
34 REAR STABILIZER LINK ASSEMBLY RH 48830D - - -
35 REAR AXLE SHAFT NUT (for LH Side) 42312B See step  35 - -
36 REAR AXLE SHAFT NUT (for RH Side) 42312B - - -
37 REAR SKID CONTROL SENSOR LH 89544E See step  37 - -
38 REAR SKID CONTROL SENSOR RH 89544D - - -
*1 NO. 2 PARKING BRAKE WIRE ASSEMBLY *2 NO. 1 PARKING BRAKE WIRE ASSEMBLY
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) Do not apply lubricants to the threaded parts
• Non-reusable part - -

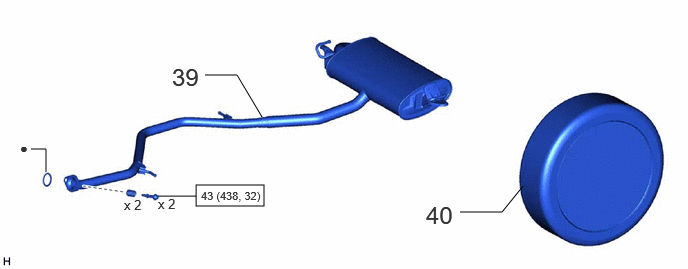

Fig 7: Rear Suspension Member (For AWD) Installation Components With Torque Specifications (7 Of 11)
GTY1139019Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout - Procedure Part Name Code
39 TAIL EXHAUST PIPE ASSEMBLY 17430 - - -
40 REAR WHEEL - - - -
N*m (kgf*cm, ft.*lbf): Specified torque • Non-reusable part

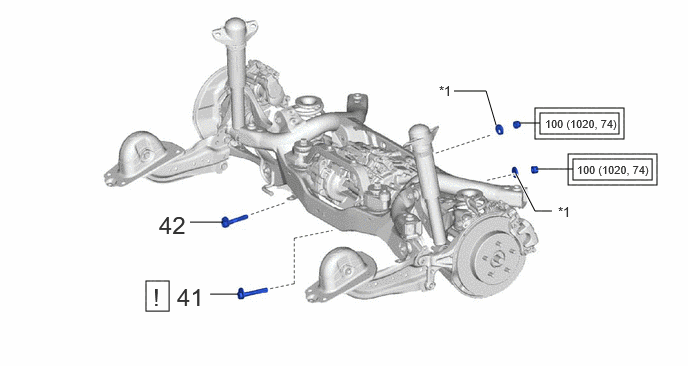

Fig 8: Rear Suspension Member (For AWD) Installation Components With Torque Specifications (8 Of 11)
GTY1148566Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout - Procedure Part Name Code
41 REAR SUSPENSION TOE ADJUST CAM SUB-ASSEMBLY (for LH Side) 48409 See step  41 - -
42 REAR SUSPENSION TOE ADJUST CAM SUB-ASSEMBLY (for RH Side) 48409 - - -
*1 NO. 2 CAMBER ADJUST CAM - -
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) - -

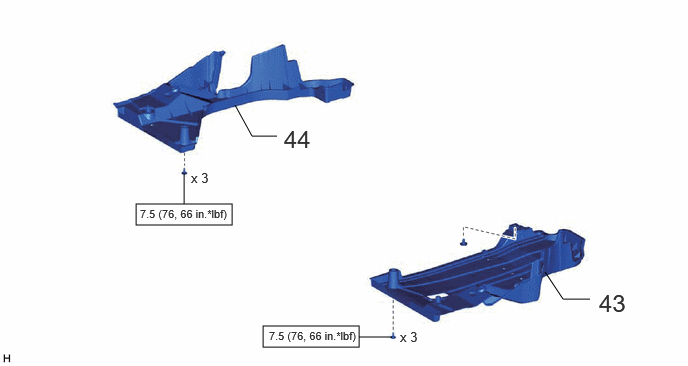

Fig 9: Rear Suspension Member (For AWD) Installation Components With Torque Specifications (9 Of 11)
GTY1150102Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout - Procedure Part Name Code
43 REAR FLOOR SIDE MEMBER COVER LH 57628E - - -
44 REAR FLOOR SIDE MEMBER COVER RH 57627G - - -
N*m (kgf*cm, ft.*lbf): Specified torque - -

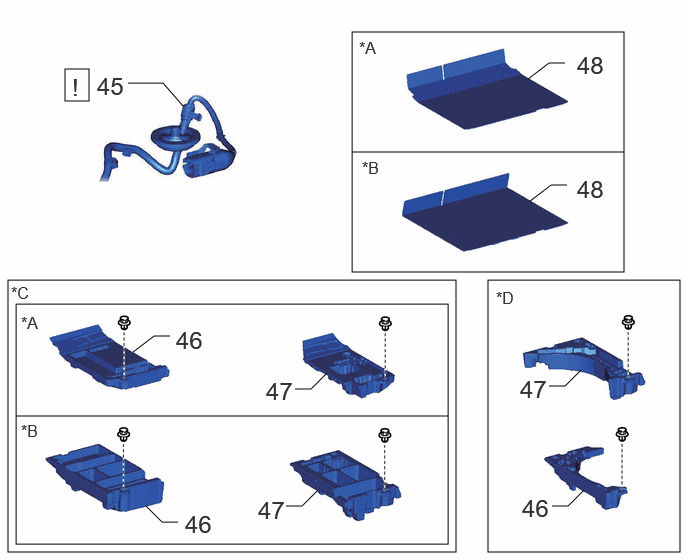

Fig 10: Rear Suspension Member (For AWD) Installation Components (10 Of 11)
GTY1141451Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout - Procedure Part Name Code
45 REAR TRACTION MOTOR CABLE G1149 See step  45 - -
46 DECK FLOOR BOX LH 64997 - - -
47 DECK FLOOR BOX RH 64995 - - -
48 DECK BOARD ASSEMBLY 58410B - - -
*A for Type A *B for Type B
*C w/o Spare Tire *D w/ Spare Tire

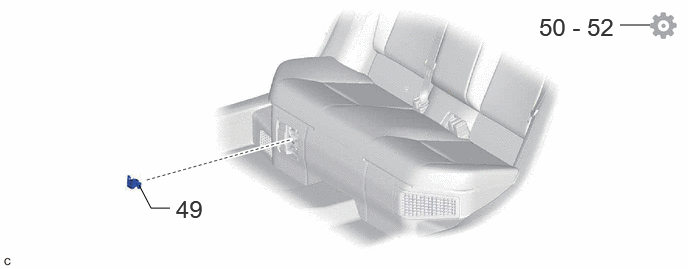

Fig 11: Rear Suspension Member (For AWD) Installation Components (11 Of 11)
GTY1153930Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout - Procedure Part Name Code
49 SERVICE PLUG GRIP G3834 - - -
50 INSPECT FOR EXHAUST GAS LEAK - - - See step  50
51 INSPECT AND ADJUST REAR WHEEL ALIGNMENT - - - See step  51
52 PERFORM INITIALIZATION - - - See step  52
