Caution / Notice / Hint

COMPONENTS (INSTALLATION)

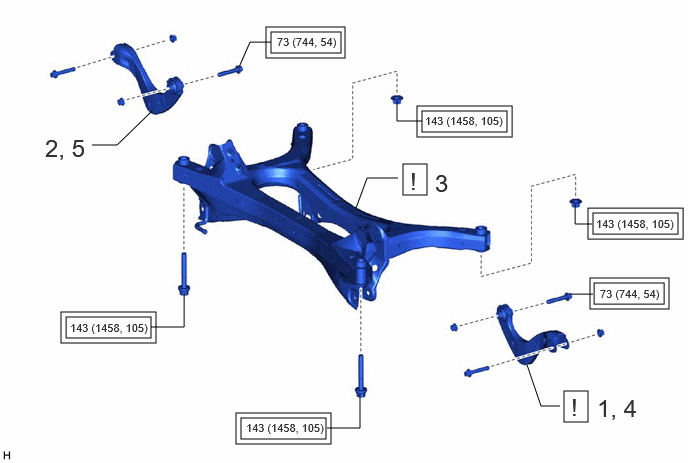

Fig 1: Rear Suspension Member (For 2WD) Installation Components With Torque Specifications [12/2022 - 03/2023] (1 Of 7)
GTY1149894Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout - Procedure Part Name Code
1 INSTALL REAR UPPER CONTROL ARM ASSEMBLY LH 48790 See step  1 - -
2 INSTALL REAR UPPER CONTROL ARM ASSEMBLY RH 48770A - - -
3 REAR SUSPENSION MEMBER SUB-ASSEMBLY 51206A See step  3 - -
4 TEMPORARILY INSTALL REAR UPPER CONTROL ARM ASSEMBLY LH 48790 See step  4 - -
5 TEMPORARILY INSTALL REAR UPPER CONTROL ARM ASSEMBLY RH 48770A - - -
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) - -

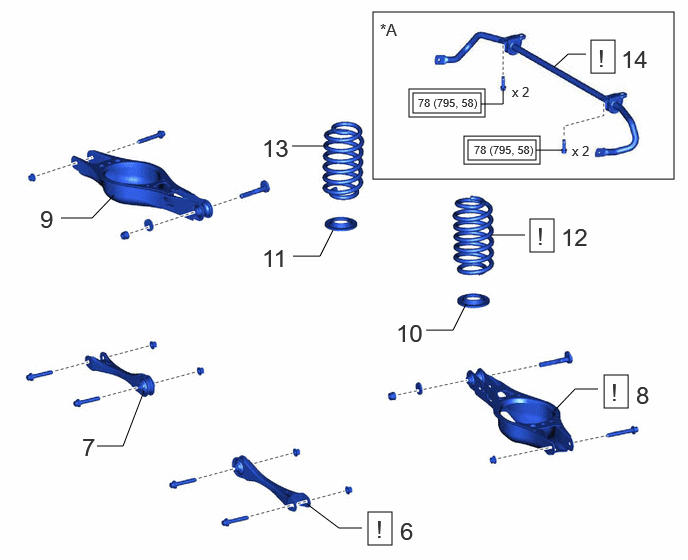

Fig 2: Rear Suspension Member (For 2WD) Installation Components With Torque Specifications [12/2022 - 03/2023] (2 Of 7)
GTY1159730Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout - Procedure Part Name Code
6 REAR NO. 1 SUSPENSION ARM ASSEMBLY LH 48720A See step  6 - -
7 REAR NO. 1 SUSPENSION ARM ASSEMBLY RH 48710A - - -
8 REAR NO. 2 SUSPENSION ARM ASSEMBLY LH 48740F See step  8 - -
9 REAR NO. 2 SUSPENSION ARM ASSEMBLY RH 48730F - - -
10 REAR LOWER COIL SPRING INSULATOR LH 48258C - - -
11 REAR LOWER COIL SPRING INSULATOR RH 48258B - - -
12 REAR COIL SPRING LH 48231B See step  12 - -
13 REAR COIL SPRING RH 48231A - - -
14 REAR STABILIZER BAR 48812 See step  14 - -
*A w/ Stabilizer Bar - -
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) - -

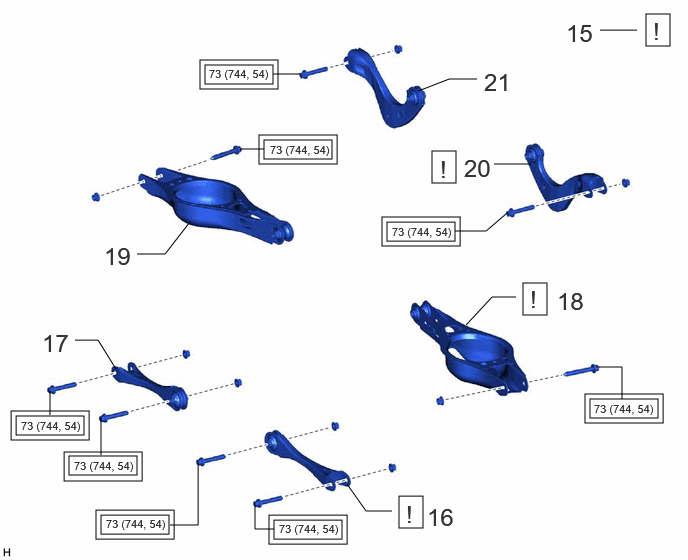

Fig 3: Rear Suspension Member (For 2WD) Installation Components With Torque Specifications [12/2022 - 03/2023] (3 Of 7)
GTY1160193Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout - Procedure Part Name Code
15 STABILIZE SUSPENSION - See step  15 - -
16 REAR NO. 1 SUSPENSION ARM ASSEMBLY LH 48720A See step  16 - -
17 REAR NO. 1 SUSPENSION ARM ASSEMBLY RH 48710A - - -
18 REAR NO. 2 SUSPENSION ARM ASSEMBLY LH 48740F See step  18 - -
19 REAR NO. 2 SUSPENSION ARM ASSEMBLY RH 48730F - - -
20 REAR UPPER CONTROL ARM ASSEMBLY LH 48790 See step  20 - -
21 REAR UPPER CONTROL ARM ASSEMBLY RH 48770A - - -
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) - -

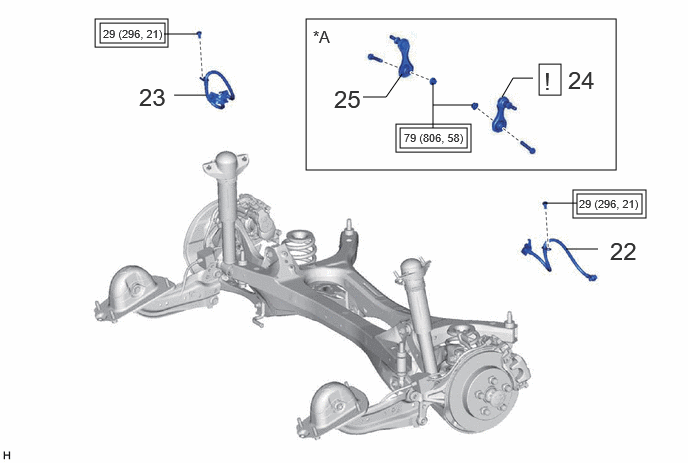

Fig 4: Rear Suspension Member (For 2WD) Installation Components With Torque Specifications [12/2022 - 03/2023] (4 Of 7)
GTY1151430Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout - Procedure Part Name Code
22 REAR FLEXIBLE HOSE LH 47319F - - -
23 REAR FLEXIBLE HOSE RH 47318F - - -
24 REAR STABILIZER LINK ASSEMBLY LH 48840A See step  24 - -
25 REAR STABILIZER LINK ASSEMBLY RH 48830D - - -
*A w/ Stabilizer Bar - -
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) - -

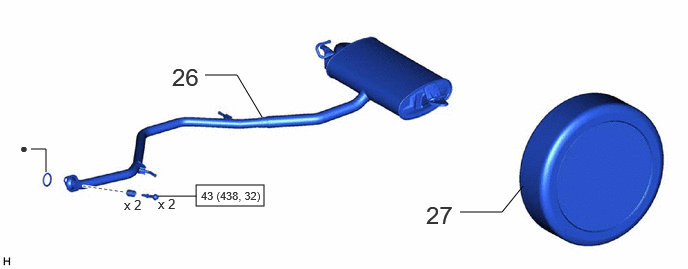

Fig 5: Rear Suspension Member (For 2WD) Installation Components With Torque Specifications [12/2022 - 03/2023] (5 Of 7)
GTY1157891Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout - Procedure Part Name Code
26 TAIL EXHAUST PIPE ASSEMBLY 17430 - - -
27 REAR WHEEL - - - -
N*m (kgf*cm, ft.*lbf): Specified torque • Non-reusable part

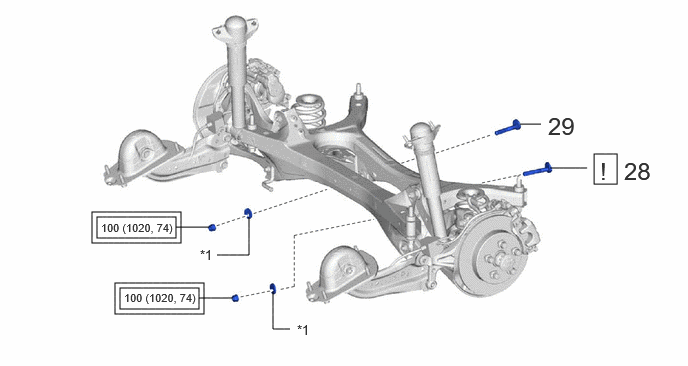

Fig 6: Rear Suspension Member (For 2WD) Installation Components With Torque Specifications [12/2022 - 03/2023] (6 Of 7)
GTY1141702Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout - Procedure Part Name Code
28 REAR SUSPENSION TOE ADJUST CAM SUB-ASSEMBLY (for LH Side) 48409 See step  28 - -
29 REAR SUSPENSION TOE ADJUST CAM SUB-ASSEMBLY (for RH Side) 48409 - - -
*1 NO. 2 CAMBER ADJUST CAM - -
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) - -

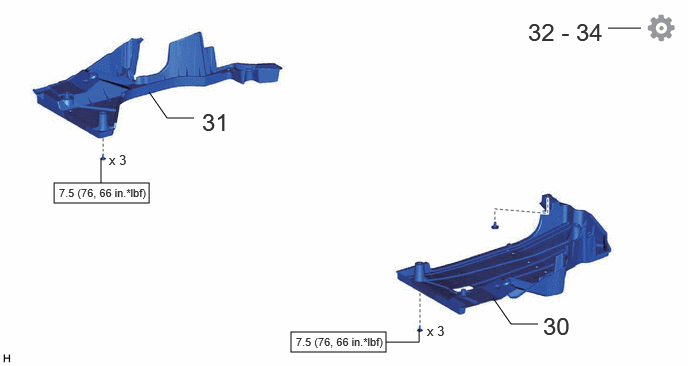

Fig 7: Rear Suspension Member (For 2WD) Installation Components With Torque Specifications [12/2022 - 03/2023] (7 Of 7)
GTY1152052Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout - Procedure Part Name Code
30 REAR FLOOR SIDE MEMBER COVER LH 57628E - - -
31 REAR FLOOR SIDE MEMBER COVER RH 57627G - - -
32 INSPECT FOR EXHAUST GAS LEAK - - - See step  32
33 INSPECT AND ADJUST REAR WHEEL ALIGNMENT - - - See step  33
34 PERFORM INITIALIZATION - - - See step  34
N*m (kgf*cm, ft.*lbf): Specified torque - -
