Caution / Notice / Hint

COMPONENTS (INSTALLATION)

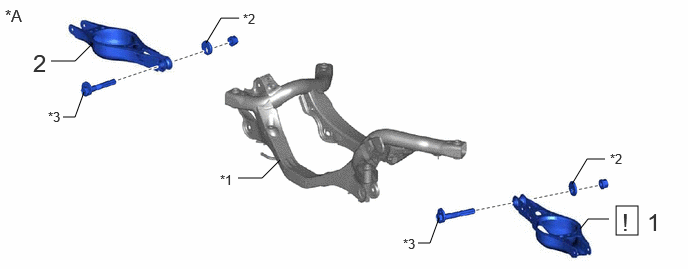

Fig 1: Rear Suspension Member (For 2WD) Installation Components [03/2023 - ] (1 Of 8)
GTY1148699Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout - Procedure Part Name Code
1 REAR NO. 2 SUSPENSION ARM ASSEMBLY LH 48740F See step  1 - -
2 REAR NO. 2 SUSPENSION ARM ASSEMBLY RH 48730F - - -
*A for PHEV Model - -
*1 REAR SUSPENSION MEMBER SUB-ASSEMBLY *2 NO. 2 CAMBER ADJUST CAM
*3 REAR SUSPENSION TOE ADJUST CAM SUB-ASSEMBLY - -

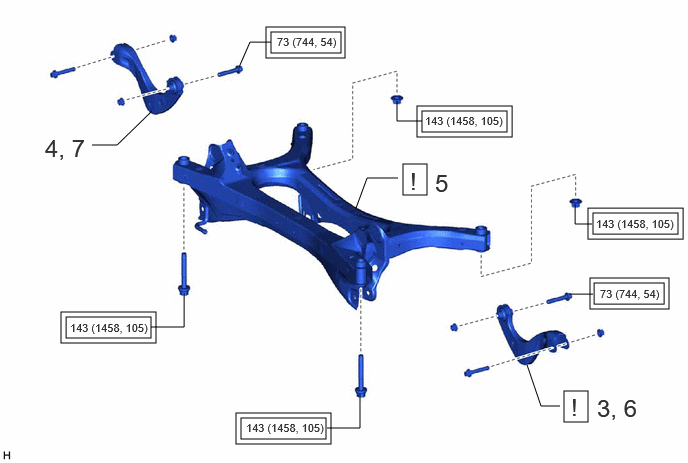

Fig 2: Rear Suspension Member (For 2WD) Installation Components With Torque Specifications [03/2023 - ] (2 Of 8)
GTY1149897Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout - Procedure Part Name Code
3 INSTALL REAR UPPER CONTROL ARM ASSEMBLY LH 48790 See step  3 - -
4 INSTALL REAR UPPER CONTROL ARM ASSEMBLY RH 48770A - - -
5 REAR SUSPENSION MEMBER SUB-ASSEMBLY 51206A See step  5 - -
6 TEMPORARILY INSTALL REAR UPPER CONTROL ARM ASSEMBLY LH 48790 See step  6 - -
7 TEMPORARILY INSTALL REAR UPPER CONTROL ARM ASSEMBLY RH 48770A - - -
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) - -

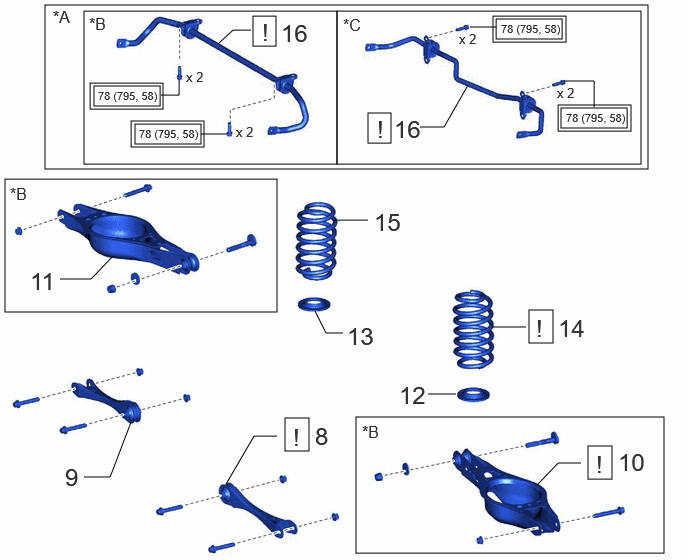

Fig 3: Rear Suspension Member (For 2WD) Installation Components With Torque Specifications [03/2023 - ] (3 Of 8)
GTY1207284Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout - Procedure Part Name Code
8 REAR NO. 1 SUSPENSION ARM ASSEMBLY LH 48720A See step  8 - -
9 REAR NO. 1 SUSPENSION ARM ASSEMBLY RH 48710A - - -
10 REAR NO. 2 SUSPENSION ARM ASSEMBLY LH 48740F See step  10 - -
11 REAR NO. 2 SUSPENSION ARM ASSEMBLY RH 48730F - - -
12 REAR LOWER COIL SPRING INSULATOR LH 48258C - - -
13 REAR LOWER COIL SPRING INSULATOR RH 48258B - - -
14 REAR COIL SPRING LH 48231B See step  14 - -
15 REAR COIL SPRING RH 48231A - - -
16 REAR STABILIZER BAR 48812 See step  16 - -
*A w/ Stabilizer Bar *B for HEV Model
*C for PHEV Model - -
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) - -

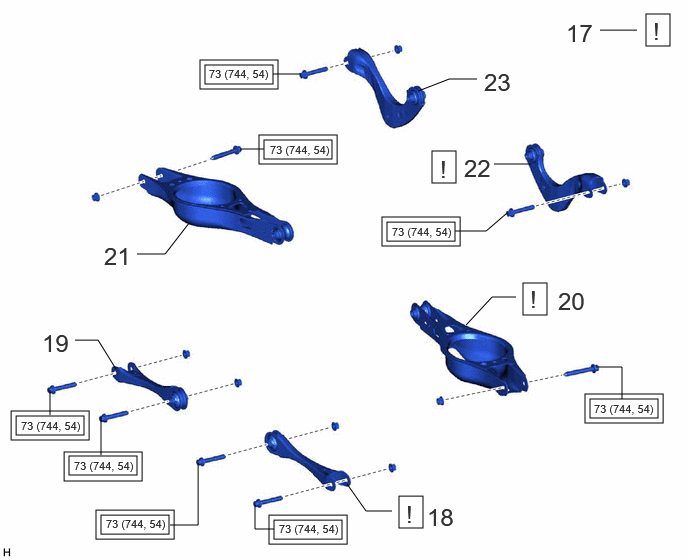

Fig 4: Rear Suspension Member (For 2WD) Installation Components With Torque Specifications [03/2023 - ] (4 Of 8)
GTY1160192Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout - Procedure Part Name Code
17 STABILIZE SUSPENSION - See step  17 - -
18 REAR NO. 1 SUSPENSION ARM ASSEMBLY LH 48720A See step  18 - -
19 REAR NO. 1 SUSPENSION ARM ASSEMBLY RH 48710A - - -
20 REAR NO. 2 SUSPENSION ARM ASSEMBLY LH 48740F See step  20 - -
21 REAR NO. 2 SUSPENSION ARM ASSEMBLY RH 48730F - - -
22 REAR UPPER CONTROL ARM ASSEMBLY LH 48790 See step  22 - -
23 REAR UPPER CONTROL ARM ASSEMBLY RH 48770A - - -
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) - -

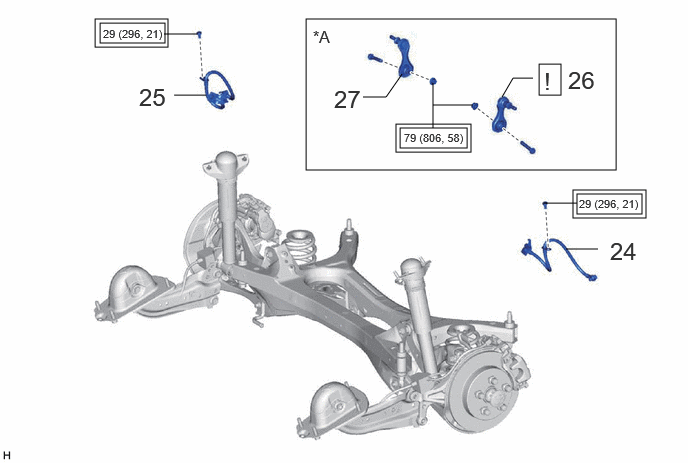

Fig 5: Rear Suspension Member (For 2WD) Installation Components With Torque Specifications [03/2023 - ] (5 Of 8)
GTY1151429Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout - Procedure Part Name Code
24 REAR FLEXIBLE HOSE LH 47319F - - -
25 REAR FLEXIBLE HOSE RH 47318F - - -
26 REAR STABILIZER LINK ASSEMBLY LH 48840A See step  26 - -
27 REAR STABILIZER LINK ASSEMBLY RH 48830D - - -
*A w/ Stabilizer Bar - -
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) - -

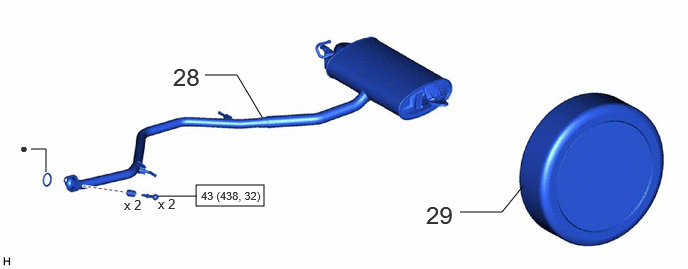

Fig 6: Rear Suspension Member (For 2WD) Installation Components With Torque Specifications [03/2023 - ] (6 Of 8)
GTY1139021Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout - Procedure Part Name Code
28 TAIL EXHAUST PIPE ASSEMBLY 17430 - - -
29 REAR WHEEL - - - -
N*m (kgf*cm, ft.*lbf): Specified torque • Non-reusable part

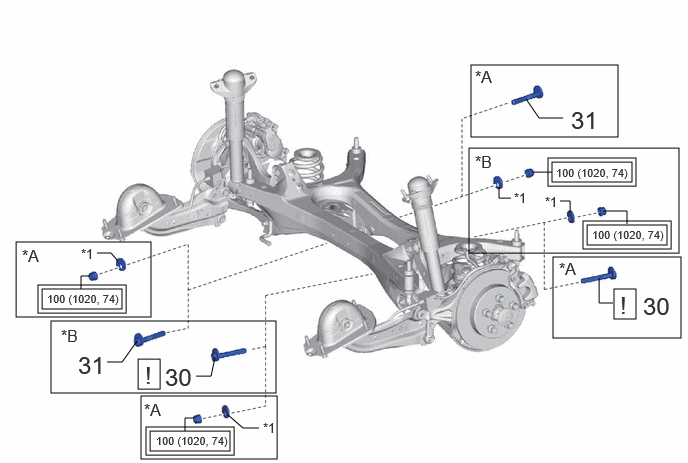

Fig 7: Rear Suspension Member (For 2WD) Installation Components With Torque Specifications [03/2023 - ] (7 Of 8)
GTY1143475Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout - Procedure Part Name Code
30 REAR SUSPENSION TOE ADJUST CAM SUB-ASSEMBLY (for LH Side) 48409 See step  30 - -
31 REAR SUSPENSION TOE ADJUST CAM SUB-ASSEMBLY (for RH Side) 48409 - - -
*A for HEV Model *B for PHEV Model
*1 NO. 2 CAMBER ADJUST CAM - -
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) - -

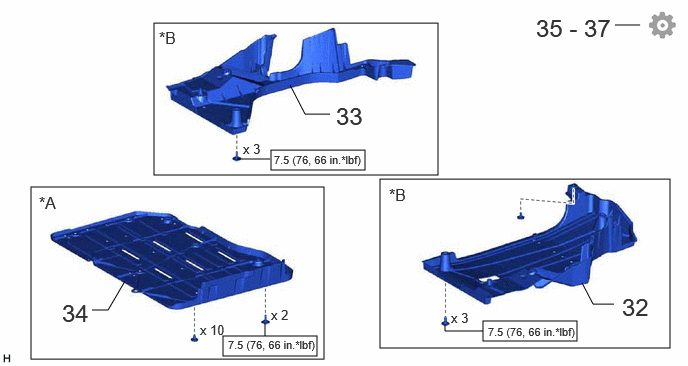

Fig 8: Rear Suspension Member (For 2WD) Installation Components With Torque Specifications [03/2023 - ] (8 Of 8)
GTY1142391Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout - Procedure Part Name Code
32 REAR FLOOR SIDE MEMBER COVER LH 57628E - - -
33 REAR FLOOR SIDE MEMBER COVER RH 57627G - - -
34 BATTERY BOX COVER 58219K   - -
35 INSPECT FOR EXHAUST GAS LEAK - - - See step  35
36 INSPECT AND ADJUST REAR WHEEL ALIGNMENT - - - See step  36
37 PERFORM INITIALIZATION - - - See step  37
*A for PHEV Model *B for HEV Model
N*m (kgf*cm, ft.*lbf): Specified torque - -
