Removal [03/2023 - ]: Procedure

for 2WD: Refer to REMOVAL [03/2023 - ]

for AWD: Refer to REMOVAL [03/2023 - ]

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

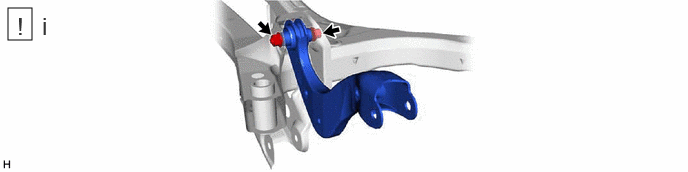

   1. Remove the bolt, nut and rear upper control arm assembly LH from the rear suspension member sub-assembly.
      NOTE:

      Because the nut has its own stopper, do not turn the nut. Loosen the bolt with the nut secured.

1. Perform the same procedure as for the LH side.
