Caution / Notice / Hint

HINT:

• Use the same procedure for the RH side and LH side.
• The following procedure is for the LH side.

COMPONENTS (INSTALLATION)

Fig 1: Rear Shock Absorber Installation Components With Torque Specifications [12/2022 - 03/2023] (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout - Procedure		Part Name Code
1	REAR SUSPENSION SUPPORT ASSEMBLY	48760B	See step  1	-	-
2	REAR SHOCK ABSORBER CAP	48554A	-	-	-

*1	REAR SHOCK ABSORBER ASSEMBLY	-	-
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf)	*	For use with SST
•	Non-reusable part		Adhesive 1324
*	Precoated part	-	-

Fig 2: Rear Shock Absorber Installation Components With Torque Specifications [12/2022 - 03/2023] (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout - Procedure		Part Name Code
3	TEMPORARILY INSTALL REAR SHOCK ABSORBER ASSEMBLY	48540	See step  3	-	-
4	STABILIZE SUSPENSION	-	See step  4	-	-
5	REAR UPPER CONTROL ARM ASSEMBLY	48790	See step  5	-	-
6	CONNECT REAR SHOCK ABSORBER ASSEMBLY	48540	See step  6	-	-
7	INSTALL REAR SHOCK ABSORBER ASSEMBLY	48540	See step  7	-	-
8	REAR STABILIZER LINK ASSEMBLY	48840A	-	-	-
9	REAR WHEEL	-	-	-	-

*A	w/ Stabilizer Bar	-	-
*1	PLATE WASHER	-	-
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf)	-	-
*	For use with a ball joint lock nut wrench	-	-

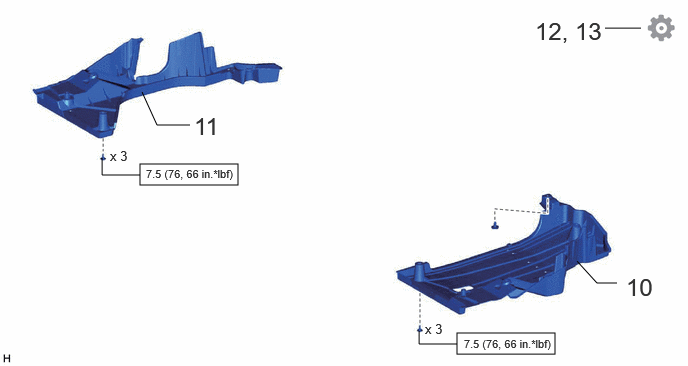

Fig 3: Rear Shock Absorber Installation Components With Torque Specifications [12/2022 - 03/2023] (3 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout - Procedure		Part Name Code
10	REAR FLOOR SIDE MEMBER COVER LH	57628E	-	-	-
11	REAR FLOOR SIDE MEMBER COVER RH	57627G	-	-	-
12	INSPECT AND ADJUST REAR WHEEL ALIGNMENT	-	-	-	See step  12
13	PERFORM INITIALIZATION	-	-	-	See step  13

N*m (kgf*cm, ft.*lbf): Specified torque

-

-
