Caution / Notice / Hint
The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed and installed, or replaced during rear coil spring removal/installation are shown below.
NECESSARY PROCEDURES AFTER PARTS REMOVED/INSTALLED/REPLACED
| Replaced Part or Performed Procedure | Necessary Procedure | Effect/Inoperative Function when Necessary Procedure not Performed | Link |
|---|---|---|---|
| Rear wheel alignment adjustment | Perform "Calibration" |
|
Refer to RESET MEMORY / CALIBRATION [12/2022 - ] |
| Tires |
|
Tire Pressure Warning System | Refer to Procedures Necessary When Replacing Parts (for Tire Pressure Warning System) Refer to WORK PROCEDURE [12/2022 - 03/2023] |
| Rear television camera assembly optical axis (Back camera position setting)*3 | Parking Assist Monitor System | Refer to CALIBRATION [12/2022 - ] | |
| Parking assist ECU initialization*3 | Panoramic View Monitor System | Refer to CALIBRATION [12/2022 - ] | |
| Advanced Park | Refer to CALIBRATION [12/2022 - ] | ||
| Suspension parts | Rear television camera assembly optical axis (Back camera position setting) | Parking Assist Monitor System | Refer to CALIBRATION [12/2022 - ] |
| Parking assist ECU initialization | Panoramic View Monitor System | Refer to CALIBRATION [12/2022 - ] | |
| Advanced Park | Refer to CALIBRATION [12/2022 - ] |
*1: Also necessary after performing a tire rotation.*2: It is not necessary to perform this procedure if the tire pressure warning valve and transmitters are installed to the same location.*3: The vehicle height changes because of suspension or tire replacement.
HINT:
- Use the same procedure for the RH and LH sides.
- The following procedure is for the LH side.
COMPONENTS (REMOVAL)

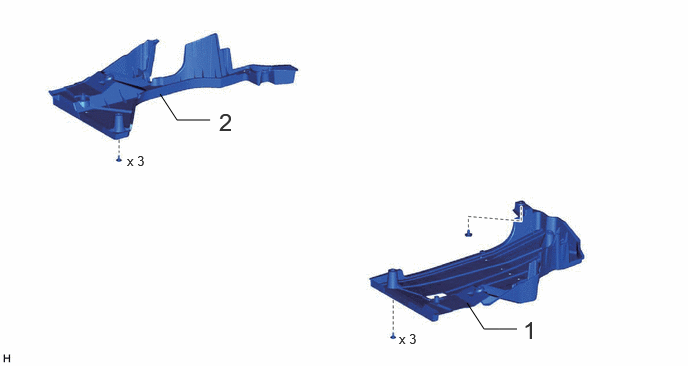

| Callout - Procedure | Part Name Code | ||||
|---|---|---|---|---|---|
| 1 | REAR FLOOR SIDE MEMBER COVER LH | 57628E | - | - | - |
| 2 | REAR FLOOR SIDE MEMBER COVER RH | 57627G | - | - | - |

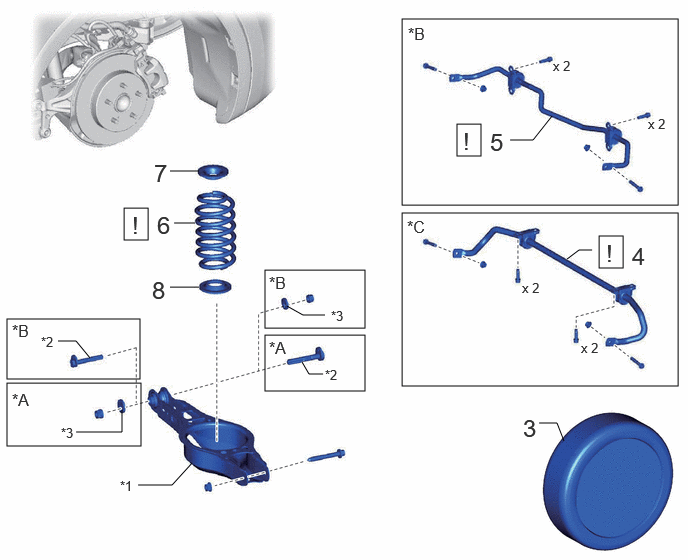

| Callout - Procedure | Part Name Code | ||||
|---|---|---|---|---|---|
| 3 | REAR WHEEL | - | - | - | - |
| 4 | REAR STABILIZER BAR (for 2WD with Stabilizer Bar) | 48812 | See step 4 | - | - |
| 5 | REAR STABILIZER BAR (for AWD) | 48812 | See step 5 | - | - |
| 6 | REAR COIL SPRING | 48231B | See step 6 | - | - |
| 7 | REAR UPPER COIL SPRING INSULATOR | 48259A | - | - | - |
| 8 | REAR LOWER COIL SPRING INSULATOR | 48258C | - | - | - |
| *A | for 2WD | *B | for AWD |
| *C | for 2WD with Stabilizer Bar | - | - |
| *1 | REAR NO. 2 SUSPENSION ARM ASSEMBLY | *2 | REAR SUSPENSION TOE ADJUST CAM SUB-ASSEMBLY |
| *3 | NO. 2 CAMBER ADJUST CAM | - | - |
