COMPONENTS (INSTALLATION)

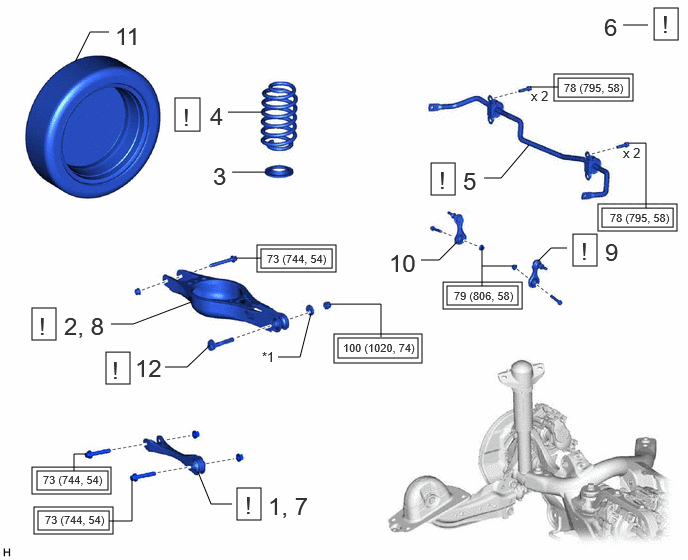

Fig 1: Rear Lower Arm (For AWD RH Side) Installation Components With Torque Specifications (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout - Procedure		Part Name Code
1	TEMPORARILY INSTALL REAR NO. 1 SUSPENSION ARM ASSEMBLY RH	48710A	See step 1	-	-
2	TEMPORARILY INSTALL REAR NO. 2 SUSPENSION ARM ASSEMBLY RH	48730F	See step 2	-	-
3	REAR LOWER COIL SPRING INSULATOR RH	48258B	-	-	-
4	REAR COIL SPRING RH	48231A	See step 4	-	-
5	REAR STABILIZER BAR	48812	See step 5	-	-
6	STABILIZE SUSPENSION	-	See step 6	-	-
7	INSTALL REAR NO. 1 SUSPENSION ARM ASSEMBLY RH	48710A	See step 7	-	-
8	INSTALL REAR NO. 2 SUSPENSION ARM ASSEMBLY RH	48730F	See step 8	-	-
9	REAR STABILIZER LINK ASSEMBLY LH	48840A	See step 9	-	-
10	REAR STABILIZER LINK ASSEMBLY RH	48830D	-	-	-
11	REAR WHEEL	-	-	-	-
12	REAR SUSPENSION TOE ADJUST CAM SUB-ASSEMBLY	48409	See step 12	-	-

*1	NO. 2 CAMBER ADJUST CAM	-	-
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": Nm (kgfcm, ft.*lbf)	-	-

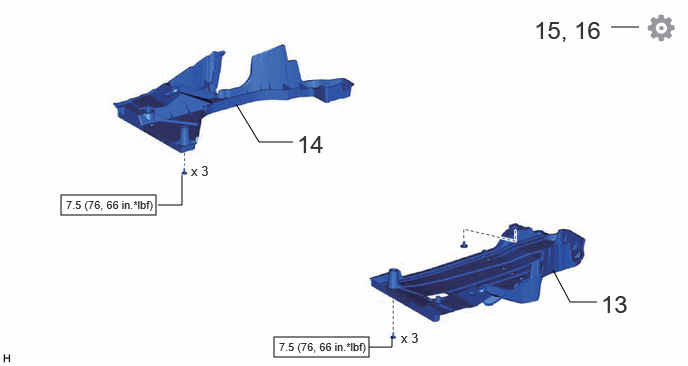

Fig 2: Rear Lower Arm (For AWD RH Side) Installation Components With Torque Specifications (2 Of 2)

Callout - Procedure		Part Name Code
13	REAR FLOOR SIDE MEMBER COVER LH	57628E	-	-	-
14	REAR FLOOR SIDE MEMBER COVER RH	57627G	-	-	-
15	INSPECT AND ADJUST REAR WHEEL ALIGNMENT	-	-	-	See step 15
16	PERFORM INITIALIZATION	-	-	-	See step 16

N*m (kgf*cm, ft.*lbf): Specified torque
