Caution / Notice / Hint

COMPONENTS (INSTALLATION)

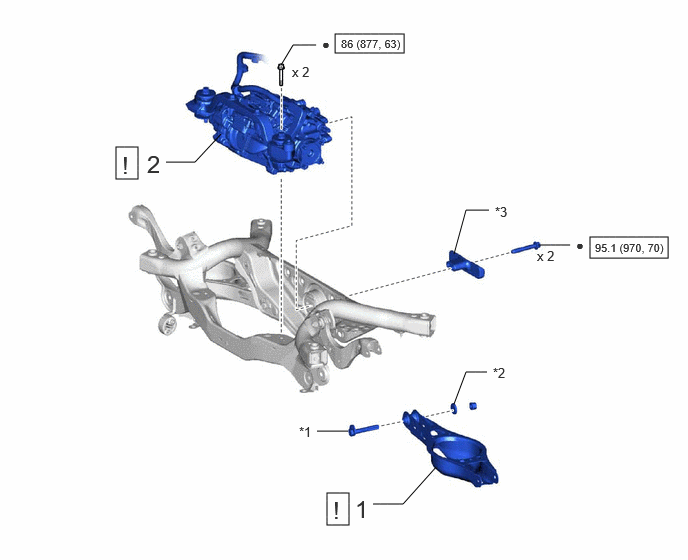

Fig 1: Rear Lower Arm (For AWD LH Side) Installation Components With Torque Specifications (1 Of 11)
GTY1207189Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout - Procedure Part Name Code
1 TEMPORARILY INSTALL REAR NO. 2 SUSPENSION ARM ASSEMBLY 48740F See step  1 - -
2 REAR TRACTION MOTOR WITH TRANSAXLE ASSEMBLY G1050 See step  2 - -
*1 REAR SUSPENSION TOE ADJUST CAM SUB-ASSEMBLY *2 NO. 2 CAMBER ADJUST CAM
*3 DIFFERENTIAL MASS DAMPER - -
N*m (kgf*cm, ft.*lbf): Specified torque • Non-reusable part

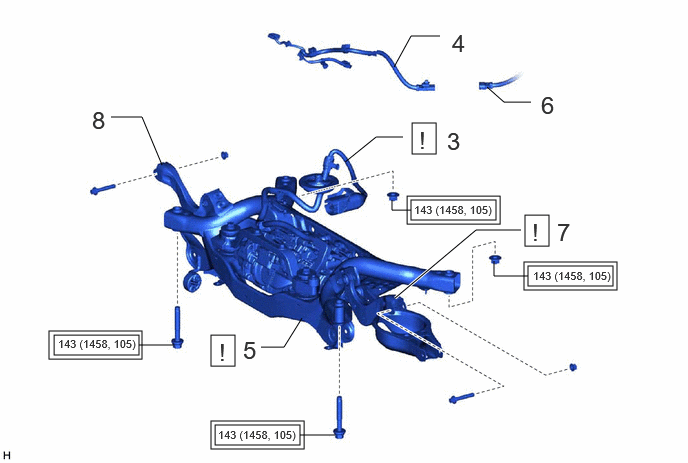

Fig 2: Rear Lower Arm (For AWD LH Side) Installation Components With Torque Specifications (2 Of 11)
GTY1152741Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout - Procedure Part Name Code
3 REAR TRACTION MOTOR CABLE G1149 See step  3 - -
4 NO. 6 FLOOR WIRE 82169A - - -
5 REAR SUSPENSION MEMBER SUB-ASSEMBLY 51206A See step  5 - -
6 FRAME WIRE - - - -
7 REAR UPPER CONTROL ARM ASSEMBLY LH 48790 See step  7 - -
8 REAR UPPER CONTROL ARM ASSEMBLY RH 48770A - - -
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) - -

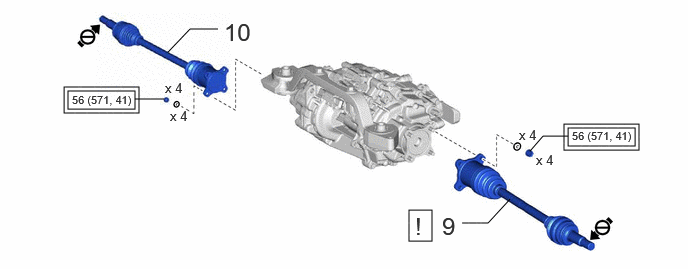

Fig 3: Rear Lower Arm (For AWD LH Side) Installation Components With Torque Specifications (3 Of 11)
GTY1153955Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout - Procedure Part Name Code
9 REAR DRIVE SHAFT ASSEMBLY LH 42340B See step  9 - -
10 REAR DRIVE SHAFT ASSEMBLY RH 42330 - - -
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) Do not apply lubricants to the threaded parts

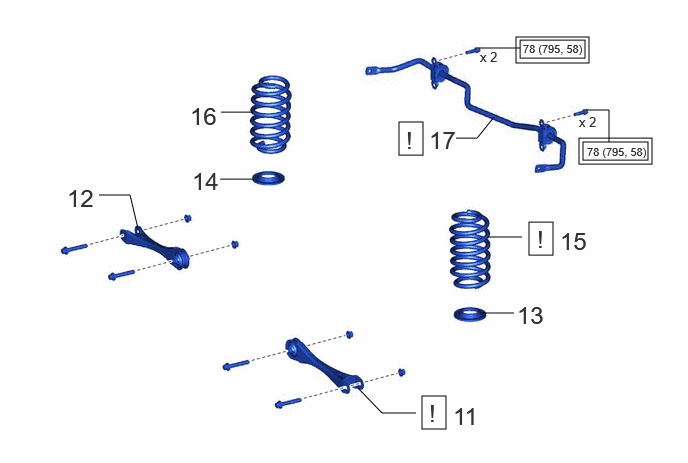

Fig 4: Rear Lower Arm (For AWD LH Side) Installation Components With Torque Specifications (4 Of 11)
GTY1145636Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout - Procedure Part Name Code
11 REAR NO. 1 SUSPENSION ARM ASSEMBLY LH 48720A See step  11 - -
12 REAR NO. 1 SUSPENSION ARM ASSEMBLY RH 48710A - - -
13 REAR LOWER COIL SPRING INSULATOR LH 48258C - - -
14 REAR LOWER COIL SPRING INSULATOR RH 48258B - - -
15 REAR COIL SPRING LH 48231B See step  15 - -
16 REAR COIL SPRING RH 48231A - - -
17 REAR STABILIZER BAR 48812 See step  17 - -
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) - -

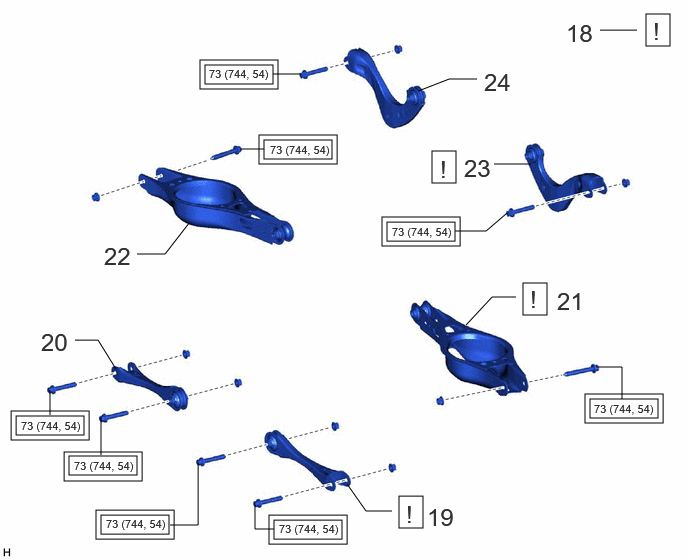

Fig 5: Rear Lower Arm (For AWD LH Side) Installation Components With Torque Specifications (5 Of 11)
GTY1138553Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout - Procedure Part Name Code
18 STABILIZE SUSPENSION - See step  18 - -
19 REAR NO. 1 SUSPENSION ARM ASSEMBLY LH 48720A See step  19 - -
20 REAR NO. 1 SUSPENSION ARM ASSEMBLY RH 48710A - - -
21 REAR NO. 2 SUSPENSION ARM ASSEMBLY LH 48740F See step  21 - -
22 REAR NO. 2 SUSPENSION ARM ASSEMBLY RH 48730F - - -
23 REAR UPPER CONTROL ARM ASSEMBLY LH 48790 See step  23 - -
24 REAR UPPER CONTROL ARM ASSEMBLY RH 48770A - - -
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) - -

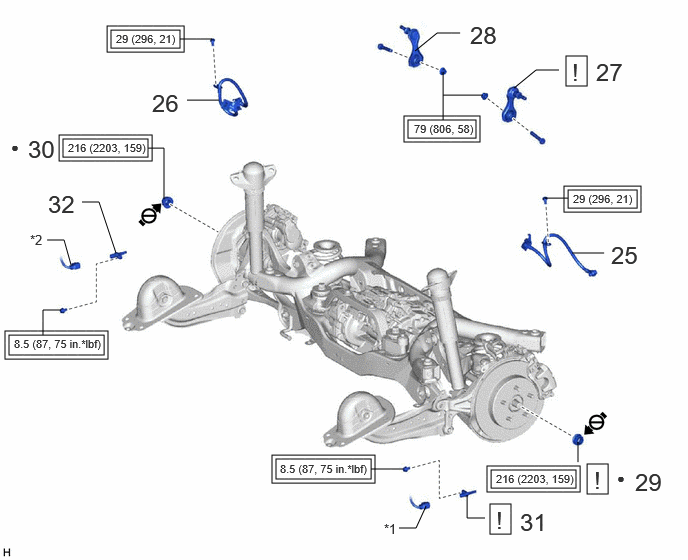

Fig 6: Rear Lower Arm (For AWD LH Side) Installation Components With Torque Specifications (6 Of 11)
GTY1207231Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout - Procedure Part Name Code
25 REAR FLEXIBLE HOSE LH 47319F - - -
26 REAR FLEXIBLE HOSE RH 47318F - - -
27 REAR STABILIZER LINK ASSEMBLY LH 48840A See step  27 - -
28 REAR STABILIZER LINK ASSEMBLY RH 48830D - - -
29 REAR AXLE SHAFT NUT (for LH Side) 42312B See step  29 - -
30 REAR AXLE SHAFT NUT (for RH Side) 42312B - - -
31 REAR SKID CONTROL SENSOR LH 89544E See step  31 - -
32 REAR SKID CONTROL SENSOR RH 89544D - - -
*1 NO. 2 PARKING BRAKE WIRE ASSEMBLY *2 NO. 1 PARKING BRAKE WIRE ASSEMBLY
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) Do not apply lubricants to the threaded parts
• Non-reusable part - -

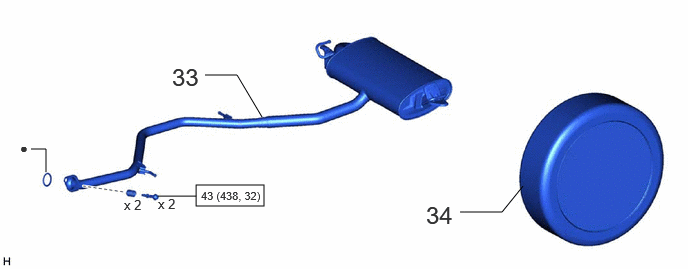

Fig 7: Rear Lower Arm (For AWD LH Side) Installation Components With Torque Specifications (7 Of 11)
GTY1157888Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout - Procedure Part Name Code
33 TAIL EXHAUST PIPE ASSEMBLY 17430 - - -
34 REAR WHEEL - - - -
N*m (kgf*cm, ft.*lbf): Specified torque • Non-reusable part

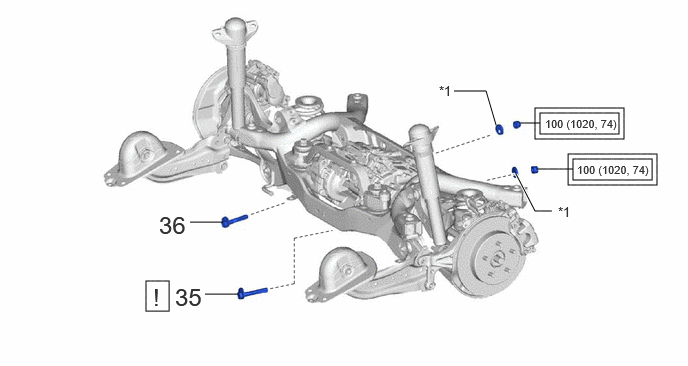

Fig 8: Rear Lower Arm (For AWD LH Side) Installation Components With Torque Specifications (8 Of 11)
GTY1148565Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout - Procedure Part Name Code
35 REAR SUSPENSION TOE ADJUST CAM SUB-ASSEMBLY (for LH Side) 48409 See step  35 - -
36 REAR SUSPENSION TOE ADJUST CAM SUB-ASSEMBLY (for RH Side) 48409 - - -
*1 NO. 2 CAMBER ADJUST CAM - -
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) - -

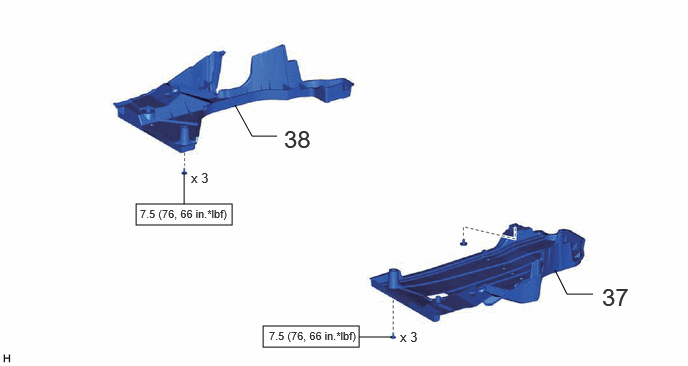

Fig 9: Rear Lower Arm (For AWD LH Side) Installation Components With Torque Specifications (9 Of 11)
GTY1150099Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout - Procedure Part Name Code
37 REAR FLOOR SIDE MEMBER COVER LH 57628E - - -
38 REAR FLOOR SIDE MEMBER COVER RH 57627G - - -
N*m (kgf*cm, ft.*lbf): Specified torque - -

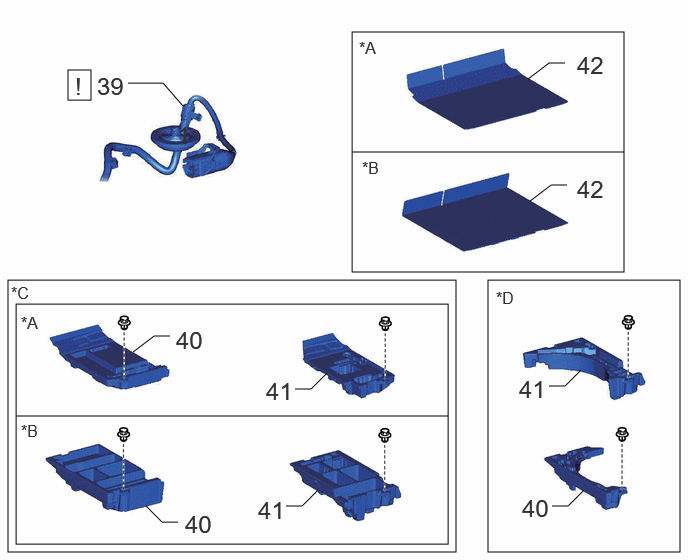

Fig 10: Rear Lower Arm (For AWD LH Side) Installation Components (10 Of 11)
GTY1146695Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout - Procedure Part Name Code
39 REAR TRACTION MOTOR CABLE G1149 See step  39 - -
40 DECK FLOOR BOX LH 64997 - - -
41 DECK FLOOR BOX RH 64995 - - -
42 DECK BOARD ASSEMBLY 58410B - - -
*A for Type A *B for Type B
*C w/o Spare Tire *D w/ Spare Tire

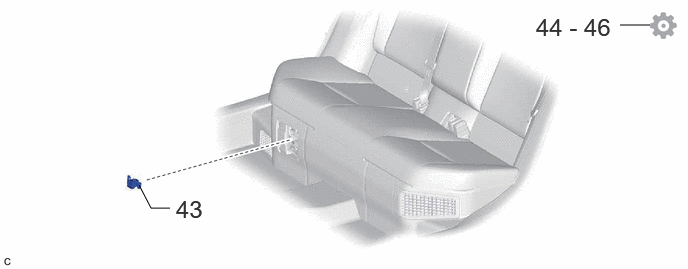

Fig 11: Rear Lower Arm (For AWD LH Side) Installation Components (11 Of 11)
GTY1139849Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout - Procedure Part Name Code
43 SERVICE PLUG GRIP G3834 - - -
44 INSPECT FOR EXHAUST GAS LEAK - - - See step  44
45 INSPECT AND ADJUST REAR WHEEL ALIGNMENT - - - See step  45
46 PERFORM INITIALIZATION - - - See step  46
