Removal [12/2022 - 03/2023]: Procedure

  1. PRECAUTION
    Refer to PRECAUTION [12/2022 - ]

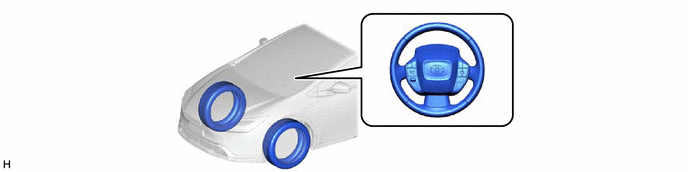

  2. ALIGN FRONT WHEELS FACING STRAIGHT AHEAD
    1. GTY1148367Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE STEERING WHEEL ASSEMBLY

    Refer to REMOVAL [12/2022 - 03/2023]

  4. REMOVE LOWER STEERING COLUMN COVER
    NOTE:

    Removing the lower steering column cover in the incorrect order will cause the parts to break.

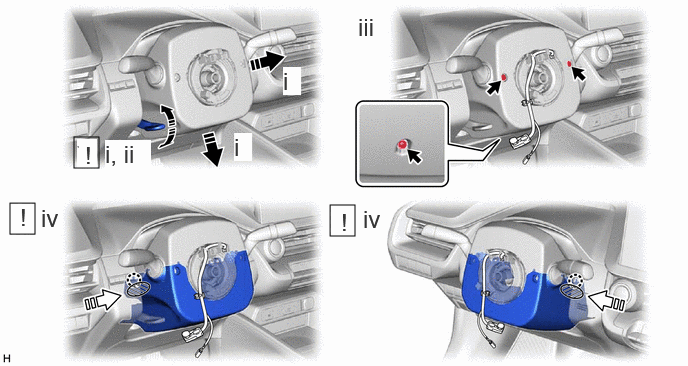

    1. GTY1151269Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Push Area Operate in this direction
      Push in this direction - -
      1. Release the tilt and telescopic lever and fully extend and lower the steering column assembly.
      2. Lock the tilt and telescopic lever.
      3. Remove the 3 screws.
      4. While pressing the push area shown in the illustration to disengage the 2 claws, slightly lower the lower steering column cover.
  5. REMOVE UPPER STEERING COLUMN COVER

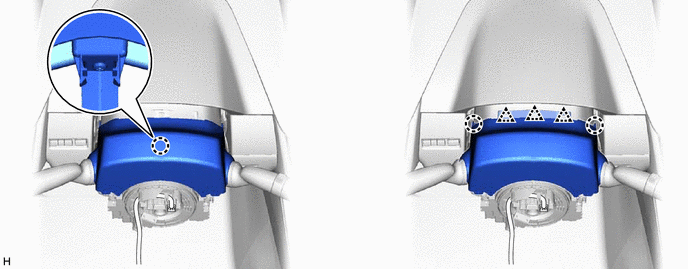

    1. GTY1148365Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE TURN SIGNAL SWITCH ASSEMBLY WITH SPIRAL CABLE SUB-ASSEMBLY
    NOTE:
    • Do not remove/install the spiral cable with sensor sub-assembly with the auxiliary battery connected and the ignition switch ON.
    • Do not rotate the spiral cable with sensor sub-assembly without the steering wheel assembly installed, with the auxiliary battery connected and the ignition switch ON.
    • Ensure that the steering wheel assembly is installed and aligned straight when inspecting the steering sensor.
    HINT: As the illustration shown is an example, the actual details may differ.

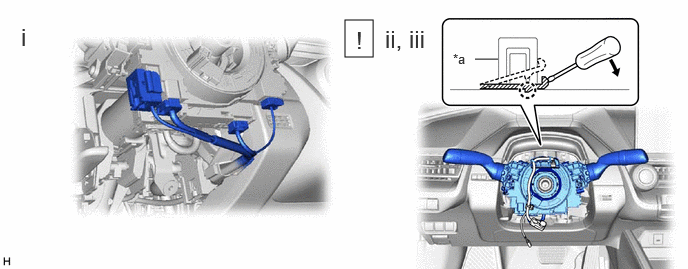

    1. GTY1156026Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Clamp - -
      1. Disconnect each connector from the turn signal switch assembly with spiral cable sub-assembly.
      2. Using pliers, expand the clamp.
      3. While holding the clamp expanded, raise the claw using a screwdriver to disengage it, and then remove the turn signal switch assembly with spiral cable sub-assembly from the steering column assembly.
  7. REMOVE FRONT DOOR SCUFF PLATE LH

    Refer to PROCEDURE - Step 10

  8. REMOVE COWL SIDE TRIM BOARD LH

    Refer to PROCEDURE - Step 11

  9. REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 4

  10. REMOVE LOWER CENTER INSTRUMENT PANEL FINISH PANEL

    Refer to PROCEDURE - Step 5

  11. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL ASSEMBLY

    Refer to PROCEDURE - Step 14

  12. REMOVE LOWER NO. 1 INSTRUMENT PANEL AIRBAG ASSEMBLY (w/ Knee Airbag)
    Refer to PROCEDURE - Step 8

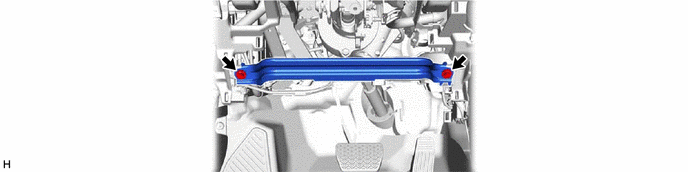

  13. REMOVE NO. 2 KNEE PROTECTOR BRACKET (w/o Knee Airbag)
    1. GTY1148495Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. REMOVE FRONT NO. 1 CONSOLE BOX INSERT

    Refer to PROCEDURE - Step 9

  15. REMOVE NO. 1 AIR DUCT
    NOTE:

    Be careful not to deform or damage the lower heater case of the air conditioner unit assembly when removing the No. 1 air duct.

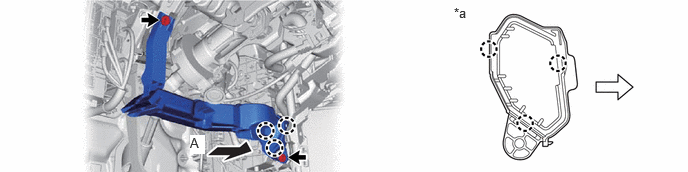

    1. GTY1146396Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a View A - -
      Front - -
  16. REMOVE COLUMN HOLE COVER SILENCER SHEET

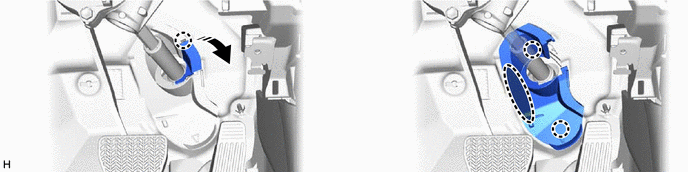

    1. GTY1152238Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Open in this direction Place Hand Here
  17. SEPARATE NO. 2 STEERING INTERMEDIATE SHAFT ASSEMBLY

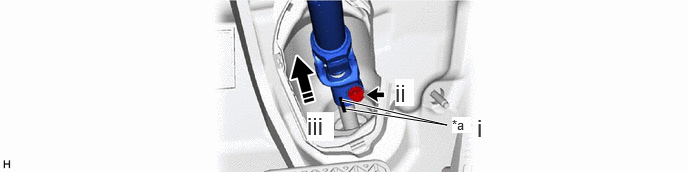

    1. GTY1148581Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Matchmark - -
      Separate in this direction - -
      1. Put matchmarks on the No. 2 steering intermediate shaft assembly and steering gear assembly.
      2. Remove the bolt.
      3. Separate the No. 2 steering intermediate shaft assembly from the steering gear assembly.
  18. REMOVE NO. 2 STEERING INTERMEDIATE SHAFT ASSEMBLY

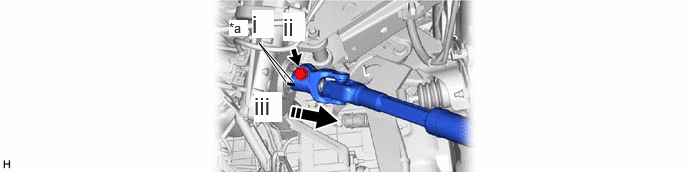

    1. GTY1157980Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Matchmark - -
      Remove in this direction - -
      1. Put matchmarks on the No. 2 steering intermediate shaft assembly and steering column assembly.
      2. Remove the bolt.
      3. Remove the No. 2 steering intermediate shaft assembly from the steering column assembly.
  19. REMOVE STEERING COLUMN ASSEMBLY
    HINT:
    As the illustration shown is an example, the actual details may differ.

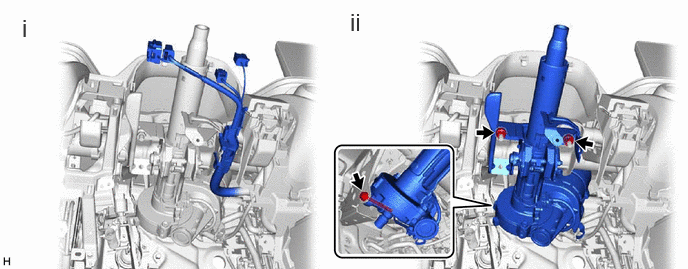

    1. GTY1156852Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Disconnect each connector and disengage each wire harness clamp from the steering column assembly.
      2. Remove the bolt, 2 nuts and steering column assembly.
