Removal [12/2022 - 03/2023]: Procedure

  1. PRECAUTION
    WARNING:
    • Be sure to read Precaution thoroughly before servicing.
      GTY607029Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Refer to PRECAUTION [12/2022 - ]

    • Wear protective gloves. Sharp areas on the parts may injure your hands.
    NOTE:

    After the ignition switch is turned off, there may be a waiting time before disconnecting the negative (-) auxiliary battery terminal.

    Refer to BEFORE DISCONNECTING BATTERY [12/2022 - ]
  2. REMOVE TONNEAU COVER ASSEMBLY

    Refer to PROCEDURE - Step 1

  3. REMOVE DECK BOARD ASSEMBLY

    Refer to PROCEDURE - Step 2

  4. REMOVE DECK FLOOR BOX LH

    Refer to PROCEDURE - Step 4

  5. REMOVE DECK FLOOR BOX RH

    Refer to PROCEDURE - Step 3

  6. REMOVE BATTERY SERVICE HOLE COVER ASSEMBLY (w/ Battery Cover)

    Refer to PROCEDURE - Step 5

  7. DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL
    WARNING:

    Wait at least 60 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.

    GTY684647Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. for M20A-FXS:

      Refer to PROCEDURE - Step 3

    2. for 2ZR-FXE:

      Refer to PROCEDURE - Step 2

  8. REMOVE REAR SEAT ASSEMBLY

    Refer to REMOVAL [12/2022 - 03/2023]

  9. REMOVE REAR DOOR SCUFF PLATE INSIDE

    Refer to PROCEDURE - Step 14

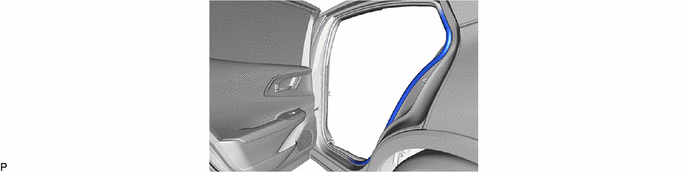

  10. DISCONNECT REAR DOOR OPENING TRIM WEATHERSTRIP
    1. GTY1139974Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. REMOVE REAR UNDER SIDE COVER

    Refer to PROCEDURE - Step 16

  12. REMOVE REAR SEATBACK HINGE SUB-ASSEMBLY

    Refer to PROCEDURE - Step 32

  13. REMOVE REAR SEAT SIDE GARNISH
    Refer to PROCEDURE - Step 33
  14. REMOVE LUGGAGE HOLD BELT STRIKER ASSEMBLY

    Refer to PROCEDURE - Step 35

  15. REMOVE REAR DECK TRIM COVER

    Refer to PROCEDURE - Step 36

  16. REMOVE LUGGAGE HOLD BELT STRIKER ASSEMBLY (for LH Side)

    Refer to PROCEDURE - Step 34

  17. REMOVE DECK TRIM SIDE PANEL ASSEMBLY LH (for LH Side)
    Refer to PROCEDURE - Step 37
  18. REMOVE NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY (for RH Side)
    Refer to PROCEDURE - Step 1
  19. REMOVE LUGGAGE HOLD BELT STRIKER ASSEMBLY (for RH Side)

    Refer to PROCEDURE - Step 41

  20. REMOVE DECK TRIM SIDE PANEL ASSEMBLY RH (for RH Side)
    Refer to PROCEDURE - Step 43
  21. REMOVE ROOF SIDE INNER GARNISH ASSEMBLY

    Refer to PROCEDURE - Step 38

  22. REMOVE REAR SEAT OUTER BELT ASSEMBLY

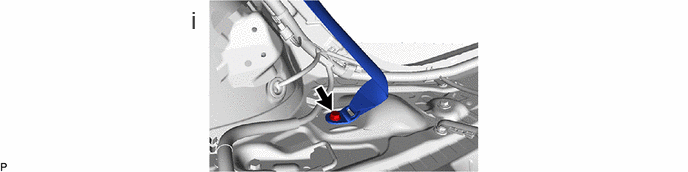

    1. GTY1158845Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Remove the bolt to disconnect the floor anchor of the rear seat outer belt assembly.

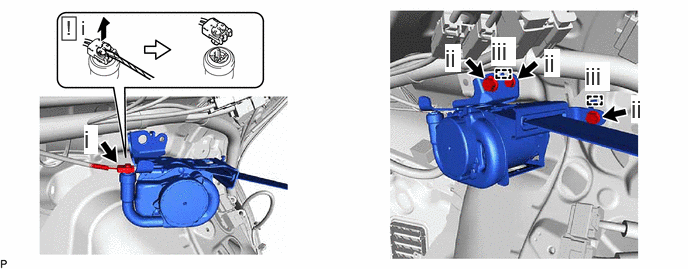

    2. GTY1141951Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Using a screwdriver, pull out the locking button as shown in the illustration to release the lock and disconnect the pretensioner connector.
      2. Remove the 3 bolts.
      3. Disengage the 2 guides to remove the rear seat outer belt assembly.
